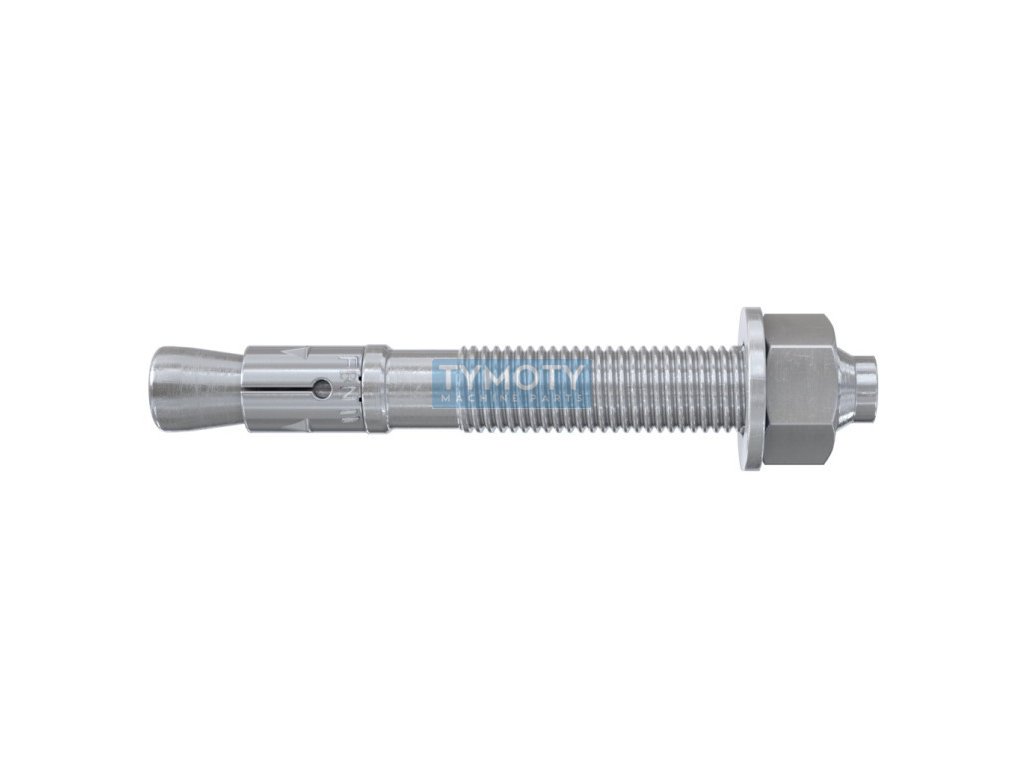

fischer FBN II 20/10/142 K short bolt anchor, galvanized steel
Code: 882189
Product detailed description
Single-cone steel anchor, galvanized, with washer and nut. Suitable for anchoring structures, columns, machines, railings, etc. in concrete without cracks and stone.Additional parameters
| Category: | Fasteners > anchors > through-hole KPO |
|---|---|
| Weight: | 0.375 kg |
| EAN: | 4006209455777 |

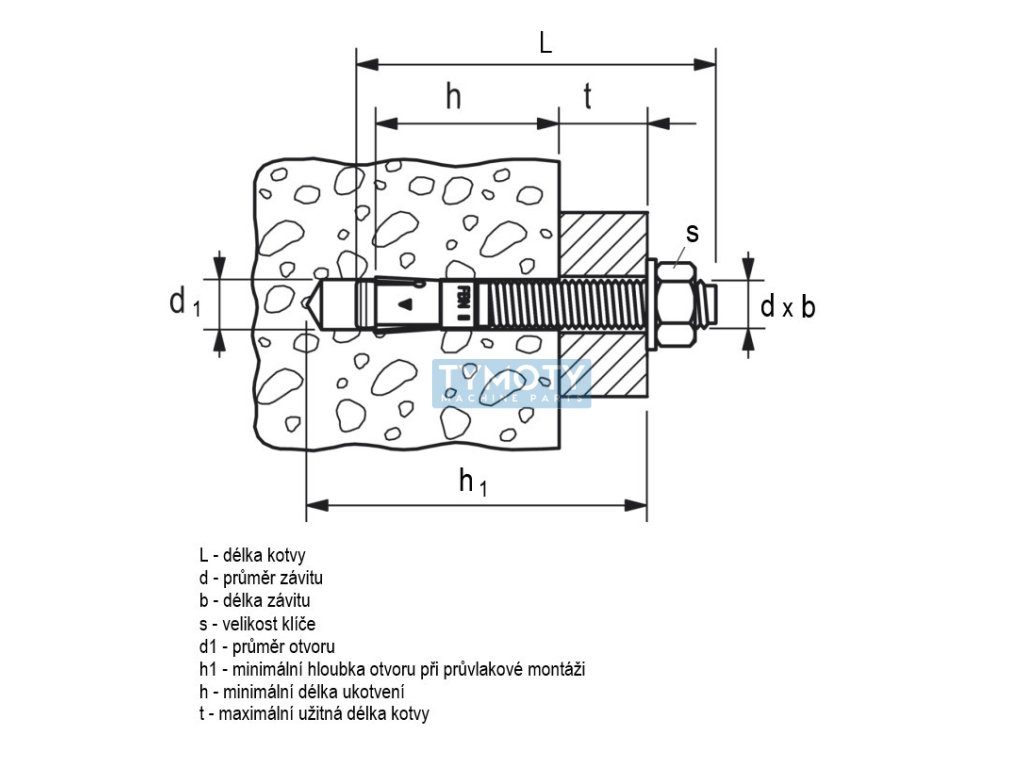

| Diameter D (mm): | M20 |
| Diameter d1 (mm): | 20 |
| Height H (mm): | 80 |
| Height H1 (mm): | 120 |
| Length L (mm): | 142 |
| Manufacturer's brand: | fischer |
| Material: | steel |
| Spacing t (mm): | 10 |
| Surface finish: | zinc white |
| Thread length b (mm): | 50 |
| Thread type: | metric |
| Width s (mm): | 30 |
