fischer FBN II 16/140/260 bolt anchor, galvanized steel
Code: 882131
Product detailed description

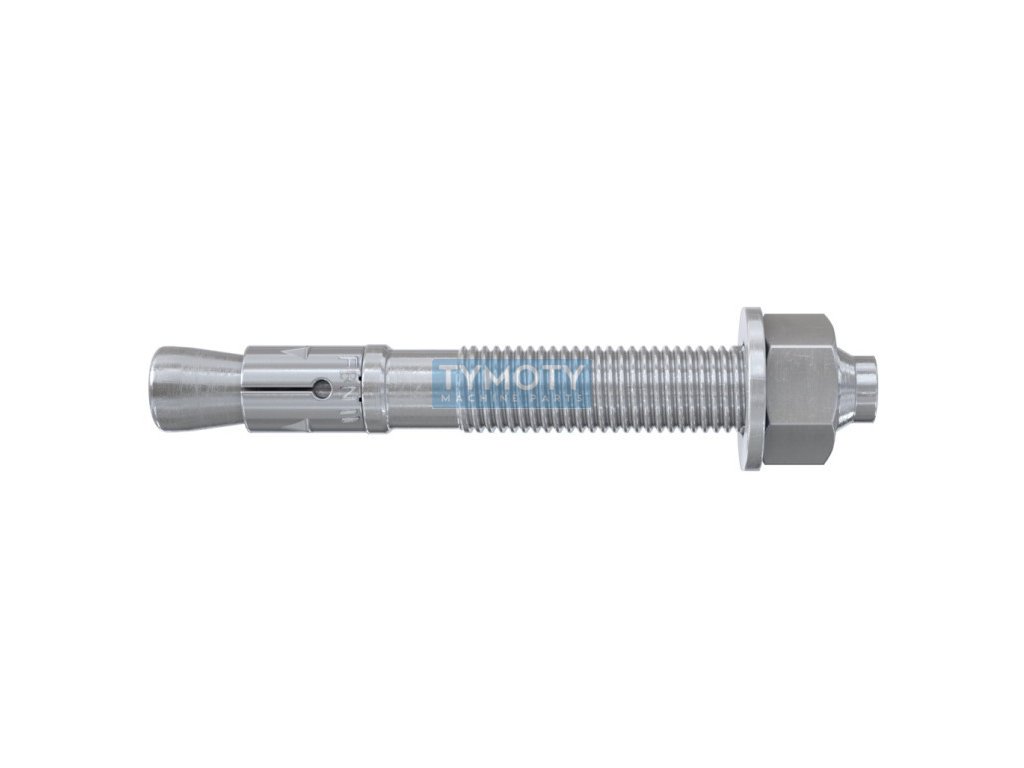

Single-cone steel anchor, galvanized, with washer and nut. Suitable for anchoring structures, columns, machines, railings, etc. in concrete without cracks and stone.Additional parameters
| Category: | Fasteners > anchors > through-hole KPO |
|---|---|
| Weight: | 0.385 kg |
| EAN: | 4006209455685 |

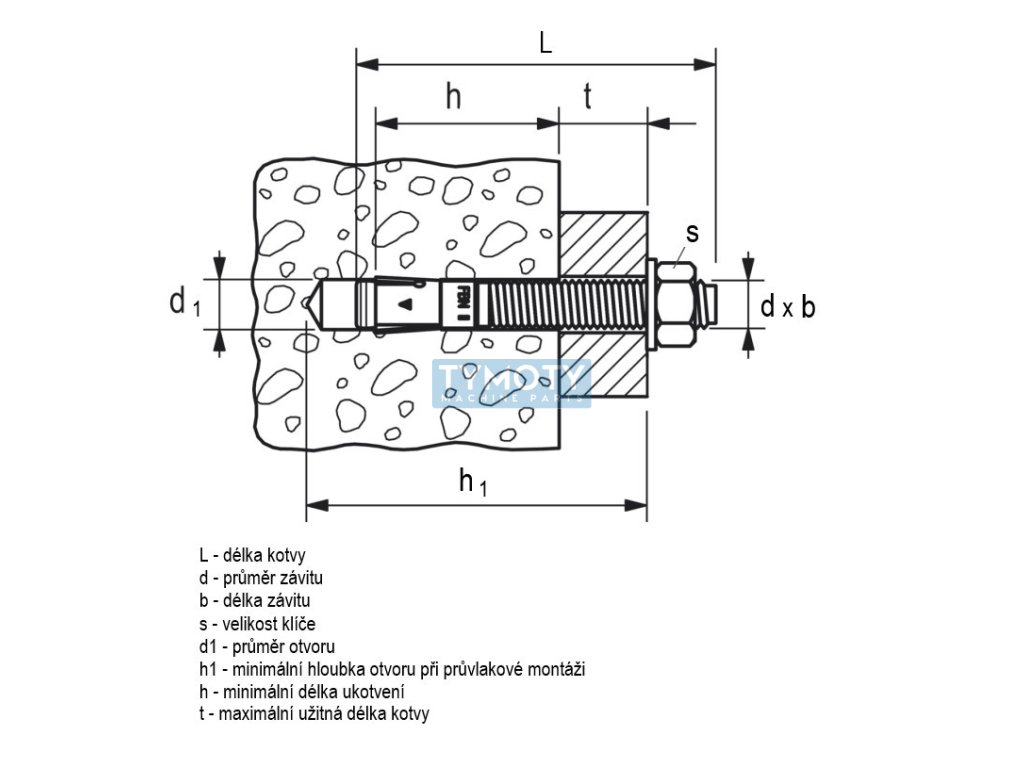

| Diameter D (mm): | M16 |
| Diameter d1 (mm): | 16 |
| Height H (mm): | 80 |
| Height H1 (mm): | 244 |
| Length L (mm): | 260 |
| Manufacturer's brand: | fischer |
| Material: | steel |
| Spacing t (mm): | 155 |
| Surface finish: | zinc white |
| Thread length b (mm): | 184 |
| Thread type: | metric |
| Width s (mm): | 24 |
