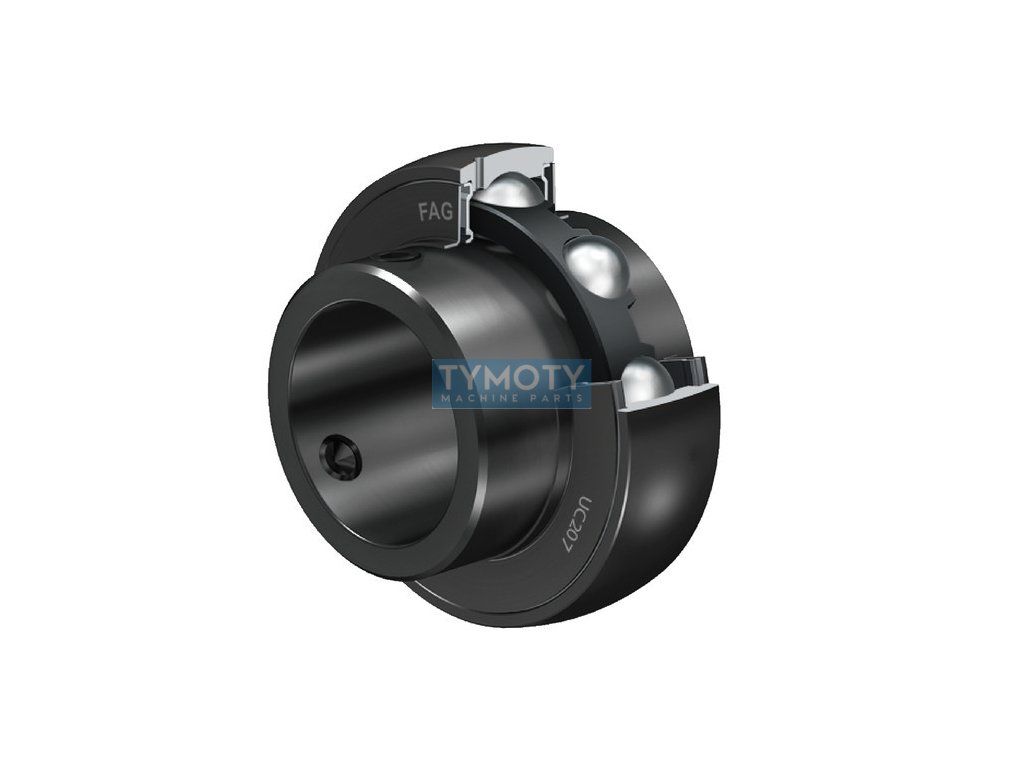

FAG UC 207 clamping bearing

Product detailed description

FAG UC 207 is a clamping bearing that is part of the radial ball bearing category. This bearing is designed for applications requiring reliable and precise mounting on the shaft. Its inner diameter is 35 mm, outer diameter is 72 mm and total width is 42.9 mm, while the width of the inner part is 20 mm. The bearing is made of high-quality steel, which guarantees its durability and long service life in various operating conditions.

The outer ring of the bearing has a spherical shape, which allows for compensation of misalignment between the bearing and the bearing housing. The hole profile is cylindrical, which is a standard solution for this type of bearing. The inner ring is widened on both sides, which improves stability and allows better load distribution. The shaft is secured using set screws, which allows for easy assembly and disassembly.

The bearing is equipped with a polyamide cage, which is lightweight and wear-resistant. It also includes a double-sided anti-friction seal that protects the internal parts of the bearing from dust and dirt, thus extending its service life. The bearing is capable of operating in a temperature range from -20 °C to +100 °C, and can withstand temperatures up to +120 °C for a short time.

The running accuracy is in class P0/PN, which corresponds to ABEC 1, and is suitable for applications where extreme accuracy requirements are not imposed. The bearing is designed with the possibility of lubrication, which allows maintaining optimal lubrication conditions throughout its service life. The total weight of the bearing is 0.475 kg, which is appropriate for its dimensions and design.

FAG UC 207 is an ideal solution for various industrial applications where reliability and easy maintenance are required. Its design features and material composition guarantee high resistance to corrosion and wear, which is important for long-term operation in demanding conditions.
