FAG QJ 207-XL-MPA-C3 four-point bearing

Product detailed description

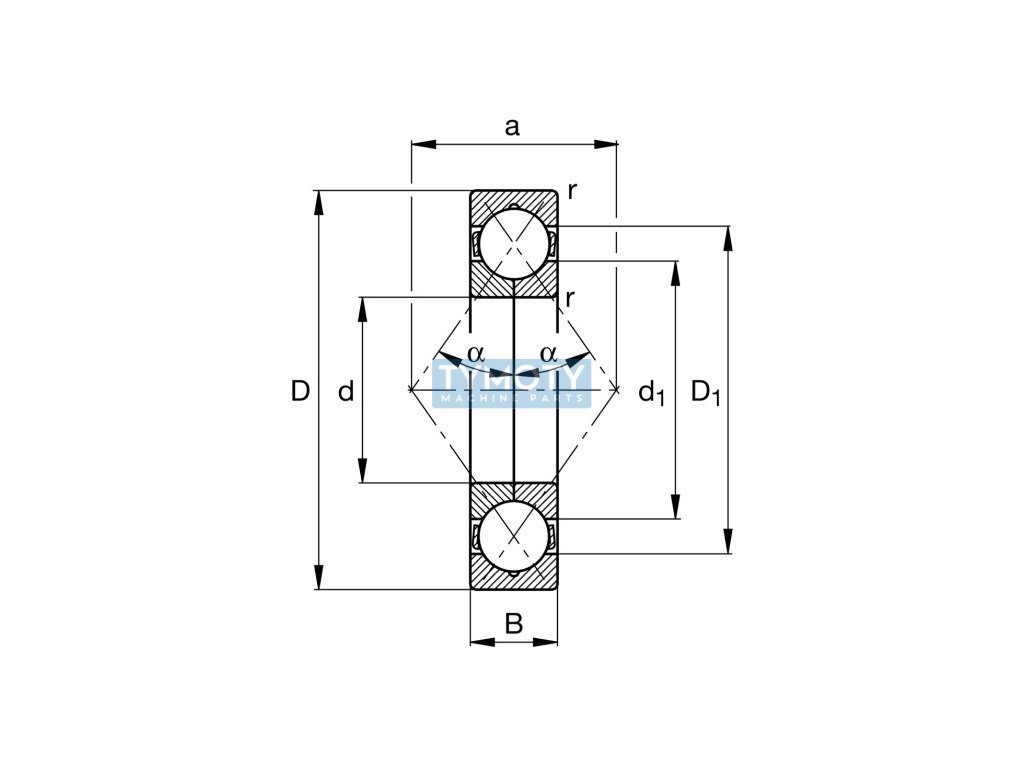

The FAG QJ 207-XL-MPA-C3 four-point bearing is precisely designed for applications where it is necessary to effectively transfer axial loads in both directions along with radial loads. This bearing has an inner diameter of 35 mm, an outer diameter of 72 mm and a width of 17 mm, making it suitable for a wide range of industrial applications.

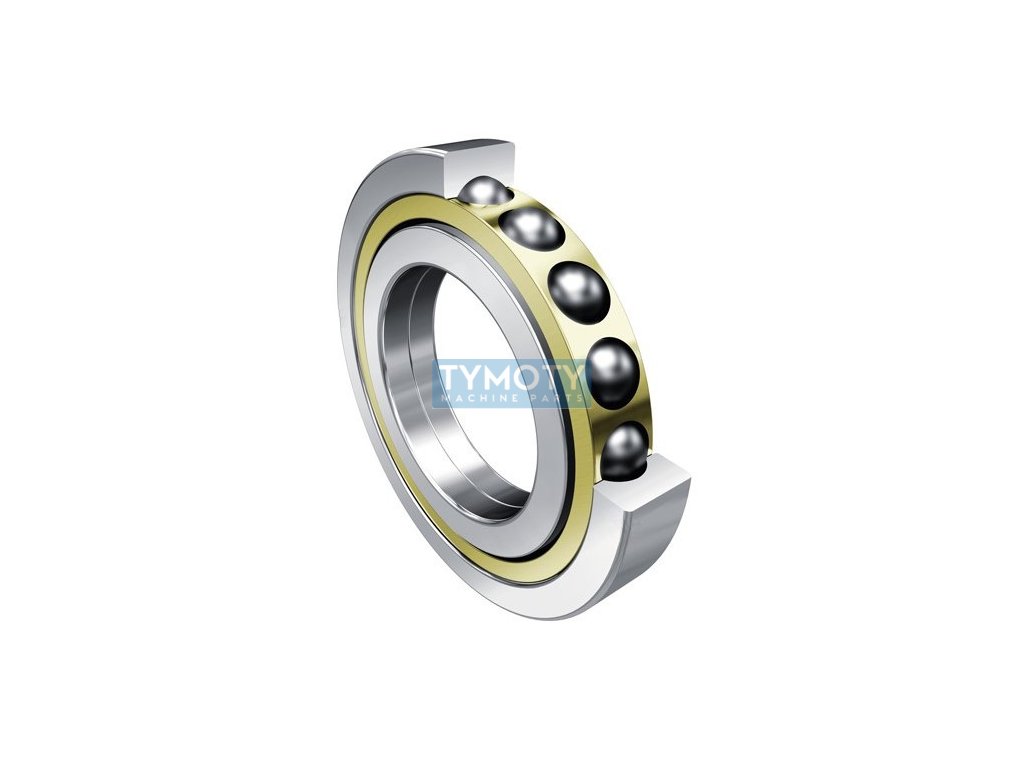

The bearing design includes a split inner ring, which allows for easier mounting and dismounting. The bearing is equipped with a brass cage, which ensures high wear resistance and stability at high speeds. The bearing is uncovered, i.e. without a seal, which means that it is necessary to ensure proper lubrication and protection against impurities in the operating environment.

The temperature range of the bearing is from -30 °C to +150 °C, which allows it to be used in various climatic conditions. The bearing has a slightly increased radial clearance C3, which is suitable for applications with higher thermal expansion or where more clearance is required to compensate for mounting tolerances.

The running accuracy of the bearing is in class P0/PN, which corresponds to the ABEC 1 standard, and is suitable for general industrial use where extremely high accuracies are not required. The bearing does not contain grooves in the outer ring, which simplifies its design and reduces maintenance costs.

With a weight of 0.35 kg, this bearing is lightweight, which contributes to reducing the overall weight of the equipment into which it is integrated. The manufacturer FAG, part of the Schaeffler Group, is known for its high quality and reliability, which guarantees a long service life and optimal performance of the bearing in difficult conditions.
