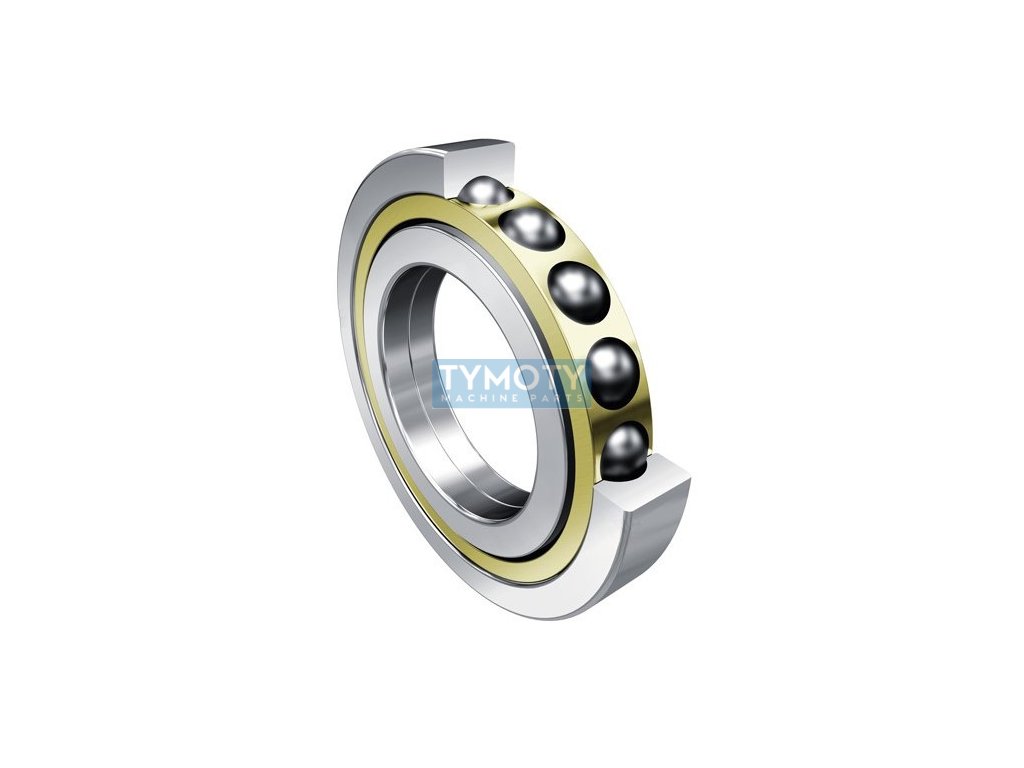

FAG QJ 205-XL-MPA four-point bearing

Product detailed description

The FAG QJ 205-XL-MPA four-point bearing is a high-quality component designed for applications where combined loads, i.e. axial and radial forces, need to be transmitted. This bearing has an inner diameter of 25 mm, an outer diameter of 52 mm and a width of 15 mm, which makes it ideal for use in compact mechanical assemblies.

The bearing is designed with a split inner ring, which allows for easier assembly and disassembly. The four-point contact between the balls and raceways ensures effective transmission of axial forces in both directions. The bearing is seal-free, which means it is suitable for applications where protection against contamination is not required or where external lubrication is provided.

The bearing cage is made of brass, which provides high wear resistance and improves the overall service life of the bearing. The bearing operates in a temperature range from -30 °C to +150 °C, which allows it to be used in various industrial conditions. The running accuracy is in class P0/PN, which corresponds to normal accuracy according to the ABEC 1 standard.

The normal radial clearance ensures optimal operation under normal load and temperature conditions. The bearing is without grooves in the outer ring, which is suitable for applications where additional fasteners are not required. With a weight of 0.16 kg, this component is lightweight, which contributes to reducing the overall weight of the assembly in which it is used.

The manufacturer FAG, part of the Schaeffler Group, is known for its precision and quality, which guarantees reliability and long service life of the bearing in various industrial applications.
