FAG NJ 2313-E-XL-TVP2-C3 roller bearing

Product detailed description

The FAG NJ 2313-E-XL-TVP2-C3 cylindrical roller bearing is a high-quality component designed for applications requiring reliable support of axial displacement. This single-row bearing is designed with a cylindrical bore and is equipped with a polyamide cage, which ensures optimal operation at temperatures ranging from -30 °C to +120 °C.

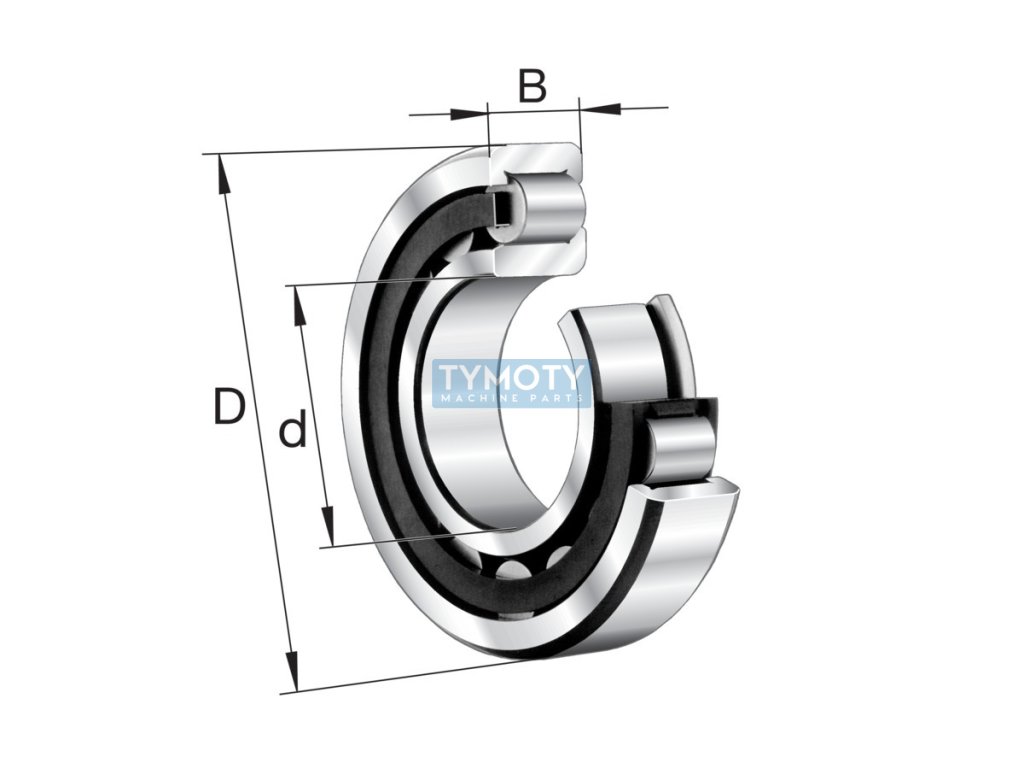

The bearing has an inner diameter of 65 mm, an outer diameter of 140 mm and a width of 48 mm, with a total weight of 3.37 kg. It is characterized by a slightly increased radial clearance C3, which allows better adaptability to thermal expansion and higher speeds. The inner ring is removable, which facilitates assembly and maintenance.

The outer ring of the bearing is without a groove or lubrication hole, which reduces the risk of contamination and increases the life of the bearing. The bearing is not equipped with a seal, which means that it is suitable for applications where external lubrication is provided.

This component falls into the accuracy class P0/PN, or ABEC 1, which guarantees standard running accuracy. The bearing is not insulated against the passage of electric current, which is important to consider when using it in electrical equipment.

FAG NJ 2313-E-XL-TVP2-C3 is an ideal solution for applications where high load capacity and reliability are required while maintaining accuracy and stability in various operating conditions.
