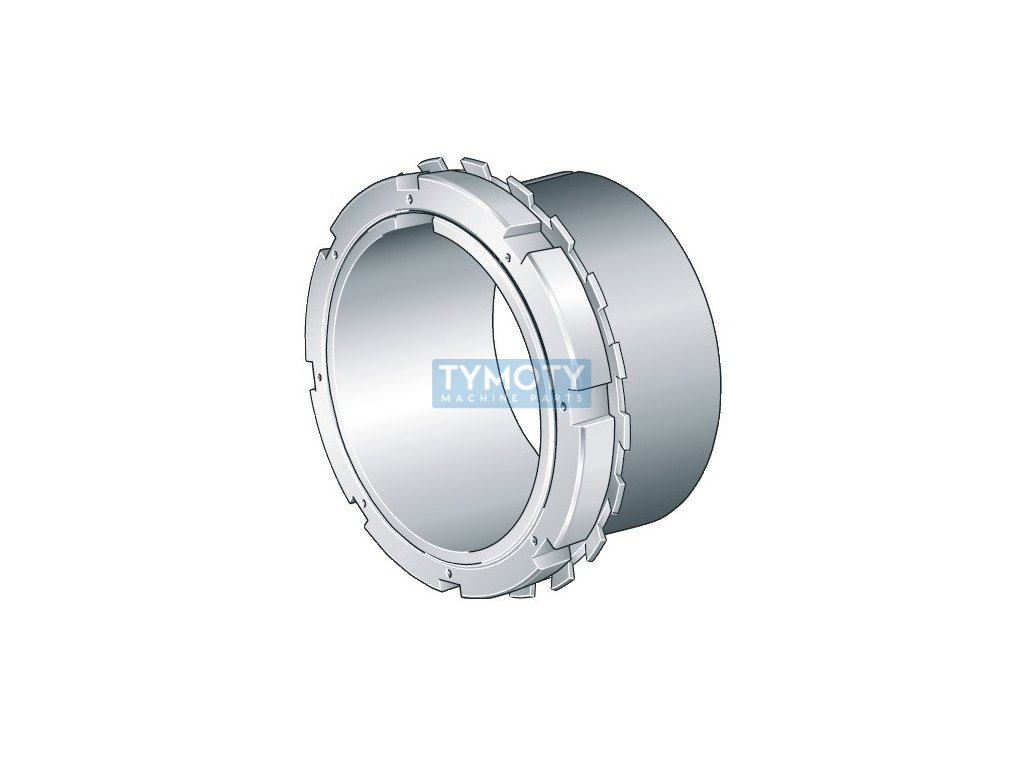

FAG H 311 clamping sleeve

Product detailed description

FAG H 311 is an adapter sleeve designed for mounting rolling bearings with a tapered bore on cylindrical shafts. This component is designed for metric shafts and is equipped with a taper with a ratio of 1:12, which allows for precise and secure bearing seating. The sleeve has an inner diameter of 50 mm, an outer diameter of 75 mm and a width of 45 mm, which ensures compatibility with various types of bearings and applications.

The sleeve design is in a standard design, which simplifies its integration into existing systems. Assembly and disassembly are easy, which saves time during maintenance and replacement of bearings. The delivery also includes a lock plate and nut, which ensure a firm fit and prevent unwanted movement of the bearing during operation.

FAG H 311 is a product of the renowned FAG brand, which is known for its quality and reliability in the field of bearings and related components. Weighing 0.33 kg, the housing is robust enough to withstand normal operating loads, while its compact dimensions allow it to be used in space-constrained applications. This adapter is ideal for applications where precision and reliability of bearing mounting to the shaft are required.
