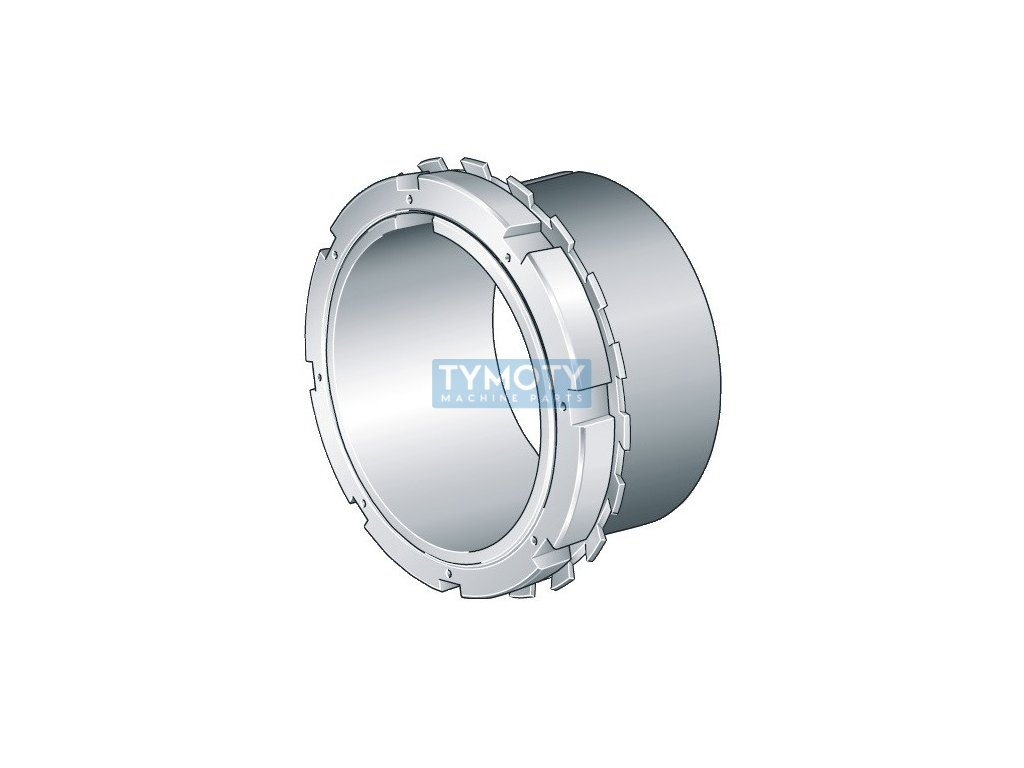

FAG H 309 clamping sleeve
Code: 628160
Product detailed description
The FAG H 309 adapter sleeve is a standard design solution for mounting bearings with a tapered bore on cylindrical shafts. This sleeve is designed for metric shafts and is equipped with a tapered bore with a ratio of 1:12, which allows for precise and firm mounting of the bearing on the shaft.The dimensions of the sleeve are as follows: the inner diameter (d) is 40 mm, the outer diameter (D) is 65 mm and the width (B) is 39 mm. These dimensions are optimized for reliable and stable mounting of the bearing, while the total weight of the sleeve is 0.227 kg, which ensures easy handling and installation.
A lock plate and nut are also included, which provide additional stability and security of the mounting. The housing is manufactured by the renowned FAG brand, known for its high quality and reliability in the field of bearings and related components.
FAG H 309 is an ideal solution for applications where precise mounting of bearings on shafts with metric dimensions is required, while ensuring long service life and reliable operation in various industrial sectors.
Additional parameters
| Category: | Bearings > bearing accessories > clamping bushings > standard d1=14 to 190 mm > d1=40 mm > H309 B1=39mm |
|---|---|
| Weight: | 0.244 kg |
| EAN: | 4012801052337 |
| Diameter D (mm): | 40, 65 |
| Manufacturer's brand: | FAG |
| Width B (mm): | 39 |
| Číslo výrobce: | 016731077-0000 |
| Značení: | H309 |
| Typ: | upínací pouzdro |
