FAG B7001-CT-P4S-UL spindle bearing

Product detailed description

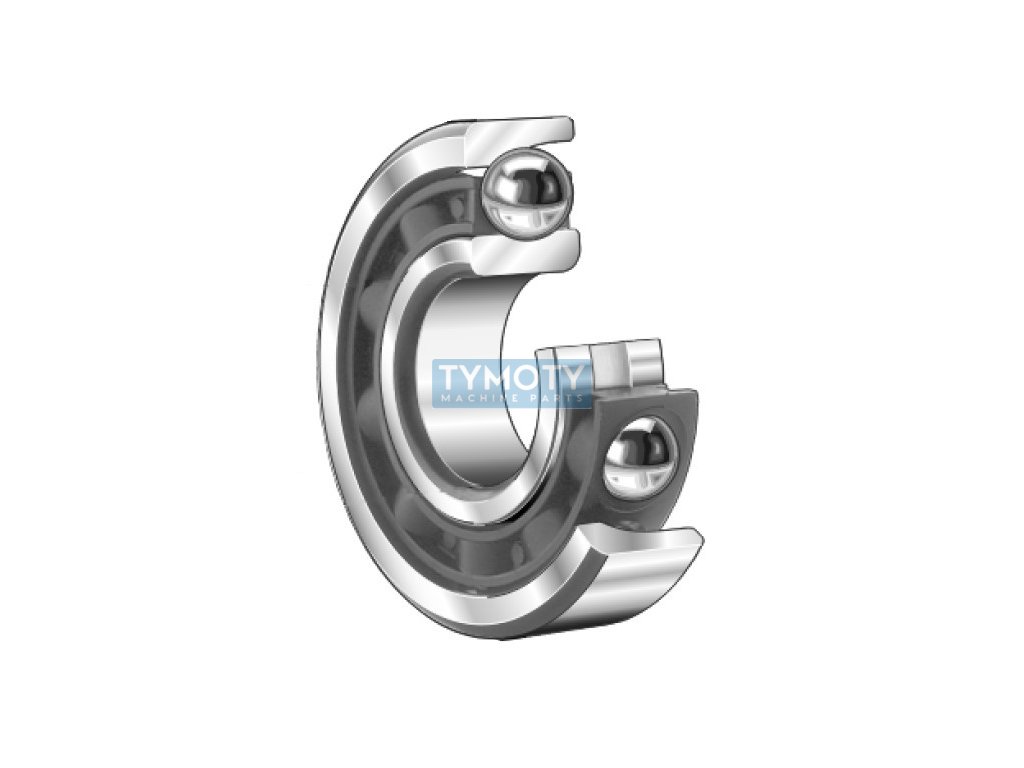

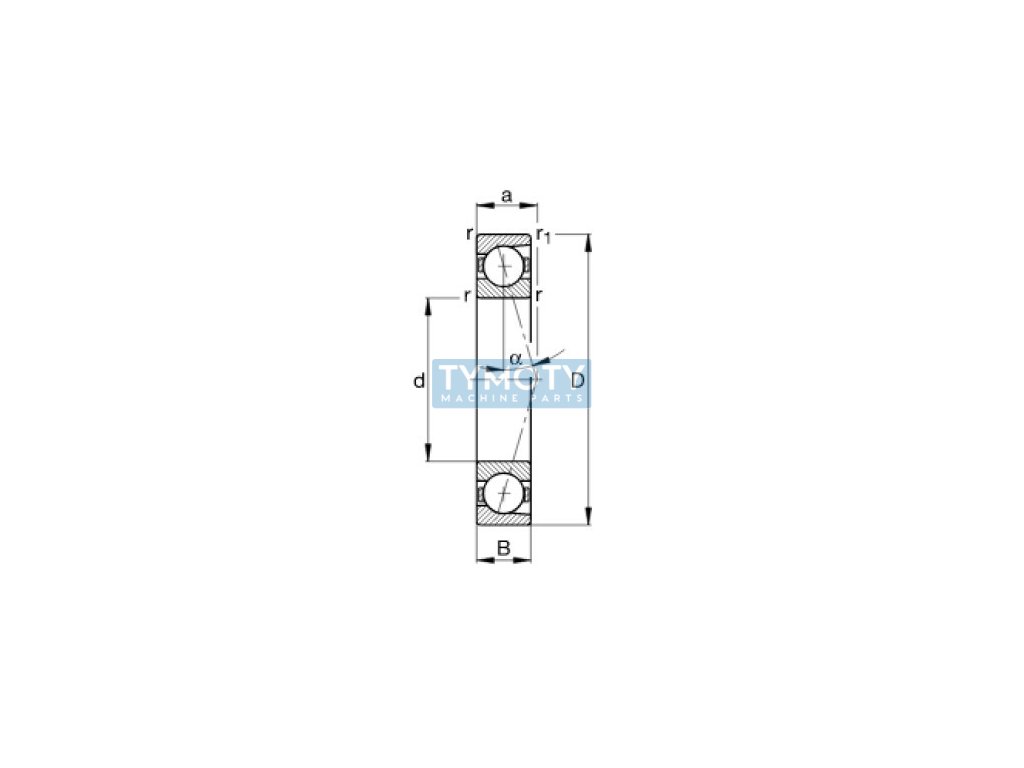

FAG B7001-CT-P4S-UL - precision non-separable single row angular contact ball bearing, with a contact angle of 15°, a lightweight phenolic resin cage reinforced with textile fabric guided by an outer ring seat. The bearing can only carry axial loads in one direction, therefore it is usually set against the second bearing.
The internal clearance of single row angular contact ball bearings is achieved only after installation and depends on the adjustment of the axial position relative to the second bearing, which provides axial guidance in the opposite direction. are manufactured so that when assembled for axial load in one direction, i.e. in tandem, or for axial load in both directions, i.e. back to back in \O\ or front to front in \X\"" a predetermined internal clearance or preload or uniform load distribution is achieved without the use of shims."""""""""""""""""
