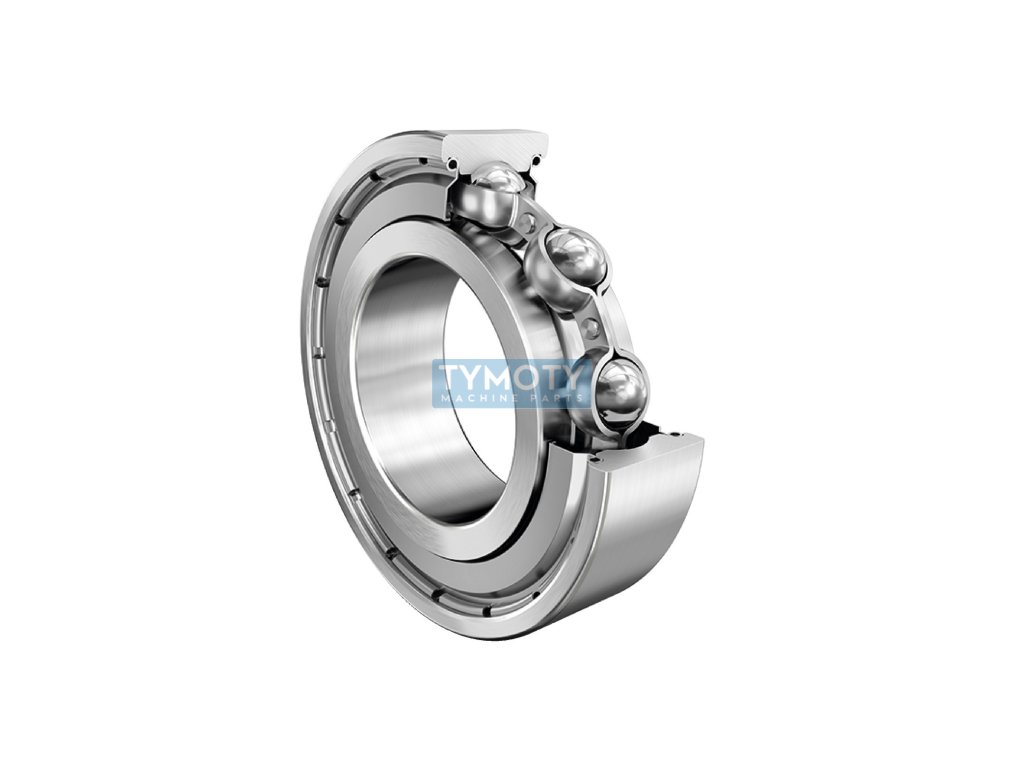

FAG 6307-2Z deep groove ball bearing

Product detailed description

FAG 6307-2Z is a single row deep groove ball bearing designed for universal use in various industrial applications. The bearing has an inner diameter of 35 mm, an outer diameter of 80 mm and a width of 21 mm. It is made of high-quality standard steel for rolling bearings, which guarantees high durability and long service life.

The bearing is equipped with a double-sided sheet metal cover (designation 2Z), which provides protection against dust and dirt, thus reducing the need for maintenance and extending the service life of the bearing. These covers are firmly attached to the outer ring and do not allow direct contact with the rolling elements, which minimizes friction and wear.

The internal structure of the bearing includes steel rolling elements, which are arranged in a pressed steel cage. This cage ensures uniform load distribution and stable operation of the bearing. The bore profile is cylindrical, which allows easy mounting on the shaft.

The bearing is designed for operation in the temperature range from -30 °C to +120 °C, which makes it suitable for use in various climatic conditions. It has normal radial clearance, which means that it is able to compensate for small deviations in the alignment of the shaft and bearing bushes.

The running accuracy of the bearing is in class P0/PN, which corresponds to ABEC 1, and provides sufficient accuracy for most standard applications. The bearing is not equipped with insulation against electrical current, which must be taken into account in applications where electrical current could be transmitted through the bearing.

The total weight of the bearing is 0.464 kg, which is an important parameter when designing mechanisms where weight is critical. FAG 6307-2Z is a reliable choice for applications requiring a robust and durable bearing with minimal maintenance.
