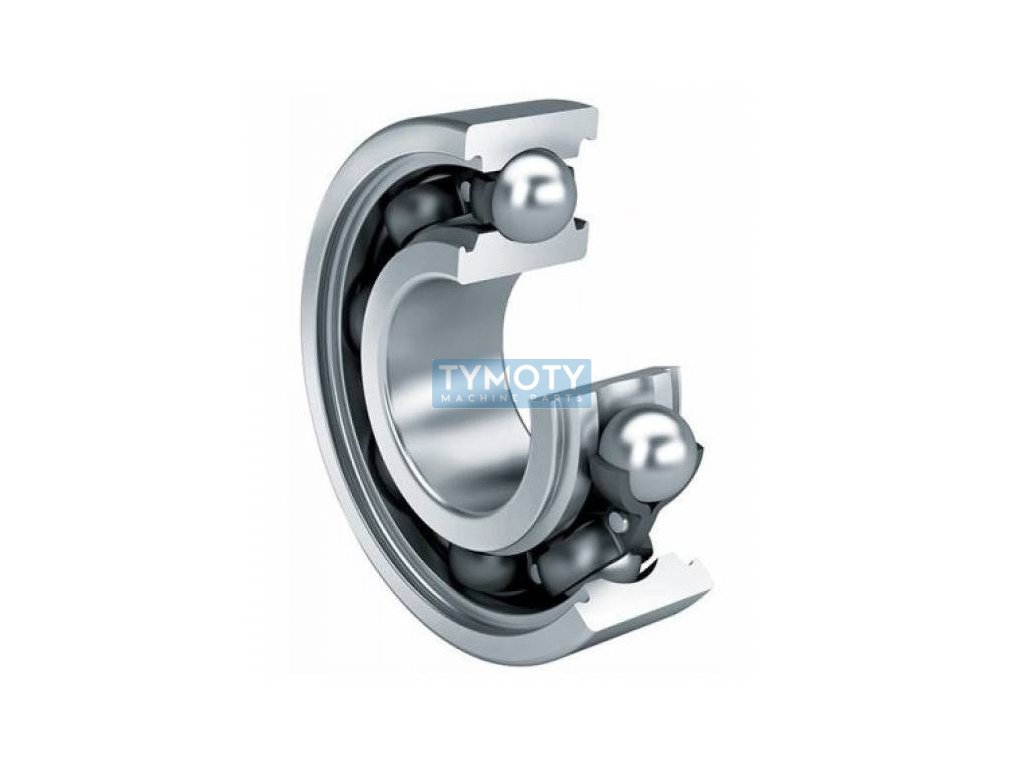

FAG 6304-C-C3 deep groove ball bearing

Product detailed description

FAG 6304-C-C3 is a single row deep groove ball bearing designed for a wide range of industrial applications. This bearing is made of high-quality standard steel for rolling bearings, which guarantees its long service life and reliability in operation.

The bearing has an inner diameter (d) of 20 mm, an outer diameter (D) of 52 mm and a width (B) of 15 mm. Its design includes a pressed steel cage, which ensures optimal ball positioning and reduces friction. The bearing is unsealed, which means that it is uncovered and is suitable for applications where protection against dust and moisture is not required.

The bearing's internal radial clearance is category C3, which means that it has a slightly increased clearance compared to standard bearings. This feature is advantageous in applications where thermal expansion occurs or where it is necessary to compensate for certain inaccuracies in assembly.

The bearing is capable of operating in a temperature range from -30 °C to +120 °C, while its running accuracy corresponds to class P6, or ABEC 3, which guarantees high accuracy and smooth operation. The bearing does not have insulation against the passage of electric current, which is important to consider when using it in electrical equipment.

The total weight of the bearing is 0.144 kg and its design is without a flange or groove on the outer ring, which allows its universal use in various mechanical assemblies. The manufacturer of this bearing is the renowned company FAG, which is known for its quality and innovations in the field of rolling bearings.
