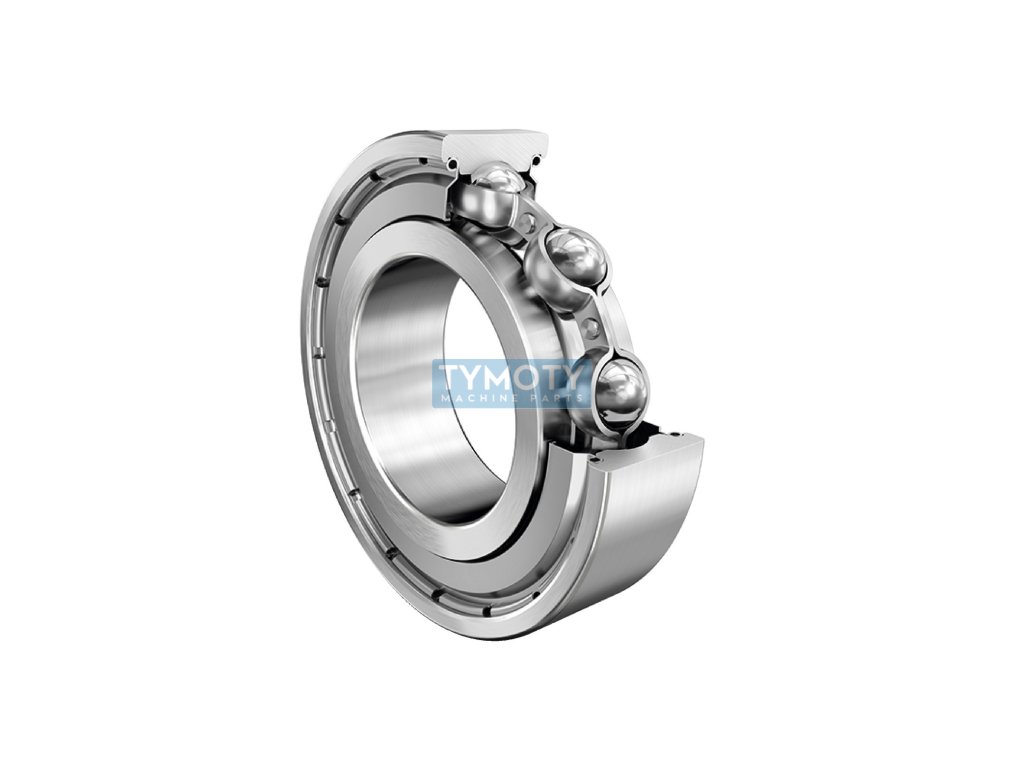

FAG 625-2Z deep groove ball bearing

Product detailed description

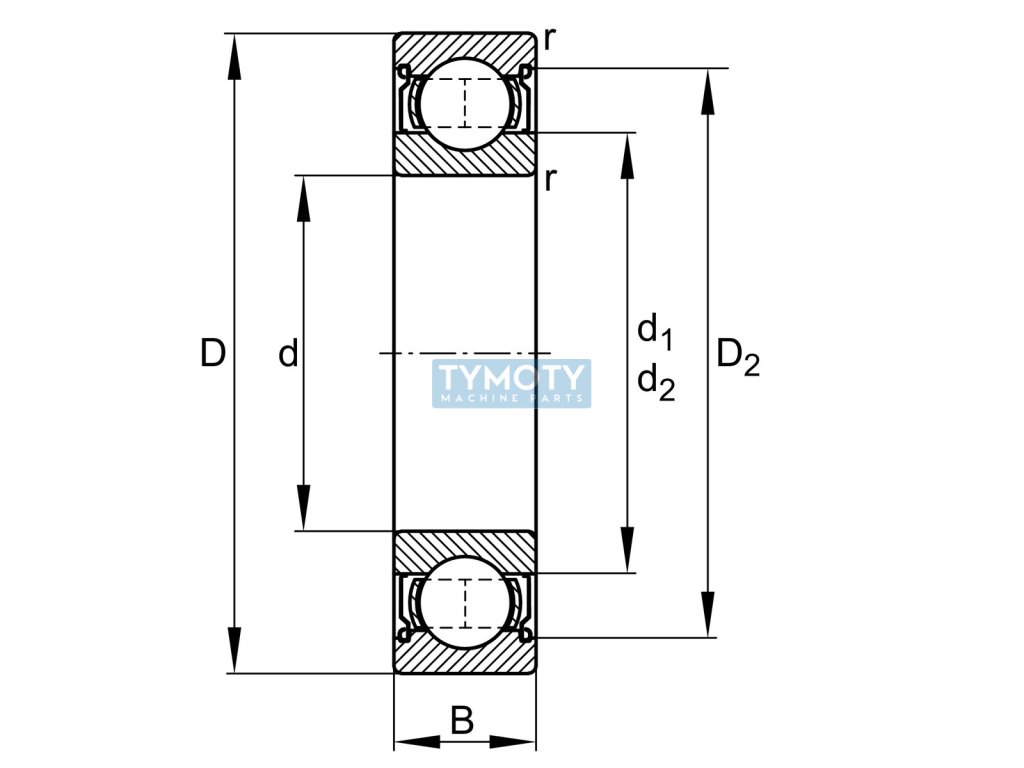

The FAG 625-2Z ball bearing is a high-quality component designed for applications requiring a precise and reliable rolling bearing. This bearing is single-row, which means that it contains one row of balls that are stored between the inner and outer rings. Its dimensions are d = 5 mm, D = 16 mm and B = 5 mm, which makes it ideal for use in compact devices with limited space.

The bearing is made of high-quality standard steel for rolling bearings, which guarantees its long service life and wear resistance. The inner ring has a cylindrical bore, which allows easy mounting on the shaft. The outer ring is without a flange or groove, which simplifies its integration into various designs.

The FAG 625-2Z is equipped with a double-sided sheet metal cover, which provides protection against dust and other contaminants, thus extending the service life of the bearing and reducing the need for maintenance. The bearing has normal radial clearance, which is suitable for most standard applications where special clearance adjustments are not required.

The operating temperature range of the bearing is from -30 °C to +120 °C, which allows it to be used in a wide range of temperature conditions. The running accuracy is in class P0/PN, or ABEC 1, which is the standard accuracy for common applications. The bearing is equipped with a pressed steel cage, which ensures proper ball guidance and uniform load distribution.

The total weight of the bearing is 0.005 kg, which contributes to its low inertia and fast response to load changes. The bearing is not equipped with insulation against the passage of electrical current, which is important to consider in applications where electrical overload may occur. This component is ideal for use in small electric motors, instruments and other devices where high accuracy and reliability are required.
