FAG 62204-A-2RSR-C3 deep groove ball bearing

Product detailed description

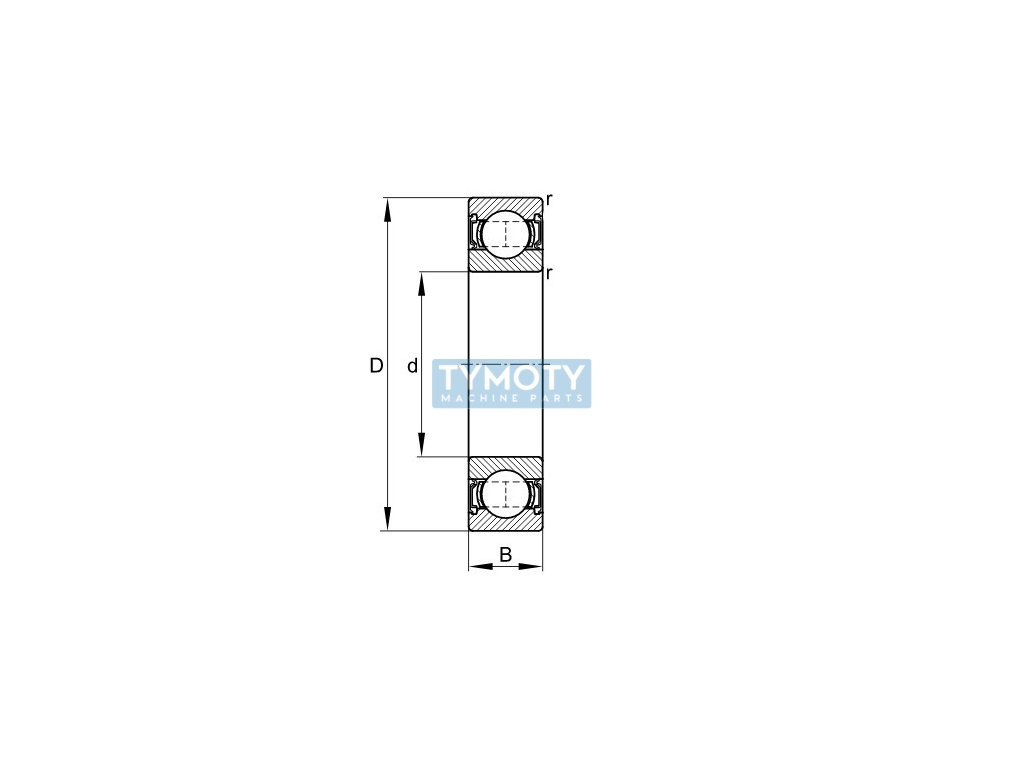

FAG 62204-A-2RSR-C3 is a single row deep groove ball bearing made of high quality standard rolling bearing steel. This bearing is designed with an inner diameter of 20 mm, an outer diameter of 47 mm and a width of 18 mm, making it suitable for various applications where compact dimensions and high reliability are required.

The bearing is equipped with a double-sided rubber contact seal, which provides effective protection against dust and moisture, thereby extending the bearing life and reducing the need for maintenance. The seal also allows operation in a temperature range from -20 °C to +120 °C, with the optimum temperature range being from -20 °C to +100 °C.

The bearing design includes a pressed steel cage, which ensures a stable arrangement of the rolling elements and reduces friction. The bearing has a cylindrical bore and an outer ring without a flange or groove, which simplifies its assembly and disassembly in various applications.

FAG 62204-A-2RSR-C3 is characterized by a slightly increased radial clearance C3, which allows better absorption of thermal expansion and vibrations, while maintaining running accuracy in class P0/PN, respectively. ABEC 1. The bearing is not insulated against the passage of electric current, which must be taken into account when using it in electrical applications.

With a weight of 0.14 kg, this bearing is suitable for a wide range of industrial applications where high quality and reliability are required. The manufacturer FAG, part of the Schaeffler Group, is known for its precise and durable bearings, which ensures that this product will meet even the most demanding requirements.
