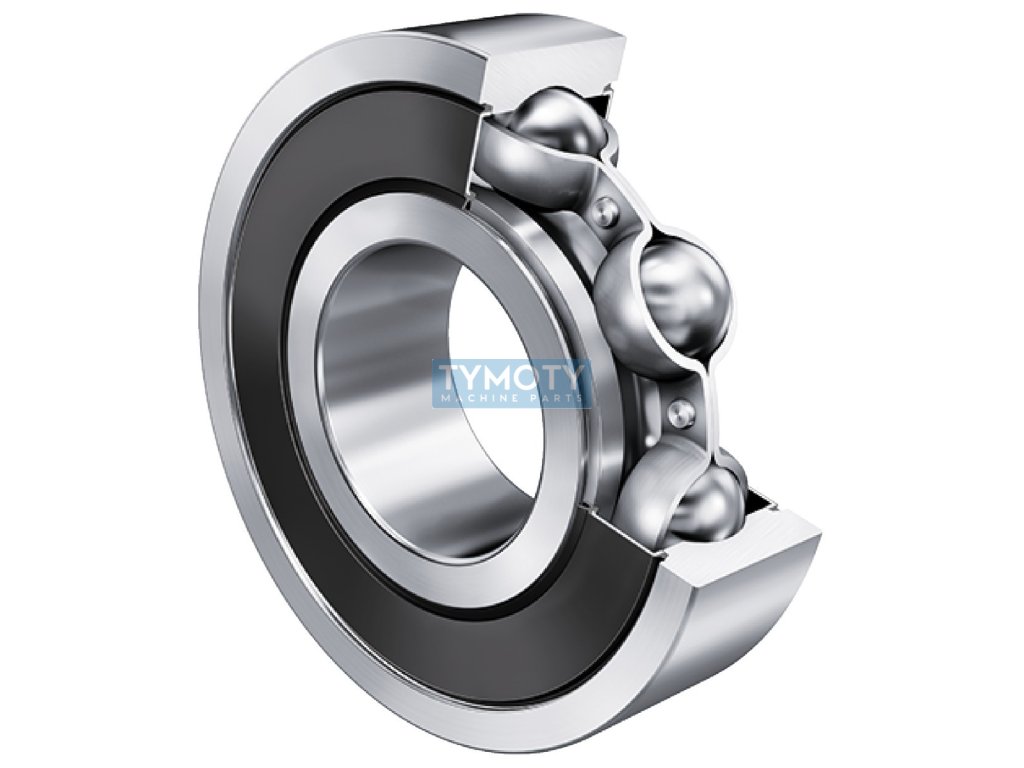

FAG 6208-C-2HRS-C3 (2RS C3) deep groove ball bearing

Product detailed description

FAG 6208-C-2HRS-C3 is a single row deep groove ball bearing designed for a wide range of industrial applications. This bearing is made of high-quality standard rolling bearing steel, which guarantees its long service life and reliability.

The bearing has an inner diameter of 40 mm, an outer diameter of 80 mm and a width of 18 mm. It features a cylindrical bore and an outer ring without a flange or groove, which allows for easy assembly and disassembly in various designs.

The FAG 6208-C-2HRS-C3 is equipped with a double-sided rubber contact seal, which provides effective protection against dust and moisture, thereby extending the service life of the bearing. The seal also helps to maintain an optimal amount of lubricant in the bearing, which is crucial for its proper function.

The bearing is designed with a slightly increased radial clearance C3, which allows better adaptation to thermal expansions and higher rotational speeds. This feature is particularly important in applications where significant temperature changes occur or where higher speeds are required.

The bearing cage is made of pressed steel, which ensures its strength and resistance to mechanical wear. The bearing is able to operate in a temperature range from -20 °C to +120 °C, and can withstand temperatures up to +100 °C for short periods.

The running accuracy of the bearing is in class P6, which corresponds to the ABEC 3 standard, and guarantees high accuracy and smooth rotation. The total weight of the bearing is 0.368 kg, which is optimized for its dimensional parameters and design features.

FAG 6208-C-2HRS-C3 is an ideal choice for applications where high reliability and resistance to mechanical and thermal stress are required, such as electric motors, gearboxes and other industrial equipment.
