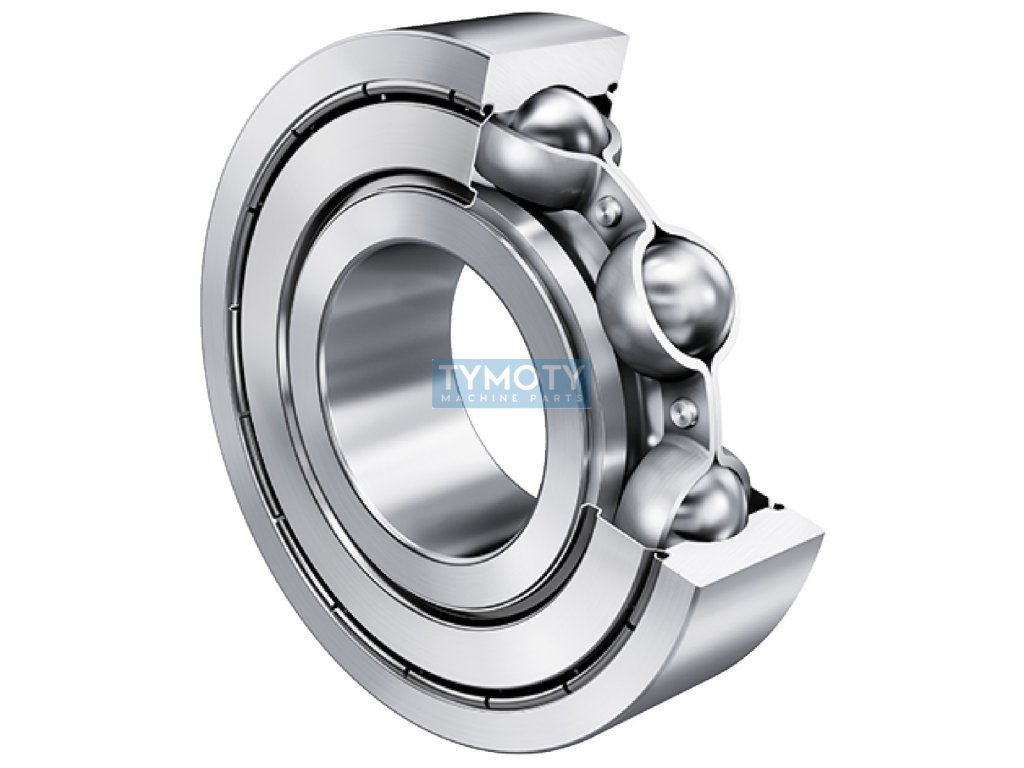

FAG 6200-C-2Z-C3 deep groove ball bearing

Product detailed description

FAG 6200-C-2Z-C3 is a single row deep groove ball bearing designed for various industrial applications where high precision and reliability are required. This bearing has an inner diameter (d) of 10 mm, an outer diameter (D) of 30 mm and a width (B) of 9 mm. It is made of high-quality standard steel for rolling bearings, which guarantees its long service life and resistance to wear.

The bearing is equipped with a double-sided cover (2Z), which provides protection against dust and other impurities, thus reducing the need for maintenance and extending its service life. The cover is made of sheet metal, which ensures sufficient protection while maintaining the low weight of the component, which is 0.034 kg.

This bearing has a slightly increased radial clearance (C3), which allows it to be used in applications with higher temperature fluctuations or higher speeds. The operating temperature range of the bearing is from -30 °C to +120 °C, making it suitable for a wide range of working conditions.

The bearing is equipped with a pressed steel cage, which ensures proper ball guidance and reduces friction. The inner hole profile is cylindrical, which allows easy assembly on the shaft. The outer ring is without a flange or groove, which simplifies its integration into various mechanical assemblies.

The running accuracy of the bearing is in class P6, which corresponds to ABEC 3, and guarantees high accuracy and smooth operation. The bearing is not equipped with insulation against current, which is important to consider in applications where electrical current could be transmitted.

The manufacturer FAG, part of the Schaeffler Group, is known for its high quality and reliability of its products, which makes this bearing an ideal choice for demanding industrial applications.
