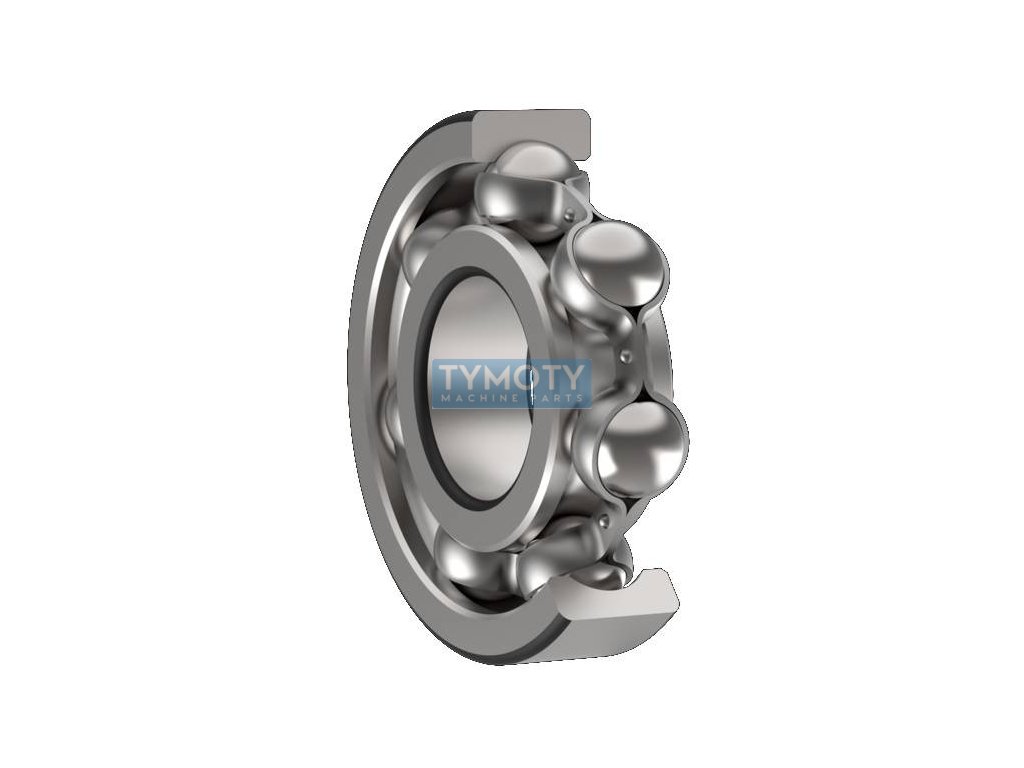

FAG 61815-Y deep groove ball bearing

Product detailed description

FAG 61815-Y is a single row ball bearing designed for various industrial applications where high precision and reliability are required. This bearing is made of high-quality standard steel for rolling bearings, which guarantees long service life and wear resistance.

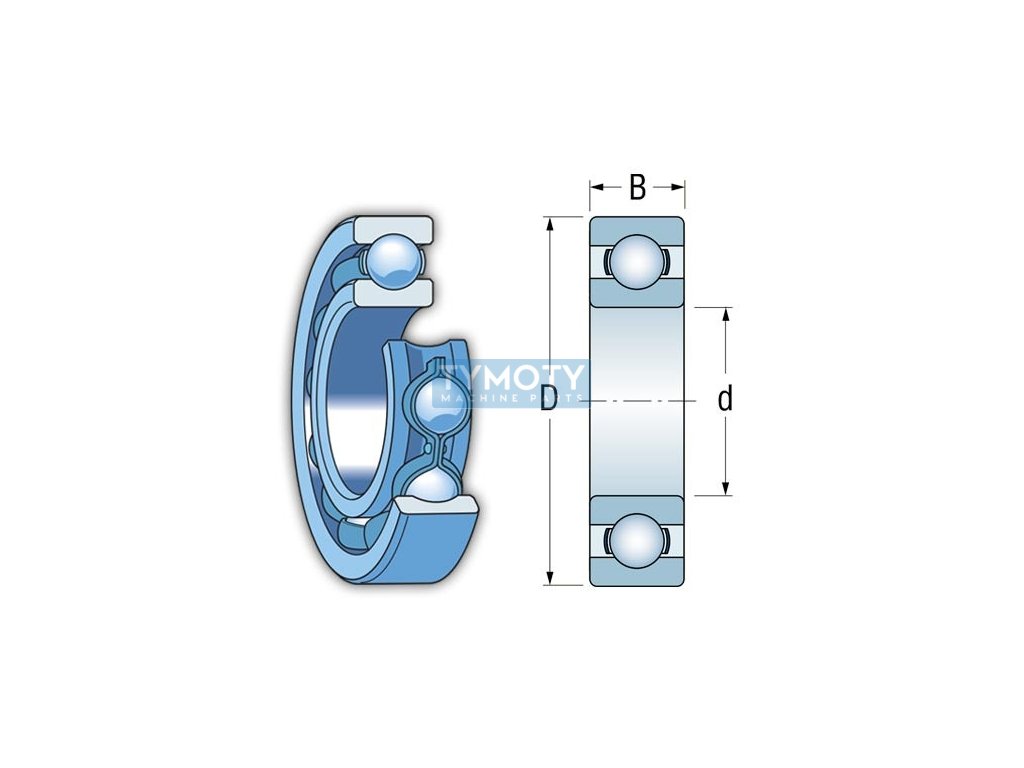

The bearing has an inner diameter (d) of 75 mm, an outer diameter (D) of 95 mm and a width (B) of 10 mm. These dimensions make it suitable for use in applications with limited space, where compactness and low weight, which in this case is 0.15 kg, are required.

The bearing design includes a brass cage, which ensures optimal ball guidance and reduces friction. The bearing is unsealed, which means it is uncovered and requires regular maintenance and lubrication to ensure its optimal functionality.

The shape of the outer ring is without a flange or groove, which allows for easy assembly and disassembly. The hole profile is cylindrical, which is a standard shape for this type of bearing. The bearing does not have insulation against the passage of electrical current, which is important to consider in applications where electrical loads may occur.

The operating temperature range of the bearing is from -30 °C to +150 °C, while the recommended range is from -20 °C to +120 °C. This allows the bearing to be used in various climatic conditions and at various temperature loads.

The bearing has normal radial clearance, which is suitable for most standard applications where special clearance adjustments are not required. The running accuracy is in the accuracy class P0/PN or ABEC 1, which corresponds to the basic accuracy level for common industrial use.

FAG 61815-Y is the ideal choice for applications where high precision, reliability and durability in a compact design are required. Its design features and material composition make it suitable for a wide range of applications in various industries.
