FAG 61813-2RZ-Y deep groove ball bearing

Product detailed description

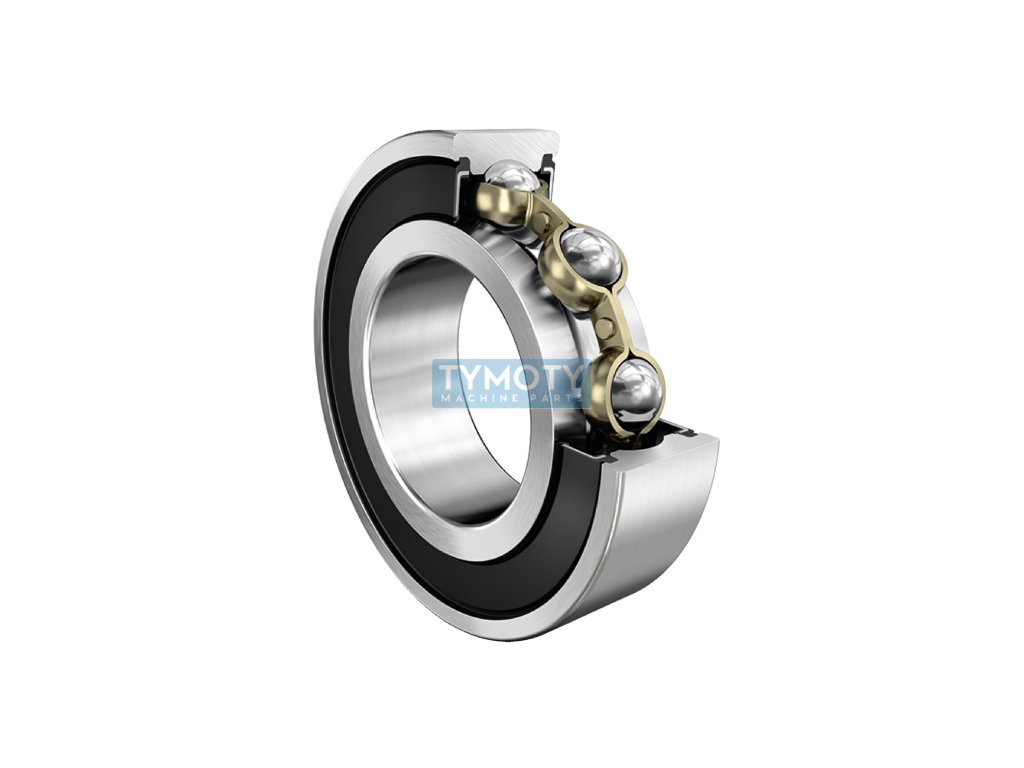

The FAG 61813-2RZ-Y is a single-row deep groove ball bearing that features the high precision and reliability typical of FAG products. The bearing has an inner diameter of 65 mm, an outer diameter of 85 mm and a width of 10 mm, which makes it ideal for use in applications with limited space.

This bearing is made of standard rolling bearing steel, which guarantees a long service life and resistance to wear. The rolling elements are also made of this steel, which contributes to the overall robustness and reliability of the bearing. The bearing is equipped with a brass cage that ensures optimal ball guidance and minimizes friction.

The FAG 61813-2RZ-Y bearing is equipped with a non-contact rubber seal on both sides, which effectively protects the internal components from dust and dirt, while minimizing friction and heat loss. This seal allows the bearing to operate in a temperature range from -20 °C to +120 °C.

The running accuracy is in class P0/PN, which corresponds to the ABEC 1 standard, and ensures smooth and quiet operation. The bearing has normal radial clearance, which is suitable for most common applications where special clearance adjustments are not required.

Thanks to its design features, the FAG 61813-2RZ-Y is an ideal solution for various industrial applications where high accuracy and reliability are required while maintaining compact dimensions. Its weight is 0.13 kg, which contributes to its easy handling and installation. The bearing is not insulated against the passage of electric current, which is important to consider when using it in electrical equipment.
