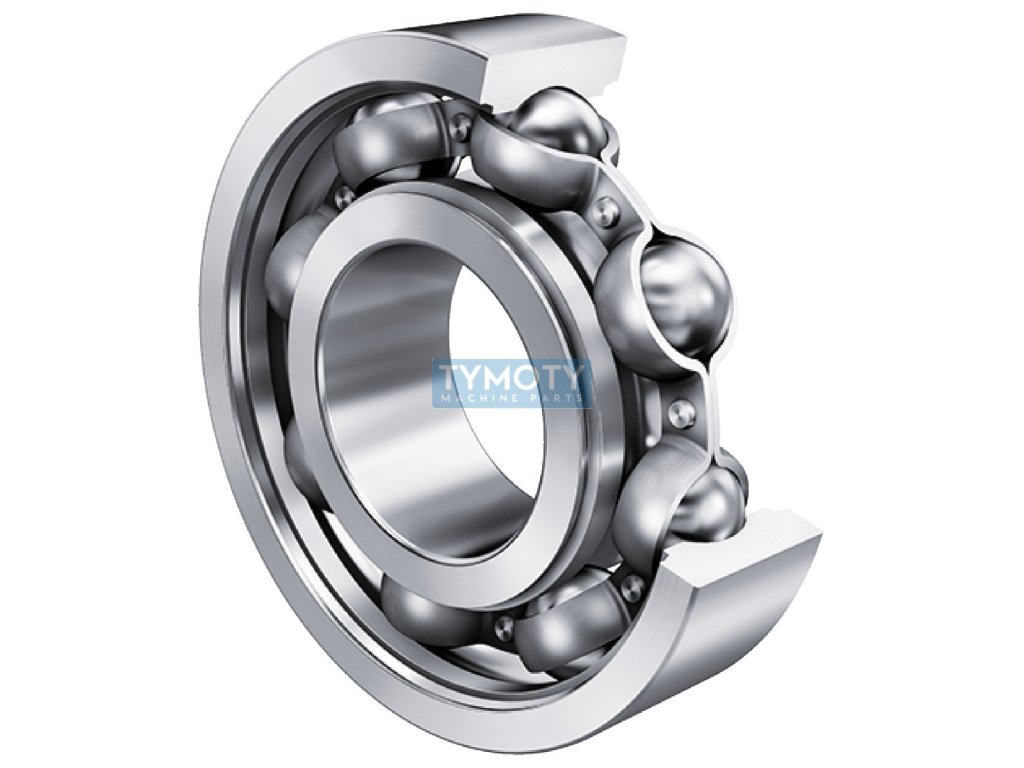

FAG 61802 deep groove ball bearing

Product detailed description

FAG 61802 is a single row deep groove ball bearing designed for applications requiring compact dimensions and high precision. The bearing has an inner diameter of 15 mm, an outer diameter of 24 mm and a width of 5 mm. It features a cylindrical bore and is made of standard steel for rolling bearings, which guarantees its durability and long service life.

The bearing is equipped with a pressed steel cage, which ensures correct ball guidance and minimizes friction. It does not contain any seals, which means that it is uncovered and suitable for applications where protection against dirt or moisture is not required. The internal radial clearance is normal, which is standard for most applications.

This component is designed to operate in a temperature range from -20 °C to +150 °C, which allows it to be used in various industrial conditions. The running accuracy is in class P0/PN, respectively. ABEC 1, which guarantees reliable performance at normal operating speeds and loads.

FAG 61802 is ideal for applications where high precision and reliability are required, such as electric motors, gearboxes and other mechanical devices. Thanks to its low weight of 0.008 kg and compact dimensions, it is also suitable for applications with limited space. It does not contain insulation against the passage of electrical current, therefore it is not suitable for use in electrically isolated applications.
