FAG 609-2RSR deep groove ball bearing

Product detailed description

The FAG 609-2RSR ball bearing is a high-quality component designed for various industrial applications where reliability and precision are required. This bearing is manufactured by the renowned manufacturer FAG, which is part of the Schaeffler Group, and is known for its precise manufacturing and long service life.

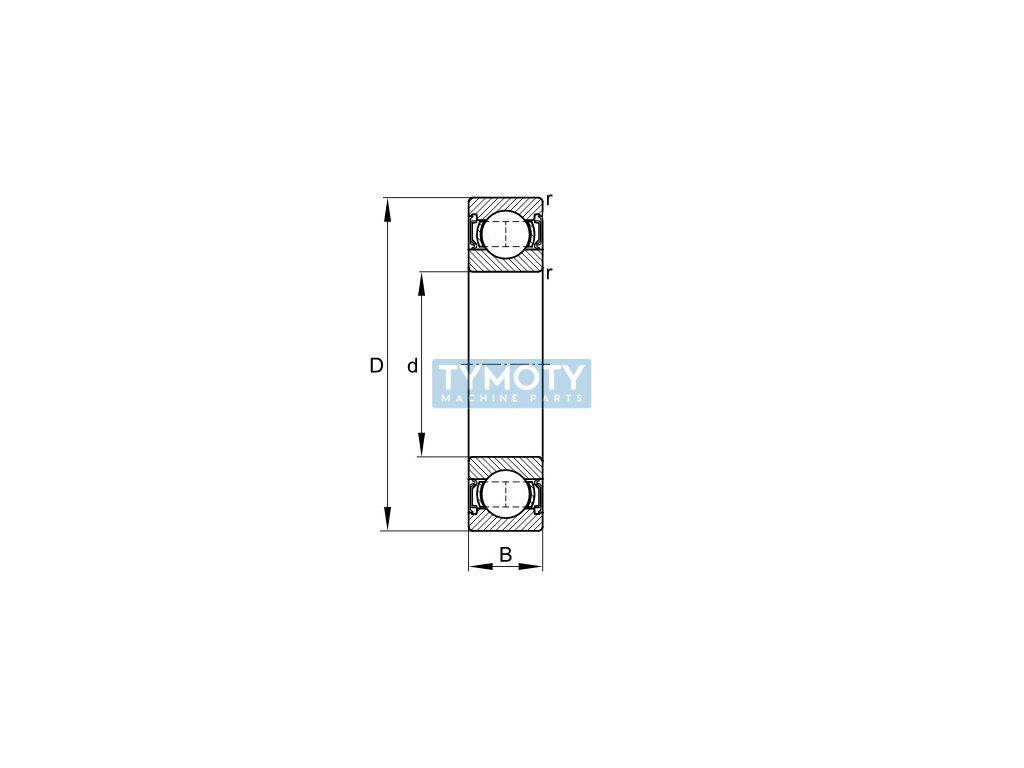

The bearing has an inner diameter (d) of 9 mm, an outer diameter (D) of 24 mm and a width (B) of 7 mm. Its design is based on a single-row arrangement of balls, which allows it to effectively transmit radial and axial loads. The inner and outer rings are made of standard steel for rolling bearings, which guarantees high wear resistance and long-term reliability.

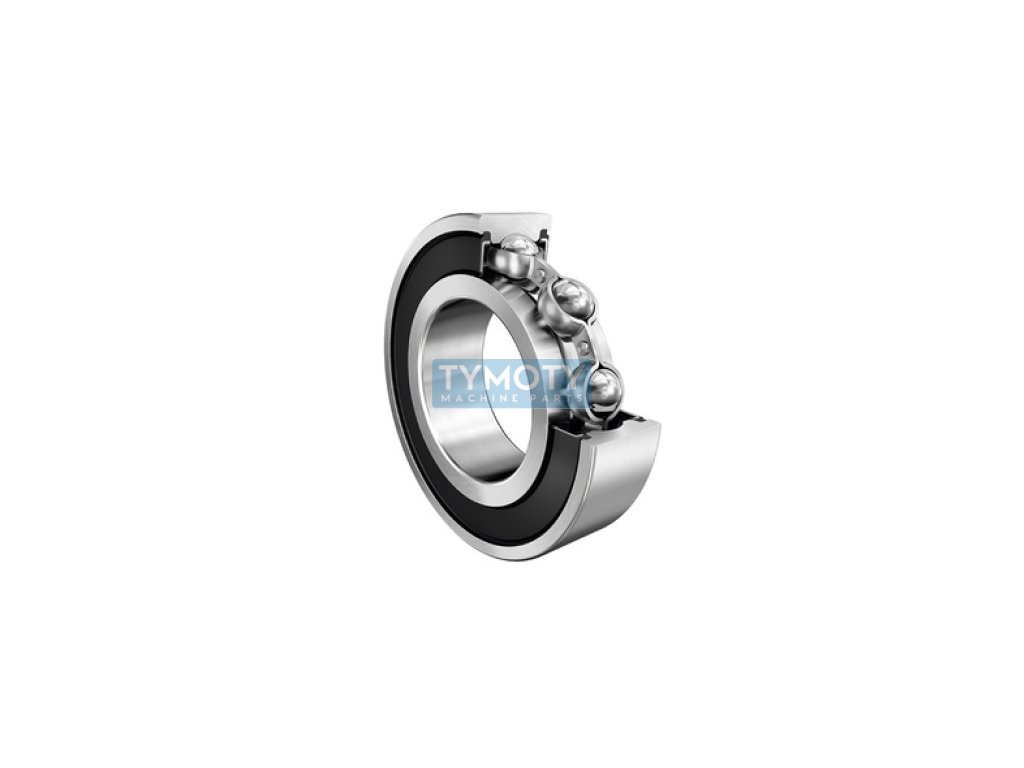

The bearing is equipped with a double-sided rubber contact seal that provides protection against dust and moisture, thereby extending its service life and reducing the need for maintenance. The seal also helps to keep the lubricant inside the bearing, improving its performance under various operating conditions.

The bearing cage is made of pressed steel, which contributes to its strength and stability at high speeds. The bearing has a normal radial clearance, which is suitable for most standard applications where special adjustments are not required.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows it to be used in various climatic conditions. The bearing meets the running accuracy of class P0/PN, respectively. ABEC 1, which is the standard accuracy level for common applications.

The total weight of the bearing is 0.016 kg, which makes it a light but robust component suitable for a wide range of applications. The bearing is not insulated against the passage of electrical current, which is important to consider in applications where electrical discharges could occur.

FAG 609-2RSR is an ideal choice for applications where high precision, reliability and minimal maintenance are required. Its design features and material composition make it suitable for use in various industries including mechanical engineering, the automotive industry and other technical applications.
