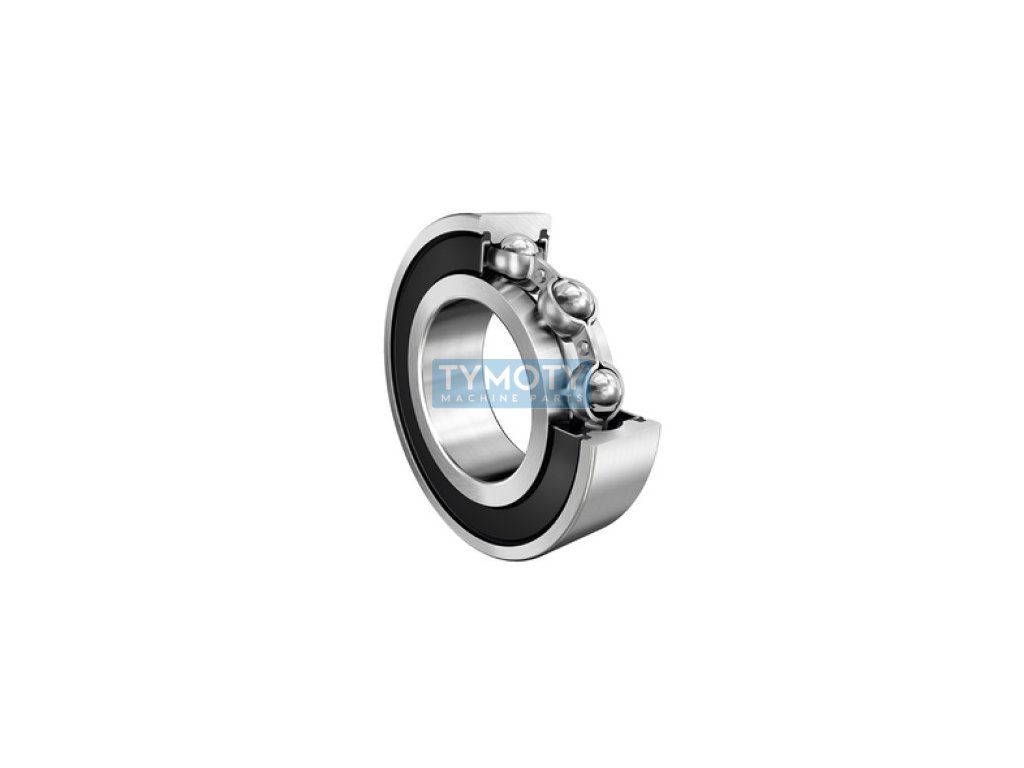

FAG 6003-2RSR deep groove ball bearing

Product detailed description

FAG 6003-2RSR is a single row deep groove ball bearing designed for a wide range of applications in industrial equipment. The bearing has an inner diameter of 17 mm, an outer diameter of 35 mm and a width of 10 mm. It is made of high-quality standard steel for rolling bearings, which ensures its long service life and reliability.

The bearing is equipped with a double-sided rubber contact seal, which provides effective protection against dust and moisture, thereby extending its service life and reducing the need for maintenance. The pressed steel cage ensures stable ball guidance and contributes to the overall robustness of the structure.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows it to be used in various climatic conditions and applications. The bearing has normal radial clearance, which is suitable for standard operating conditions without special accuracy requirements.

The running accuracy is in class P0/PN, which corresponds to ABEC 1, and is suitable for applications where accuracy requirements are medium. The bearing does not have insulation against the passage of electric current, which must be taken into account when using it in electrical equipment.

The total weight of the bearing is 0.039 kg, which allows for easy handling and installation. Thanks to its design without a flange or groove on the outer ring, it is suitable for applications where simple installation into bearing housings is required. The manufacturer is the renowned company FAG, which is known for its quality and reliability in the field of bearing production.
