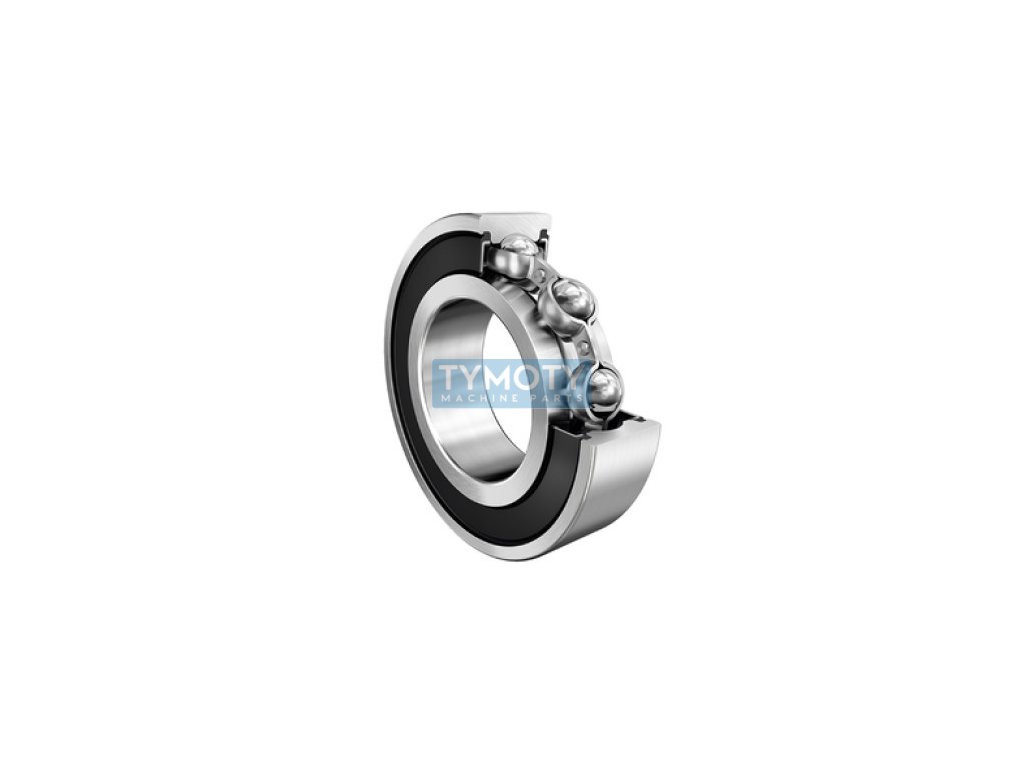

FAG 6003-2RSR-C3 deep groove ball bearing

Product detailed description

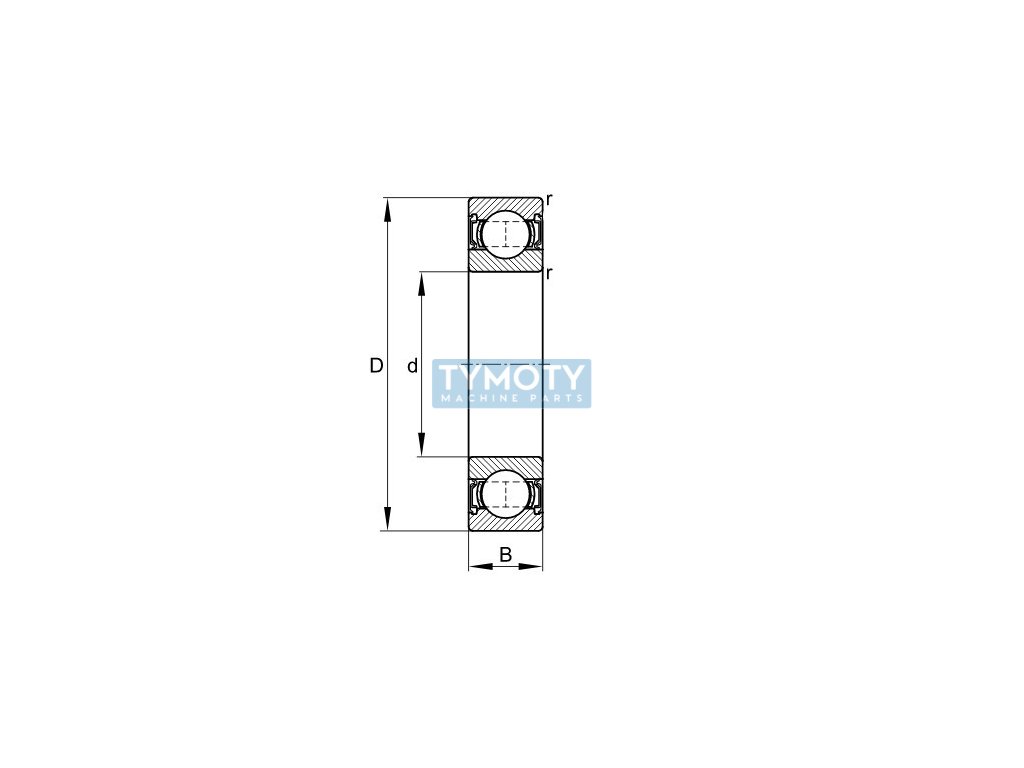

FAG 6003-2RSR-C3 is a single row deep groove ball bearing designed for applications requiring high precision and reliability. This bearing has an inner diameter of 17 mm, an outer diameter of 35 mm and a width of 10 mm, making it suitable for a wide range of mechanical systems. The bearing is made of high-quality standard steel for rolling bearings, which ensures its long service life and wear resistance.

The bearing is equipped with a double-sided rubber contact seal, which effectively protects the internal parts from dust and moisture, thereby extending its service life and increasing reliability. The seal also allows operation in a temperature range from -20 °C to +120 °C, with the optimal temperature range for long-term operation being from -20 °C to +100 °C.

The bearing design includes a pressed steel cage, which ensures proper guidance of the rolling elements and minimizes friction. The hole profile is cylindrical, which allows easy mounting on the shaft. The internal radial clearance is slightly increased (C3), which is suitable for applications with higher operating temperatures or where it is necessary to compensate for the expansion of materials.

The bearing belongs to the accuracy class P0/PN (resp. ABEC 1), which means that it meets the basic requirements for running accuracy for common applications. Due to the absence of a flange or groove on the outer ring, the bearing is suitable for applications where simple and quick mounting without additional modifications is required.

The total weight of the bearing is 0.039 kg, which contributes to its low inertia and allows its use in dynamic systems. The bearing is not insulated against the passage of electric current, which is important to consider in applications where electrical stress may occur.

The manufacturer FAG, part of the Schaeffler Group, is known for its high quality and precision in bearing production, which guarantees reliable operation and a long service life of this component.
