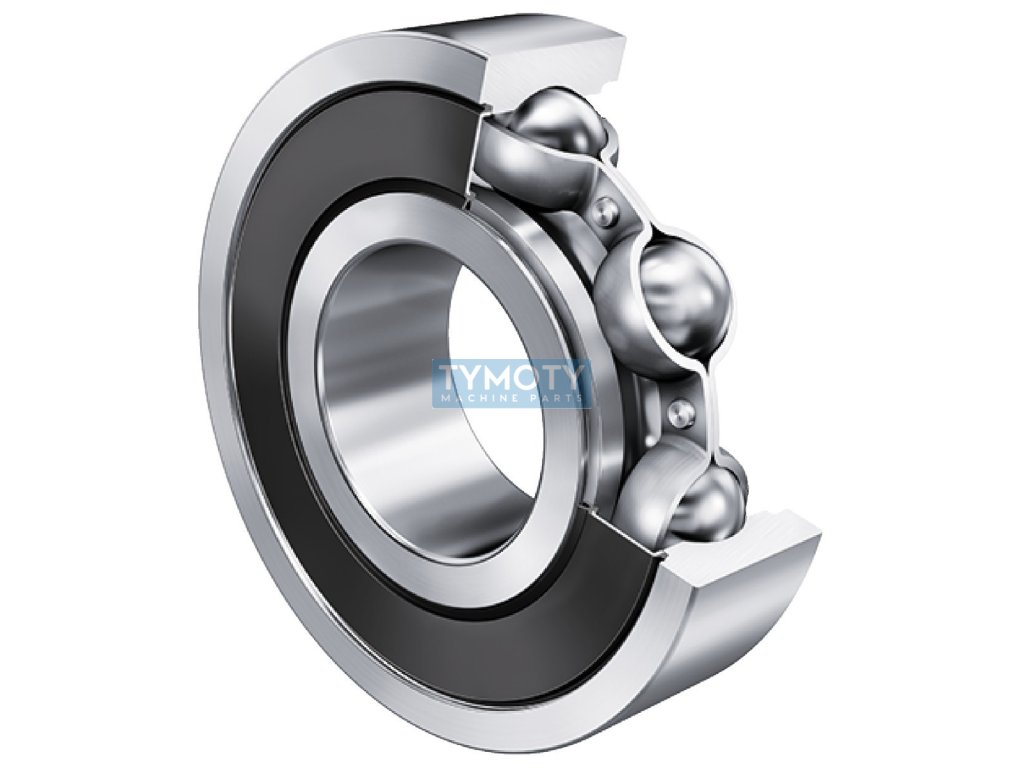

FAG 6002-C-HRS-C3 (RS C3) deep groove ball bearing

Product detailed description

FAG 6002-C-HRS-C3 is a single row ball bearing manufactured by the renowned manufacturer FAG. This bearing is characterized by its high quality and is designed for a wide range of applications in industry. It has an inner diameter of 15 mm, an outer diameter of 32 mm and a width of 9 mm, which makes it suitable for compact designs where precision and reliability are required.

The bearing is made of standard steel for rolling bearings, which ensures high wear resistance and long service life. It is equipped with a one-sided contact rubber seal, which provides protection against dirt and moisture, thereby extending the service life of the bearing. The shape of the outer ring is without a flange or groove, which allows for easy assembly and disassembly.

The bearing cage is pressed from steel, which guarantees strength and stability during operation. The bearing has a slightly increased radial clearance C3, which allows better absorption of thermal expansion and reduces the risk of overload at high speeds or temperatures. The operating temperature range of the bearing is from -20 °C to +120 °C, which makes it suitable for various climatic conditions.

The running accuracy is in class P6, or ABEC 3, which ensures high accuracy and quiet operation. The bearing is not equipped with insulation against the passage of electric current, which must be taken into account when using it in electrical applications. The total weight of the bearing is 0.033 kg, which contributes to its easy handling and installation.
