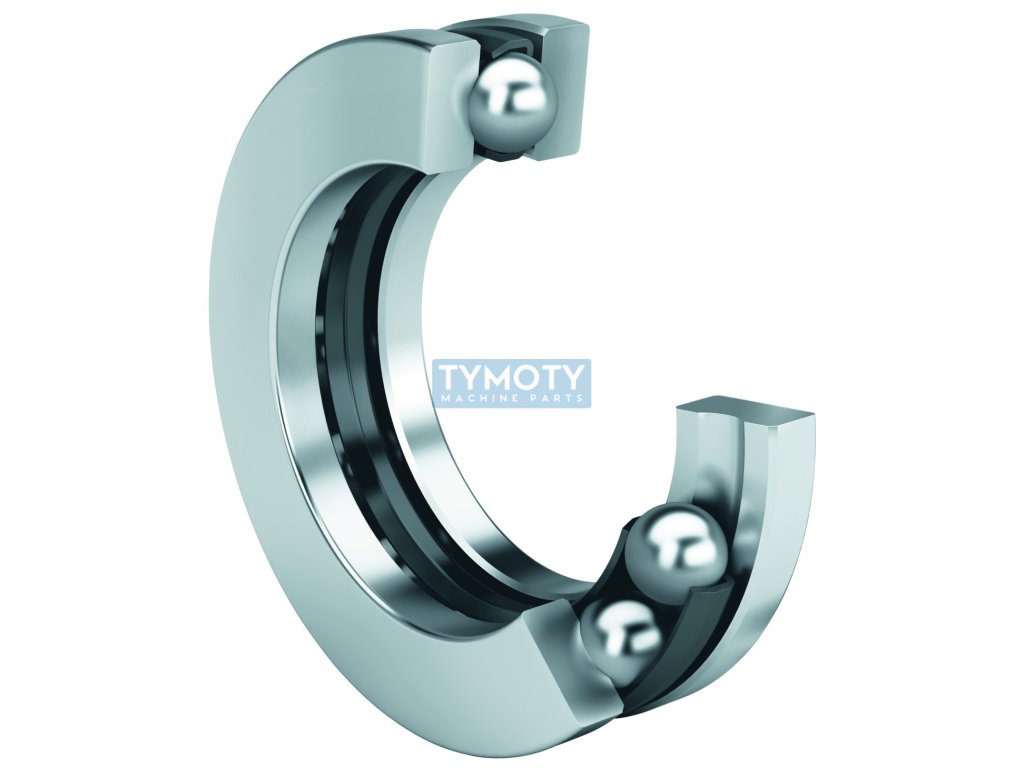

FAG 51204 axial ball bearing

Product detailed description

The FAG 51204 thrust ball bearing is precisely designed for applications where unidirectional axial loads need to be transmitted. This bearing is made of high-quality steel, which guarantees long service life and reliability in operation. With an inner diameter of 20 mm, an outer diameter of 40 mm and a width of 14 mm, it is ideal for compact mechanical assemblies where axial forces need to be transmitted efficiently.

The bearing is equipped with a pressed steel cage, which ensures optimal ball guidance and minimizes friction, contributing to smooth operation and reducing wear. The operating temperature range of the bearing is from -30 °C to +150 °C, which allows it to be used in various industrial conditions, including those with extreme temperatures.

The running accuracy is in accordance with class P0/PN, respectively. ABEC 1, which means that the bearing meets the basic accuracy requirements for common applications. The bearing does not have the possibility of angular adjustment, which is typical for thrust bearings that are designed to transmit forces in one direction.

The weight of the bearing is 0.082 kg, which is advantageous for applications where low component weight is important. The FAG 51204 bearing is supplied separately, without additional accessories, and is suitable for a wide range of industrial applications where high quality and reliability are required.
