FAG 51115 axial ball bearing

Product detailed description

FAG 51115 is a thrust ball bearing designed for unidirectional loads, which means that it is capable of transmitting axial forces in one direction. This bearing is made of high-quality steel, which is standardly used for rolling bearings, ensuring high resistance and long service life. The bearing has a running accuracy of class P0/PN, which corresponds to ABEC 1, and is suitable for applications where high precision requirements are not imposed.

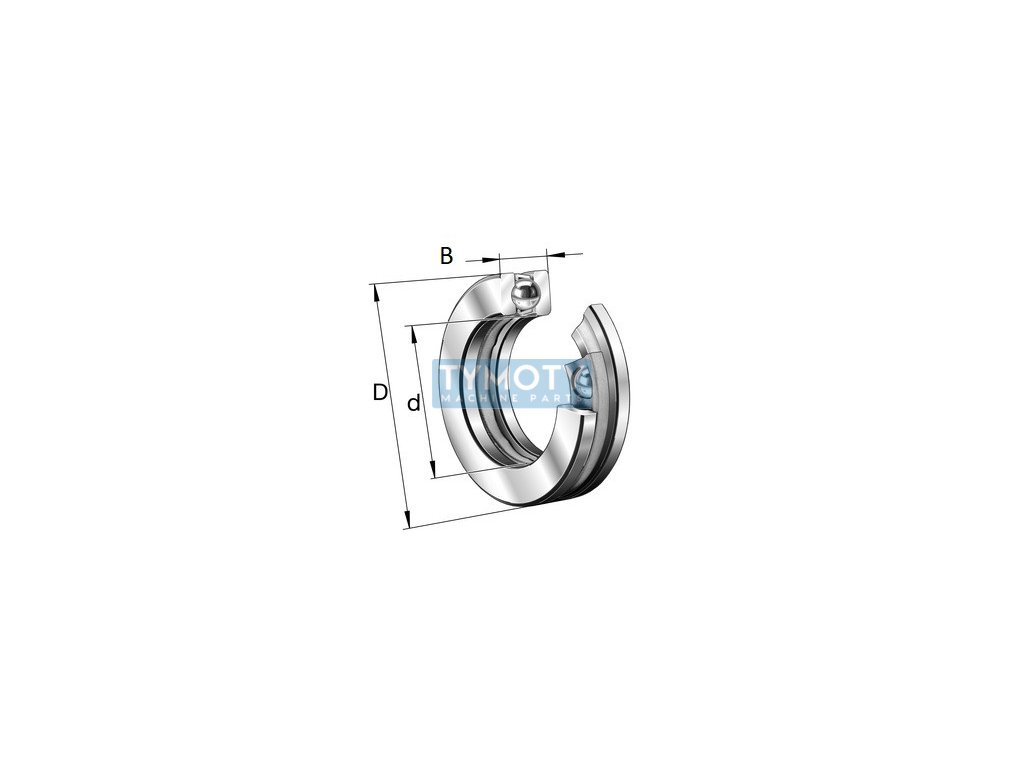

The dimensions of the bearing are as follows: the inner diameter (d) is 75 mm, the outer diameter (D) is 100 mm and the width (B) is 19 mm. These dimensions allow it to be used in various industrial applications where axial loads need to be transmitted. The bearing is equipped with a pressed steel cage, which ensures stability and correct guidance of the balls during operation.

The operating temperature range of the bearing is from -30 °C to +150 °C, which allows its use in various climatic conditions and applications with moderate thermal loads. The bearing does not have the possibility of angular adjustment, which means that it must be installed in precisely aligned applications to avoid overloading and premature wear.

The total weight of the bearing is 0.4 kg, which is an important parameter when designing and installing in systems where weight is a critical factor. The bearing is supplied separately, without additional components, which allows its easy integration into existing systems. The manufacturer is the renowned company FAG, which is known for its quality and reliability in the field of bearing production.
