FAG 4309-B-TVH deep groove ball bearing

Product detailed description

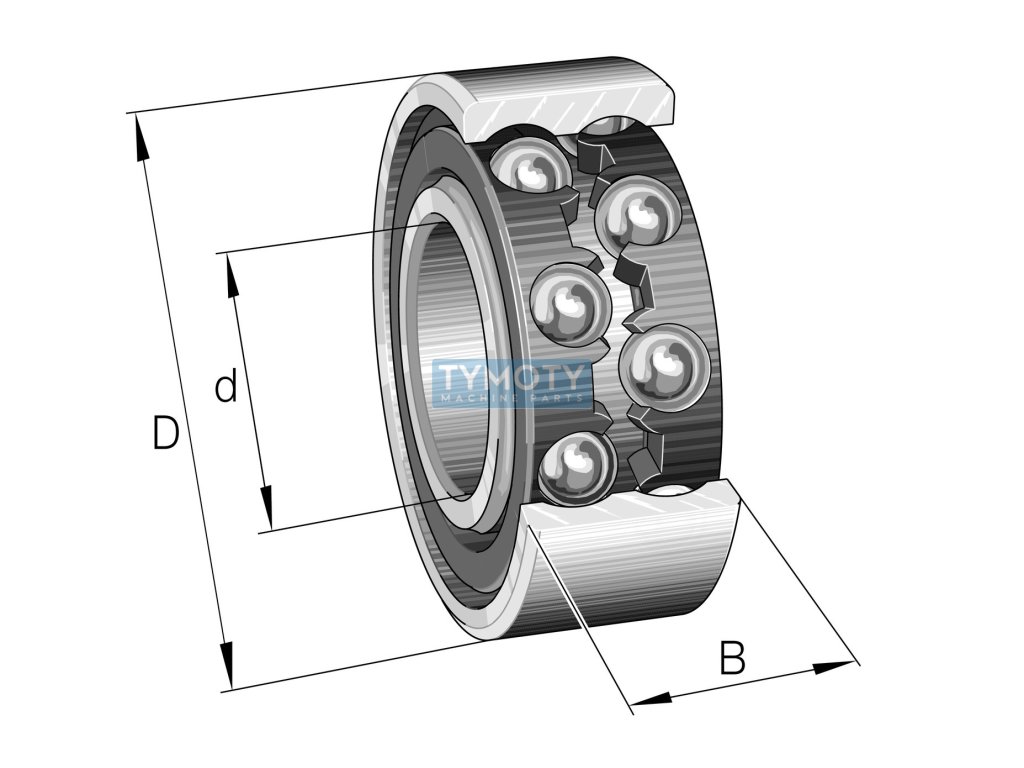

The FAG 4309-B-TVH deep groove ball bearing is a double row deep groove ball bearing designed for a wide range of industrial applications. This bearing has an inner diameter of 45 mm, an outer diameter of 100 mm and a width of 36 mm, making it suitable for applications where higher load capacity is required while maintaining compact dimensions.

The bearing design is based on standard rolling bearing steel, which ensures high strength and wear resistance. The rolling elements are also made of this standard steel, which guarantees long service life and reliability in operation. The bearing is equipped with a polyamide cage, which provides low friction and improves the dynamic properties of the bearing.

The 4309-B-TVH bearing has no seals, which means it is uncovered and requires regular maintenance and lubrication to ensure its optimal functionality. The internal radial clearance is normal, which is suitable for most standard applications where special clearance adjustments are not required.

This bearing is designed for operating temperatures ranging from -30 °C to +120 °C, while its running accuracy is in class P0/PN or ABEC 1, which corresponds to the basic level of accuracy for common applications. The bearing does not have insulation against the passage of electrical current, which is important to consider in applications where electrical discharges could be a problem.

With a weight of 1.21 kg, this bearing is robust and suitable for applications where higher load capacity and reliability are required. The manufacturer FAG, part of the Schaeffler Group, is known for its high quality and precision, which ensures that the 4309-B-TVH bearing will meet the demanding requirements of industrial applications.
