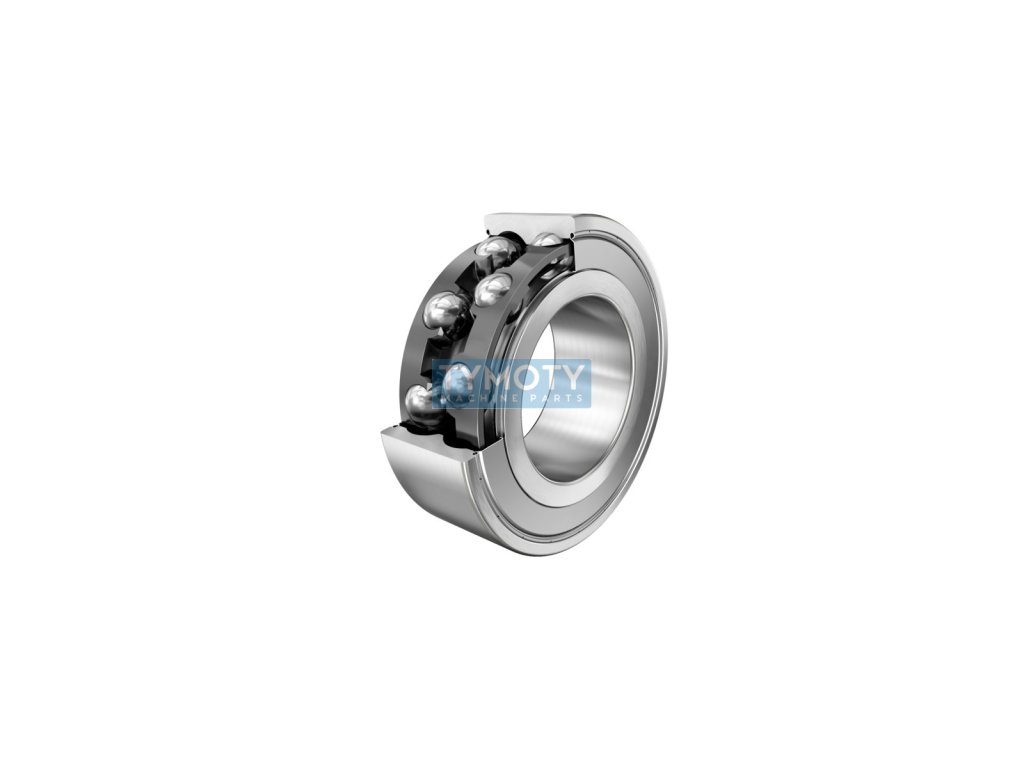

FAG 3309-BD-XL-2Z-TVH-C3 angular contact ball bearing

Product detailed description

FAG 3309-BD-XL-2Z-TVH-C3 is an angular contact ball bearing designed for applications requiring high precision and reliability. This bearing is part of the FAG product range, known for its quality and performance. The bearing has an inner diameter of 45 mm, an outer diameter of 100 mm and a width of 39.7 mm, making it suitable for various industrial applications.

The bearing is made of standard rolling bearing steel, which guarantees its durability and long service life. It is equipped with a polyamide cage, which reduces friction and increases efficiency in operation. The double-sided sheet metal cover provides protection against contamination and ensures that the lubricant remains inside the bearing, thus extending its service life and reducing the need for maintenance.

The bearing has an angular contact angle of 30 degrees, which allows it to carry combined radial and axial loads. Its design allows for a double-row arrangement of balls, which increases its load capacity. The internal radial clearance is slightly increased (C3), which is ideal for applications where higher thermal expansion or higher operating temperatures are required.

The bearing's operating temperature range is from -30 °C to +120 °C, which allows its use in various climatic conditions. The running accuracy is in class P6, or ABEC 3, which guarantees high accuracy and smooth operation at high speeds. The total weight of the bearing is 1.315 kg, which is important for applications where weight is a critical factor.

FAG 3309-BD-XL-2Z-TVH-C3 is ideal for use in mechanical engineering, the automotive industry and other industries where high performance and reliability are required. Its design features and material composition make it suitable for various applications where it is necessary to transmit combined loads with high accuracy.
