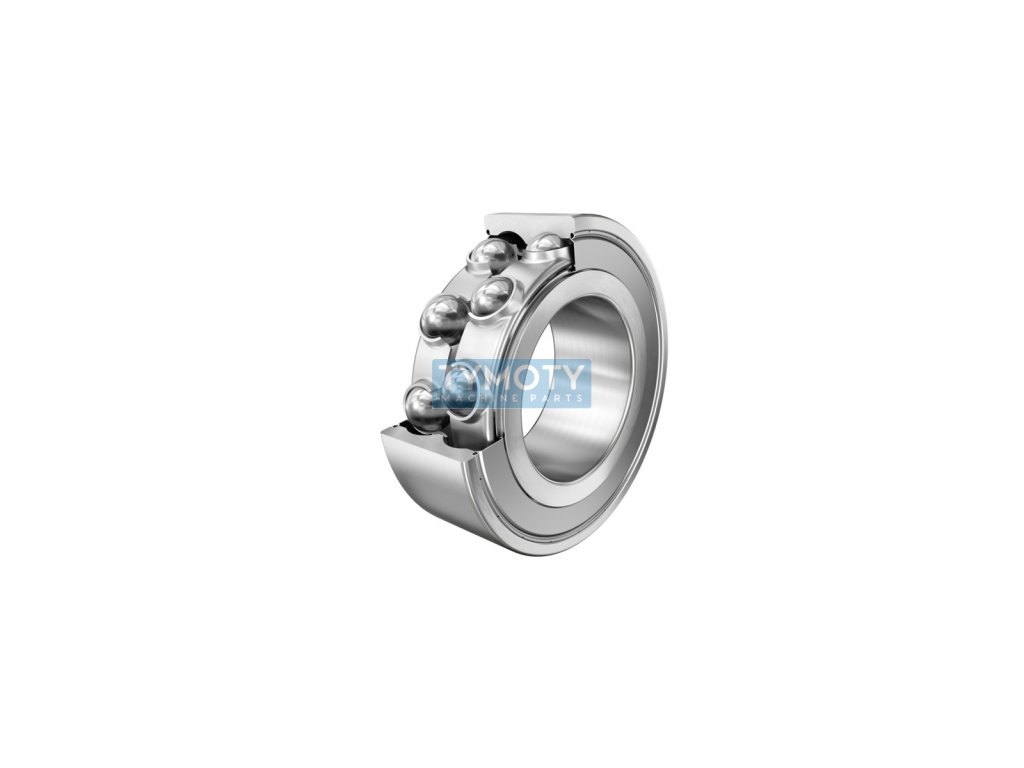

FAG 3306-BD-XL-2Z-C3 angular contact ball bearing

Product detailed description

FAG 3306-BD-XL-2Z-C3 is a double row angular contact ball bearing designed for applications requiring high precision and reliability. This bearing has an inner diameter of 30 mm, an outer diameter of 72 mm and a width of 30.2 mm. The bearing is made of high-quality steel, which is the standard for rolling bearings, and is equipped with a pressed steel cage.

The bearing has sheet metal covers on both sides, which provide protection against contamination and extend its service life. The internal radial clearance is slightly increased (C3), which allows better absorption of thermal expansion and increases resistance to vibrations. The 30 degree contact angle enables efficient transmission of axial and radial forces, making it ideal for applications with combined loads.

The operating temperature range of the bearing is from -30°C to +120°C, ensuring its reliable function in various climatic conditions. The running accuracy is in class P6, which corresponds to ABEC 3 standards, and ensures high precision and smooth running. The bearing is without a flange or groove on the outer ring, which allows its flexible use in various design arrangements.

With a weight of 0.559 kg, the bearing is suitable for a wide range of industrial applications where high precision and reliability are required, such as machine tools, pumps and compressors. The manufacturer FAG, part of the Schaeffler Group, is known for its top quality and innovation in the field of bearings, which guarantees a long service life and high performance of this component.
