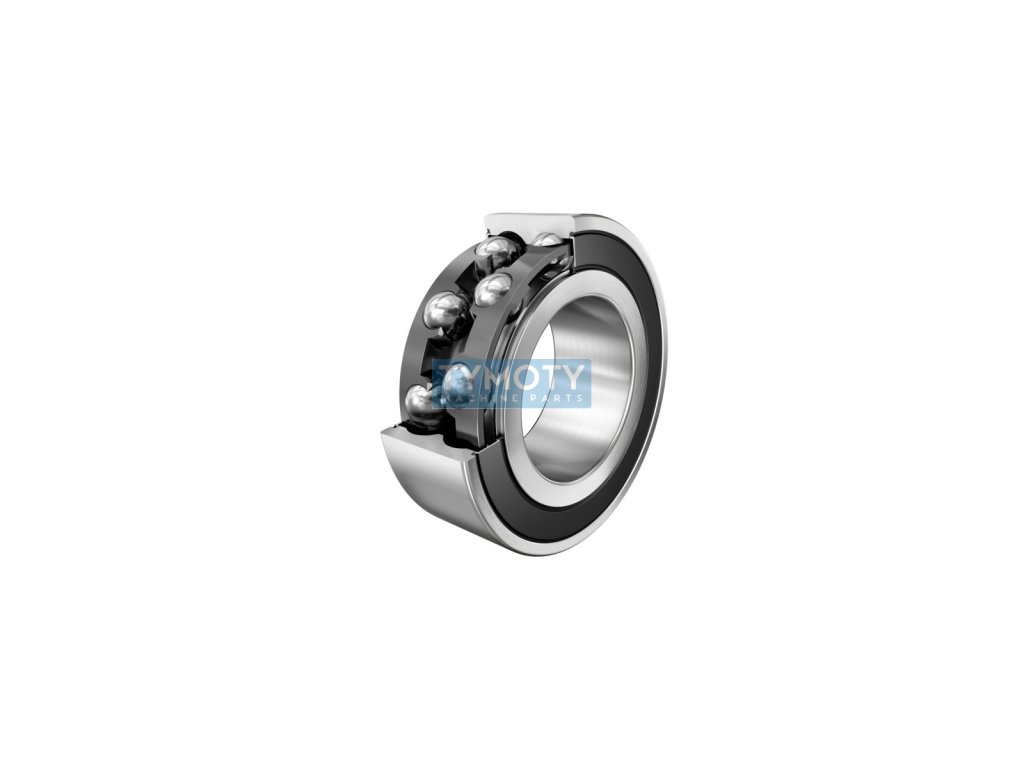

FAG 3205-BD-XL-2HRS-TVH-C3 angular contact ball bearing

Product detailed description

FAG 3205-BD-XL-2HRS-TVH-C3 is an angular contact ball bearing designed for applications requiring high precision and reliability. This bearing is characterized by an inner diameter of 25 mm, an outer diameter of 52 mm and a width of 20.6 mm. The bearing is made of high-quality steel, which ensures its long service life and wear resistance.

The bearing is equipped with a double-sided lip seal, which provides effective protection against the penetration of dirt and maintains optimal lubrication. The polyamide cage contributes to reducing the weight of the bearing and improves its dynamic properties. The bearing has an angular contact with an angle of 30°, which allows it to transmit combined loads, i.e. axial and radial forces.

This bearing is classified with C3 clearance, which means a slightly increased internal clearance, which is suitable for applications with higher operating temperatures or higher speeds. The operating temperature range of the bearing is from -20 °C to +120 °C, which allows it to be used in various industrial conditions.

The FAG 3205-BD-XL-2HRS-TVH-C3 bearing is ideal for use in applications where high precision and reliability are required, such as machine tools, pumps or gearboxes. Its design features and material composition guarantee high resistance and long service life even under difficult operating conditions.
