FAG 3200-BB-TVH-C3 angular contact ball bearing

Product detailed description

FAG 3200-BB-TVH-C3 is a double row angular contact ball bearing designed for applications where combined loads, i.e. radial and axial forces, need to be transferred. The bearing is made of high-quality standard steel for rolling bearings, which guarantees its long service life and reliability in operation.

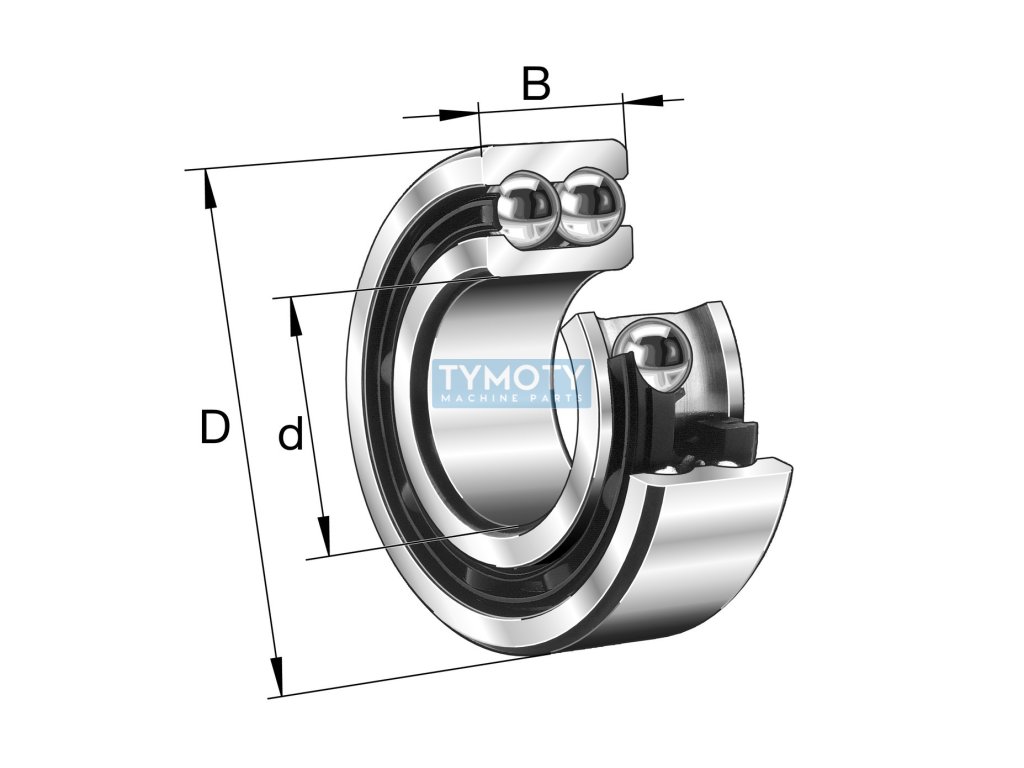

The bearing has an inner diameter of 10 mm, an outer diameter of 30 mm and a width of 14 mm. Its design is without a flange or groove on the outer ring, which allows for easy installation and maintenance. The contact angle of 25 degrees ensures optimal ability to transfer axial loads.

The polyamide cage, which is part of the bearing, contributes to reducing friction and wear, thereby increasing the efficiency and service life of the bearing. The bearing is without seals, which means that it is suitable for applications where sufficient lubrication and protection against contamination are ensured.

The bearing's internal clearance is of category C3, which means a slightly increased radial clearance, suitable for applications with higher temperature differences or higher speeds. The operating temperature range is from -20 °C to +120 °C, which allows it to be used in various industrial conditions.

The running accuracy is in class P0/PN, or ABEC 1, which is the standard accuracy level for common industrial applications. With a weight of 0.052 kg, the bearing is lightweight, which contributes to reducing the overall weight of the equipment in which it is used.

The manufacturer FAG, part of the Schaeffler Group, is known for its high quality and reliability in the field of bearings, which ensures that the 3200-BB-TVH-C3 bearing is a suitable choice for demanding industrial applications.
