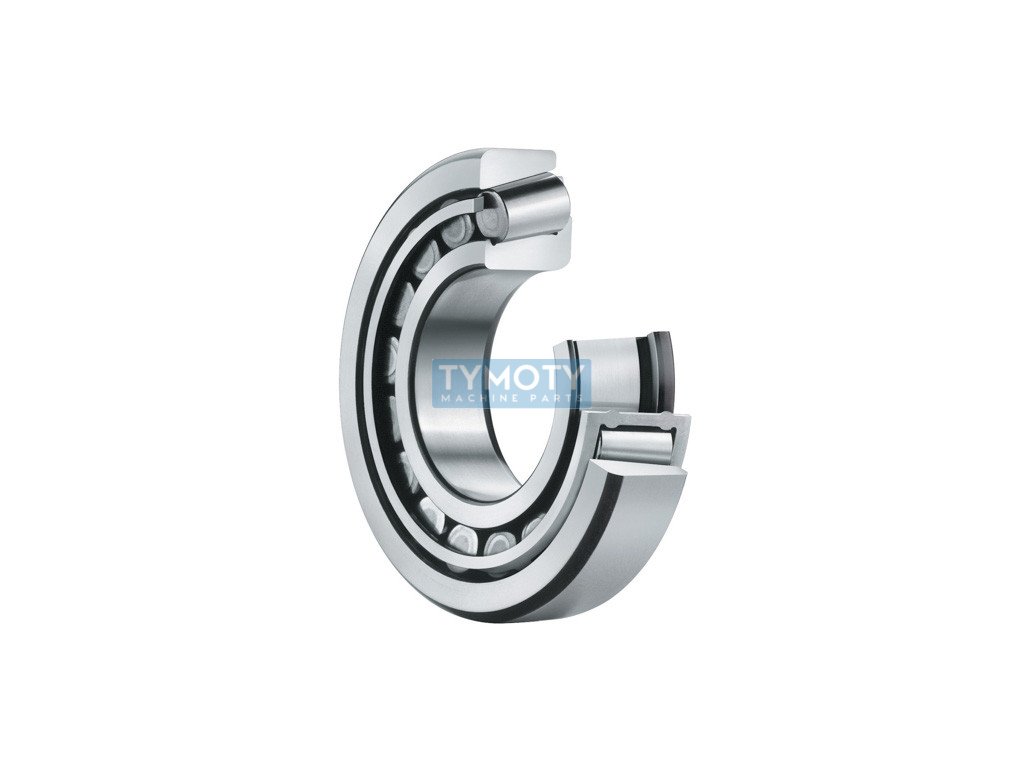

FAG 30305-A tapered roller bearing

Product detailed description

The FAG 30305-A tapered roller bearing is a high-quality component designed for applications requiring reliable transmission of combined radial and axial loads. This bearing is manufactured by the renowned manufacturer FAG, which is part of the Schaeffler Group, and is known for its precise design and long service life.

The bearing has an inner diameter (d) of 25 mm, an outer diameter (D) of 62 mm and an overall width (B) of 18.25 mm. These dimensions are optimized for standard applications where high precision and reliability are required. The bearing is single-row, which means that it contains one row of taper rollers, which are arranged to effectively transmit the load.

The bearing material is high-quality steel, which guarantees wear resistance and long service life even under high loads. The bearing is equipped with a pressed steel cage, which ensures stability and proper guidance of the rolling elements. The bearing is not equipped with a seal, which allows its use in applications where external lubrication is provided.

The operating temperature range of the bearing is from -30 °C to +120 °C, which allows its use in various climatic conditions and at various operating temperatures. The running accuracy is in the P0/PN class, respectively. ABEC 1, which guarantees reliable and smooth operation in standard applications.

The total weight of the bearing is 0.273 kg, which is suitable for applications where weight efficiency is important. The bearing is supplied as a complete component ready for installation. Its standard layout and design allow for easy assembly and integration into various mechanical systems.

FAG 30305-A is an ideal choice for a wide range of industrial applications where high reliability and precision in load transfer are required.
