FAG 2306-2RS-TVH tilting ball bearing

Product detailed description

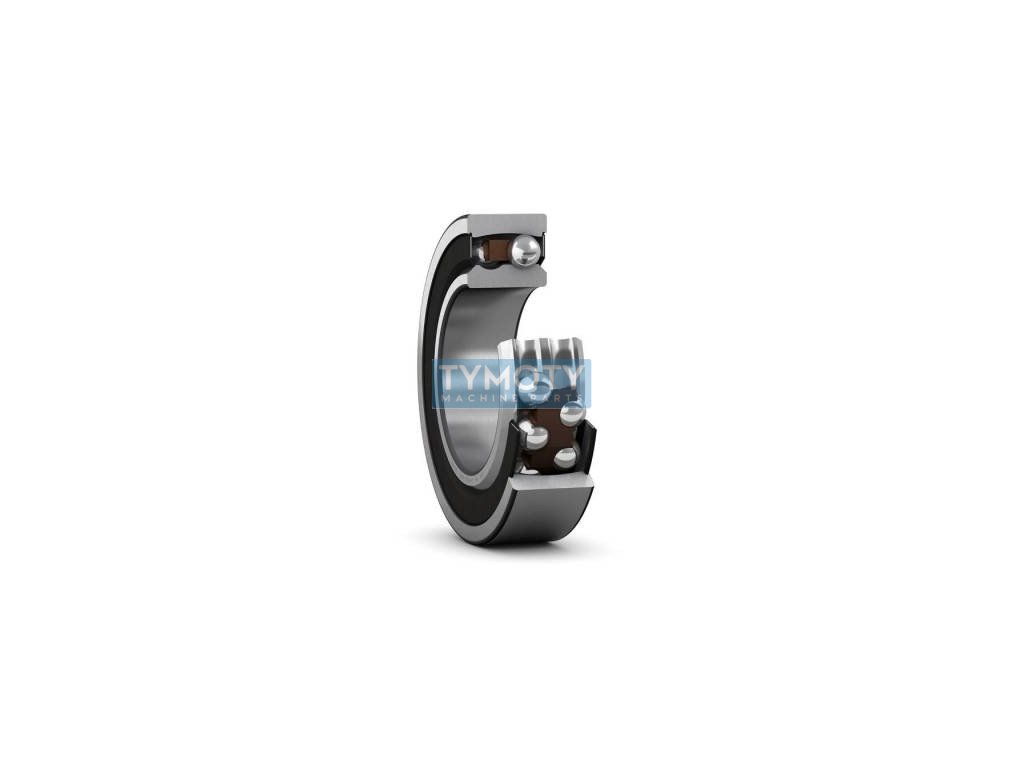

FAG 2306-2RS-TVH is a self-aligning ball bearing designed for applications requiring self-aligning capability. This bearing is equipped with two rows of balls, which increases its load capacity and allows it to compensate for misalignment of the shaft relative to the housing.

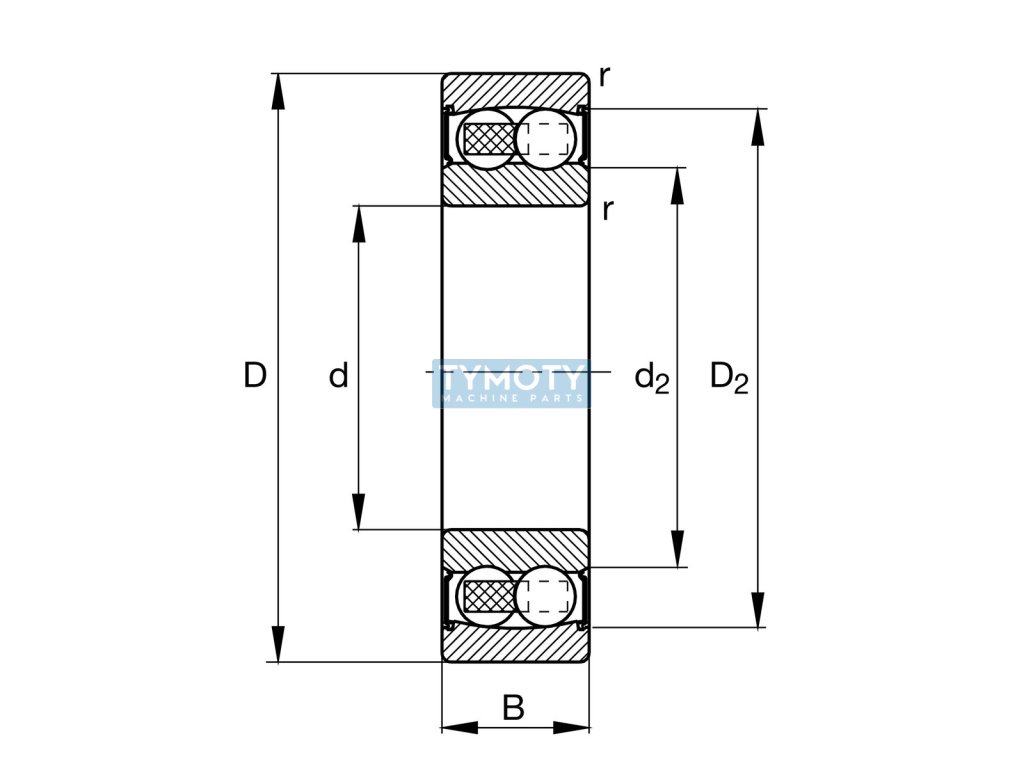

The bearing has an inner diameter (d) of 30 mm, an outer diameter (D) of 72 mm and a width (B) of 27 mm. It is made of high-quality standard steel for rolling bearings, which guarantees a long service life and reliability in operation. The inner ring is in a standard design with a cylindrical hole, which allows easy mounting on the shaft.

The bearing is equipped with a double-sided rubber contact seal, which provides protection against dust and moisture, thereby extending the service life of the bearing. The polyamide cage ensures low weight and good sliding properties, which contributes to the smooth operation of the bearing.

The operating temperature range of the bearing is from -30 °C to +100 °C, which allows it to be used in a wide range of industrial applications. The bearing has normal radial clearance and meets the accuracy class P0/PN, or ABEC 1, which is the standard accuracy for common applications.

With a weight of 0.5 kg, the bearing is suitable for various applications where a combination of self-aligning ability and high performance is required. The manufacturer FAG, part of the Schaeffler Group, is known for its quality and reliability, which ensures that the 2306-2RS-TVH bearing is an ideal choice for demanding industrial applications.
