FAG 22211-E1-XL-K cylindrical roller bearing

Product detailed description

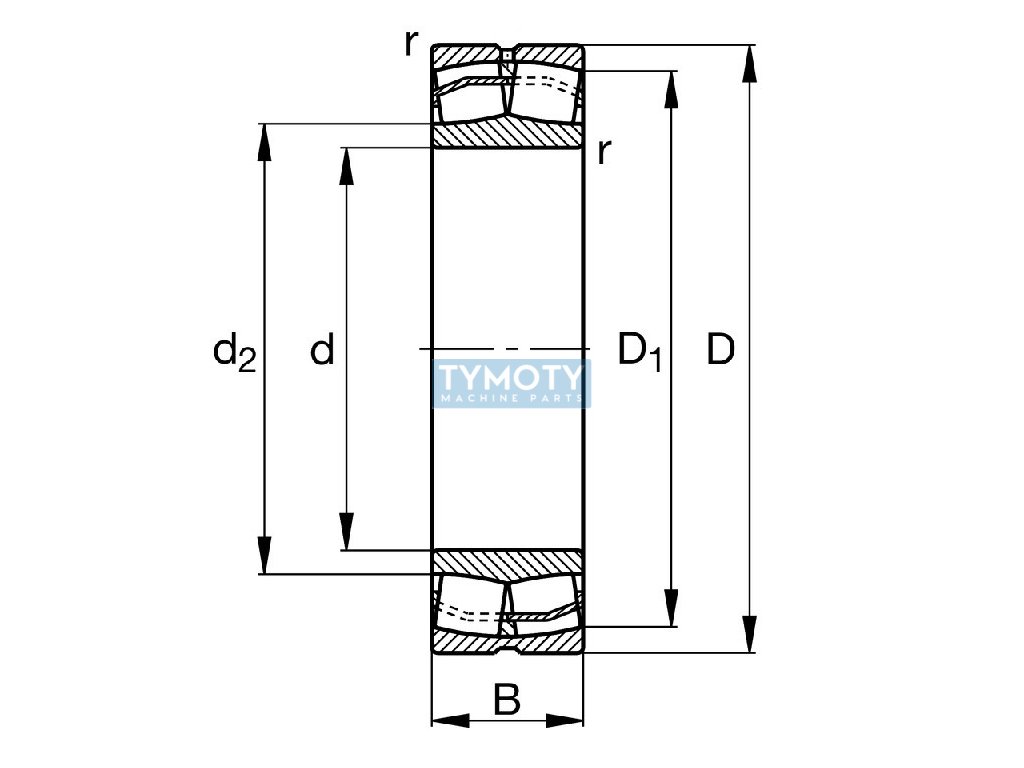

FAG 22211-E1-XL-K spherical roller bearing is a high-quality component designed for applications where reliable transmission of radial and axial loads is required. This bearing has an inner diameter of 55 mm, an outer diameter of 100 mm and a width of 25 mm, and its design allows for effective handling of dynamic forces in various directions.

The bearing is made of high-quality steel, which is standardly used for rolling bearings, which guarantees its long service life and wear resistance. The inner ring has a tapered bore with a ratio of 1:12, which allows easy preload adjustment and mounting on tapered shafts. The outer ring is equipped with lubrication grooves and holes, which facilitates maintenance and ensures optimal lubrication during operation.

The bearing is designed without seals, which means it is suitable for applications where external lubrication is provided. Its steel cage is pressed, which contributes to the overall robustness and reliability of the design. The bearing operates in a temperature range from -30 °C to +200 °C, making it suitable for a wide range of industrial applications.

The running accuracy is in class P0/PN, which corresponds to ABEC 1, and provides sufficient accuracy for most standard applications. The bearing has a normal radial clearance, which is ideal for normal operating conditions. With a weight of 0.825 kg, this component is easy to handle and install.

The FAG 22211-E1-XL-K spherical roller bearing is an ideal choice for applications where high reliability and resistance to dynamic loads are required, while its design features allow for easy maintenance and long-term operation.
