FAG 16003-A-2RSR deep groove ball bearing

Product detailed description

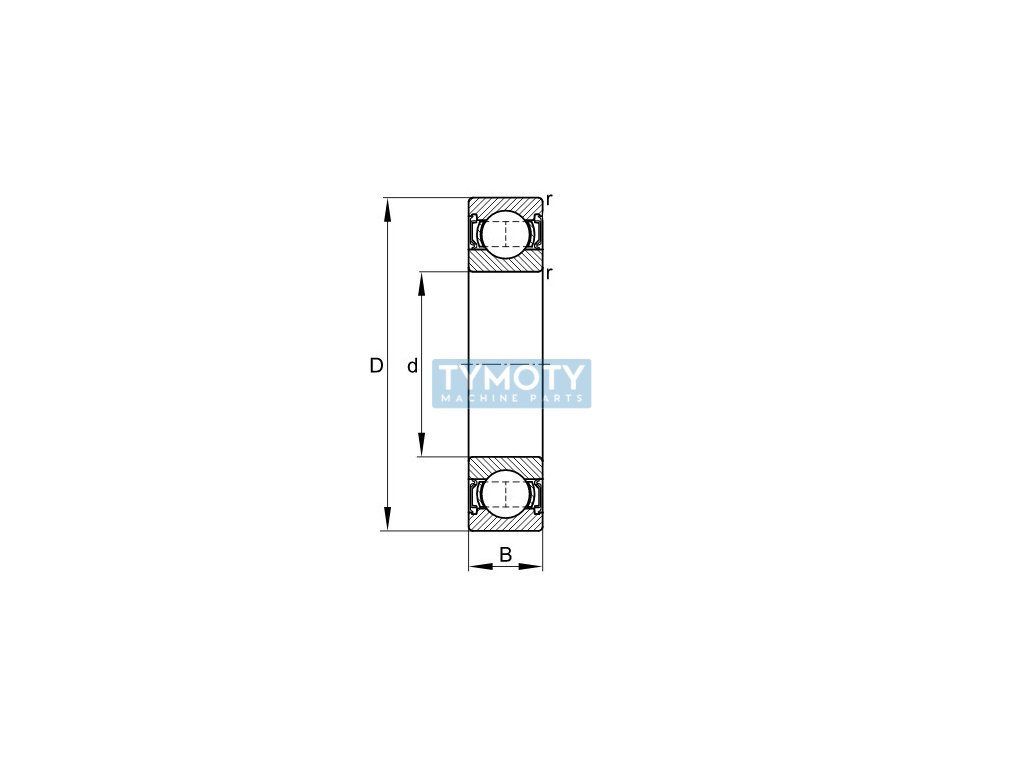

The FAG 16003-A-2RSR deep groove ball bearing is a single row deep groove ball bearing designed for applications requiring high precision and reliability. This bearing has an inner diameter of 17 mm, an outer diameter of 35 mm and a width of 8 mm. It is made of high-quality standard rolling bearing steel, which guarantees long service life and wear resistance.

The bearing is equipped with a double-sided rubber contact seal, which provides effective protection against dust and moisture, thereby extending its service life and reducing the need for maintenance. The seal also allows operation in a temperature range from -20 °C to +120 °C, which is ideal for various industrial applications.

The bearing cage is pressed from steel, which contributes to its strength and stability during operation. The bearing has a cylindrical bore and an outer ring without a flange or groove, which allows for easy mounting and dismounting. The internal radial clearance is normal, which is suitable for standard operating conditions.

The running accuracy of the bearing is in class P0/PN, or ABEC 1, which means that it is suitable for applications where accuracy requirements are medium high. The bearing is not insulated against the passage of electric current, which is important to consider when using it in electrical equipment.

The total weight of the bearing is 0.032 kg, which is optimal for applications where low component weight is important. The manufacturer FAG, part of the Schaeffler Group, is known for its high quality and reliability, which guarantees that the 16003-A-2RSR bearing will meet even the most demanding performance and service life requirements.
