FAG 1307-TVH tilting ball bearing

Product detailed description

FAG 1307-TVH is a self-aligning ball bearing designed for applications where the ability to compensate for misalignment of the shaft relative to the bearing housing is required. This component is ideal for use in situations where slight angular deviations may occur, thanks to its self-aligning ability. The bearing is made of high-quality steel, which is standardly used for rolling bearings, which guarantees high resistance and long service life.

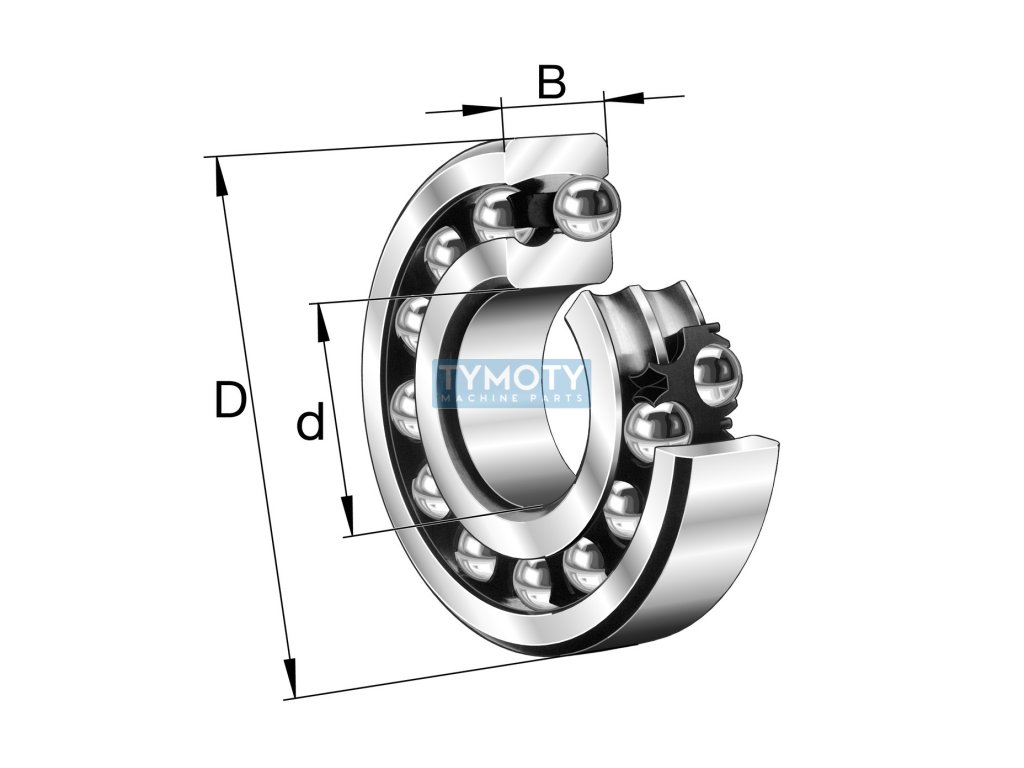

The bearing has an inner diameter of 35 mm, an outer diameter of 80 mm and a width of 21 mm. It is equipped with a polyamide cage that reduces friction and allows quiet operation. This type of cage is suitable for applications where low weight and good wear resistance are important. The bearing is unsealed, which means that it does not have a seal, and is therefore suitable for applications where excessive dirt or moisture is not present.

The operating temperature range of the bearing is from -30 °C to +120 °C, which allows its use in various climatic conditions. The bearing has normal radial clearance, which is a standard choice for most applications where special adjustments for clearance are not required. The running accuracy is in the P0/PN class, which corresponds to ABEC 1, and is suitable for common industrial applications.

The total weight of the bearing is 0.51 kg, which is optimal for its size and design. Thanks to its properties, the FAG 1307-TVH is an ideal choice for various industrial applications where reliability and the ability to compensate for misalignment are required.
