FAG 1205-TVH-C3 tilting ball bearing

Product detailed description

FAG 1205-TVH-C3 is a self-aligning ball bearing designed for applications requiring self-aligning capability. This bearing is equipped with two rows of balls, which increases its ability to carry radial loads and allows compensation for shaft misalignment with respect to the bearing housing. Its design with a cylindrical bore allows easy mounting on standard shafts.

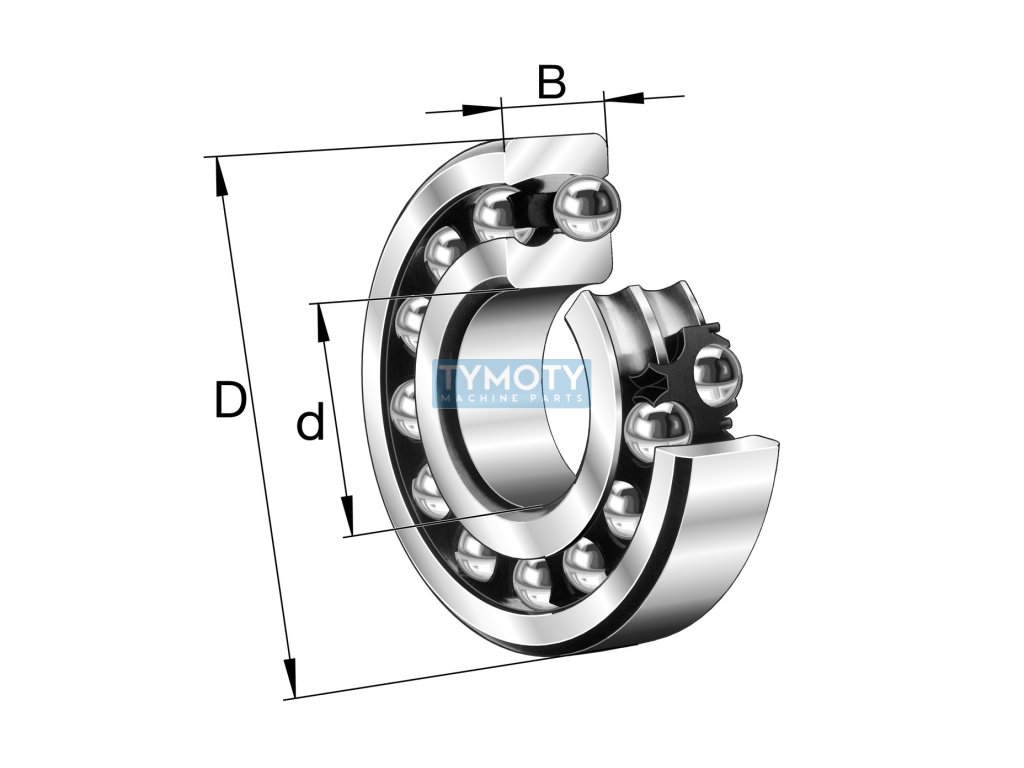

The bearing has an inner diameter (d) of 25 mm, an outer diameter (D) of 52 mm and a width (B) of 15 mm. These dimensions are standard for bearings in this category and allow it to be used in a wide range of applications. The bearing material is made of standard steel for rolling bearings, which guarantees high wear resistance and long service life.

The bearing cage is made of polyamide, which reduces friction and increases its operating efficiency. The bearing is unsealed, which means it is suitable for applications where protection against dust or moisture is not required. The internal clearance of the bearing is C3, which means it has a slightly increased radial clearance, suitable for applications with higher temperatures or speeds.

The operating temperature range of the bearing is from -30 °C to +120 °C, which allows it to be used in various climatic conditions. The running accuracy is in class P0/PN, or ABEC 1, which is the standard accuracy for common applications. The bearing weighs 0.138 kg, which is optimal for its dimensions and design.

FAG 1205-TVH-C3 is an ideal choice for applications where high reliability and the ability to compensate for misalignments are required, such as shafts in industrial machines or conveyors. Its design features and material composition guarantee long-term operation with minimal maintenance.
