FAG 1203-TVH tilting ball bearing

Product detailed description

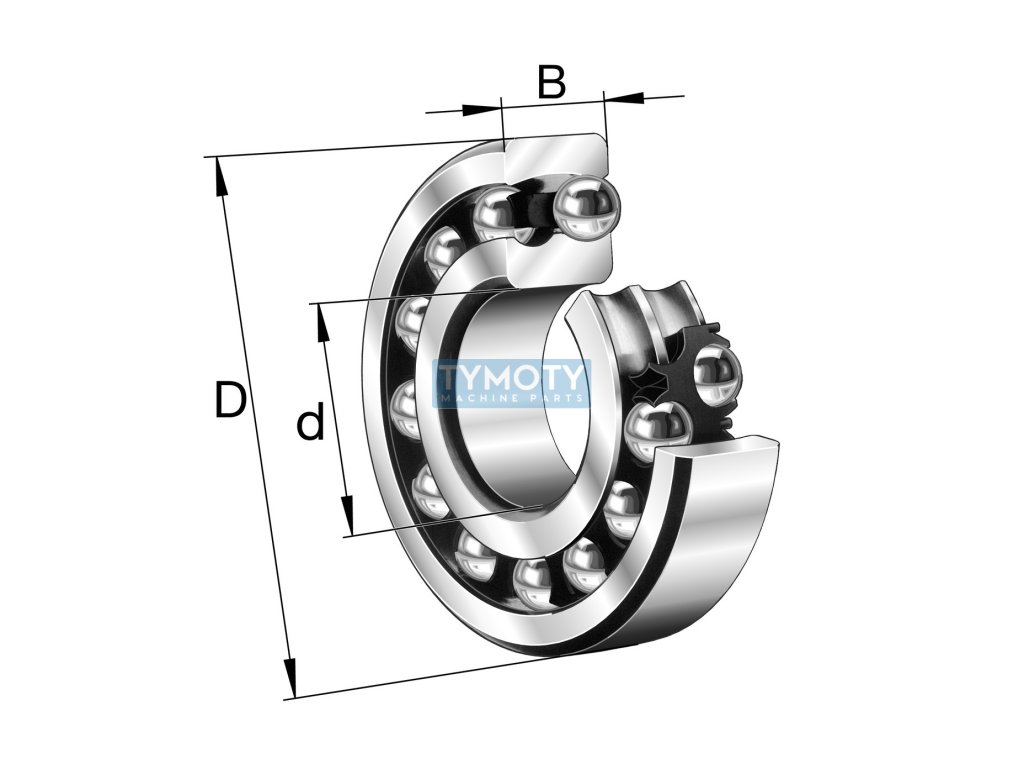

The FAG 1203-TVH self-aligning ball bearing is a high-quality component designed for applications where the ability to compensate for misalignment of the shaft relative to the bearing housing is required. This bearing has an inner diameter (d) of 17 mm, an outer diameter (D) of 40 mm and a width (B) of 12 mm. Its design allows for automatic alignment, which is ideal for applications with possible deviations in alignment.

The bearing is made of high-quality steel standard for rolling bearings, which guarantees its long service life and reliability. The polyamide cage ensures low friction and quiet operation, while it is suitable for operation in the temperature range from -30 °C to +120 °C. The bearing is not equipped with a seal, which means that it is uncovered and requires regular maintenance and lubrication.

FAG 1203-TVH has normal radial clearance and falls into the accuracy class P0/PN, which corresponds to ABEC 1. This double-row bearing is designed with a cylindrical bore, which allows easy mounting on the shaft. The inner ring is in a standard design, which ensures compatibility with various applications.

With a weight of 0.073 kg, this bearing is light but robust, which makes it suitable for use in various industrial sectors where reliable and precise support of rotating parts is required. The manufacturer FAG, part of the Schaeffler Group, is known for its precision manufacturing and innovative approach to solving bearing problems.
