EZO S 685-2Z (W 638/5-2Z) stainless steel ball bearing
Code: 310549
Product detailed description

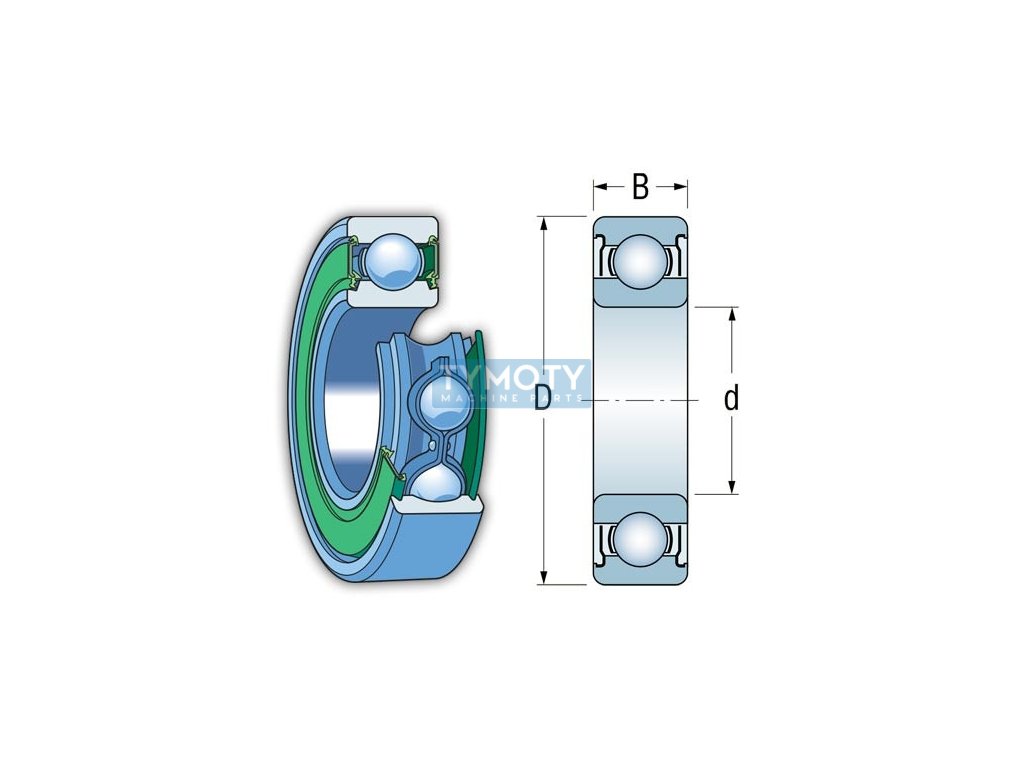

EZO bearing S 685 2Z - stainless steel non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and normal radial clearance. The cover plates of the 685-2Z bearing are pressed into grooves on the outer ring and fit against the smooth inner ring. The 685 ZZ bearing is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40 °C to +100 °C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds.Additional parameters
| Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 5 mm > 638/5-2Z, 685-2Z (D=11 B=5) |
|---|---|
| Weight: | 0.002 kg |
| Cage: | stainless steel |
| Clearance: | normal |
| Diameter D (mm): | 11, 5 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | EZO |
| Material: | stainless steel |
| Seal: | double-sided - sheet metal |
| Width B (mm): | 5 |
| Značení: | S 685-2Z |
| Typ: | nerezové kuličkové ložisko |
