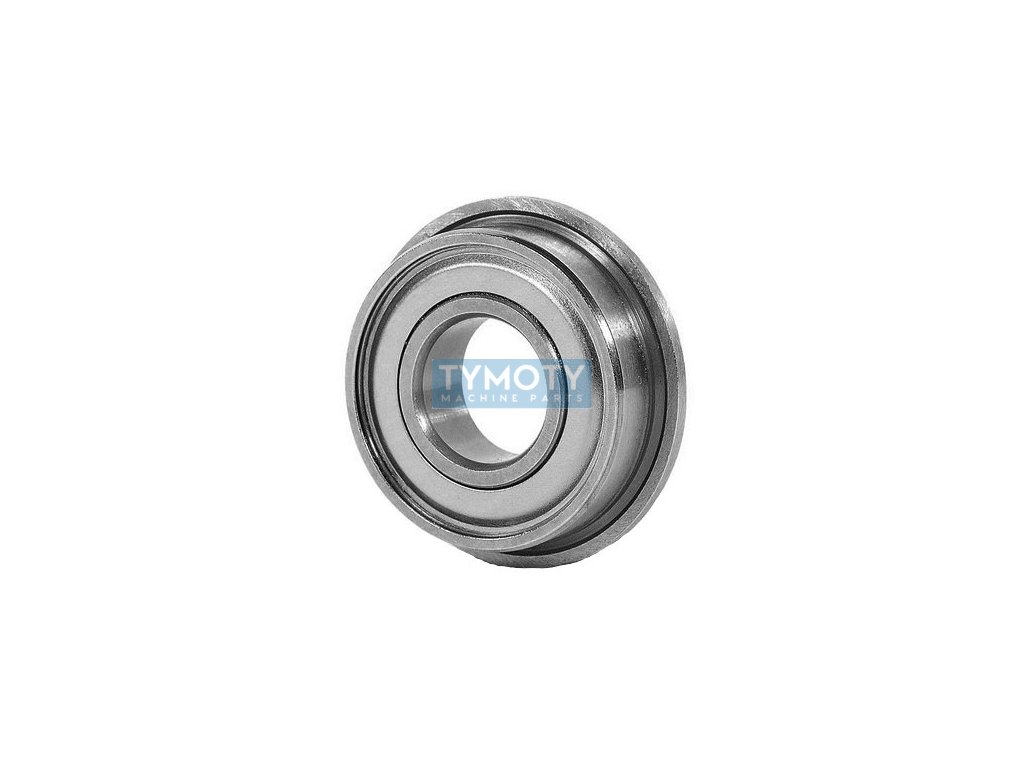

EZO MF 148 2Z ball bearing with flange

Product detailed description

EZO MF 148 2Z is a flanged ball bearing, which belongs to the deep groove ball bearings, manufactured by the renowned Japanese manufacturer EZO. This bearing is designed for applications where high precision and reliability are required. It has an inner diameter (d) of 8 mm, an outer diameter (D) of 14 mm and a width (B) of 4 mm. The flange on the outer ring has a diameter (D1) of 15.6 mm and a width (C) of 0.8 mm, which allows for easier assembly and better stability in applications where the bearing needs to be firmly fixed.

The bearing is made of high-quality steel, which guarantees long service life and wear resistance. The steel cage ensures uniform distribution of the balls and minimizes friction. The bearing is equipped with a double-sided sheet metal seal (designation 2Z), which protects the internal components from dust and dirt, thereby extending its service life and reducing the need for maintenance. The bore profile is cylindrical, which allows easy installation on the shaft. The bearing has normal clearance, which is suitable for most standard applications where special operating conditions are not required. Due to its dimensions and design, it is ideal for use in precision mechanisms such as small motors, gearboxes and other devices where compactness and high efficiency are required.
