EZO FR 8 ZZ ball bearing with flange

Product detailed description

EZO FR 8 ZZ is a flanged ball bearing, characterized by high quality, which is typical of products from the Japanese brand EZO. This bearing belongs to the category of deep groove bearings, which means that it is designed to carry both radial and axial loads.

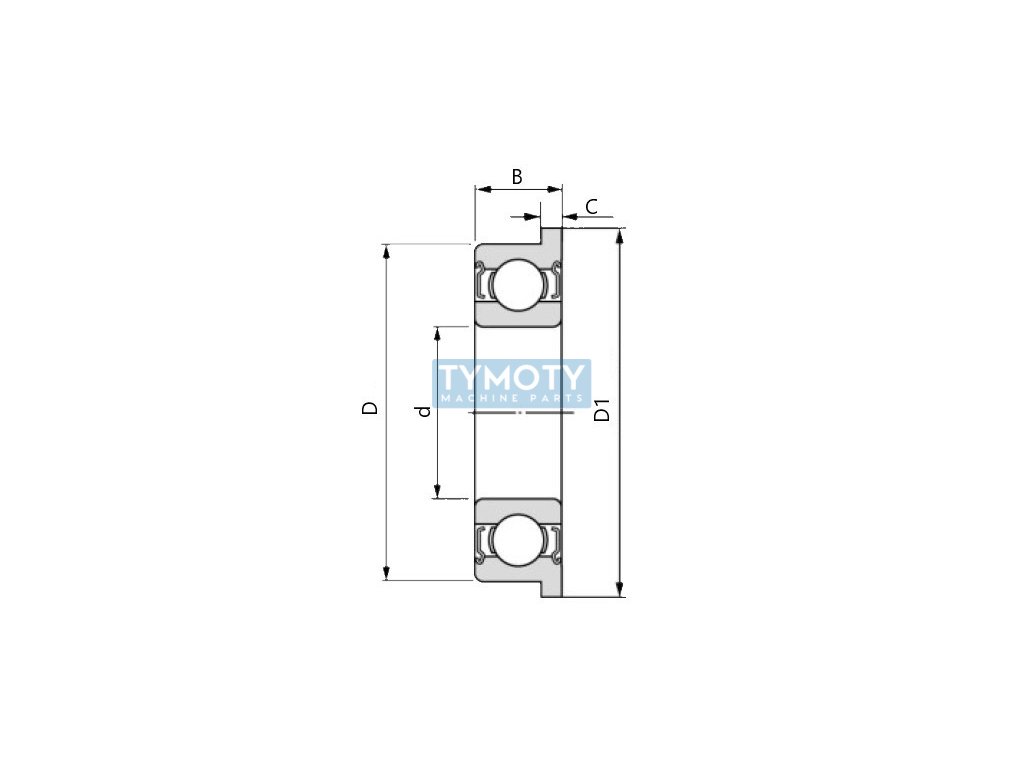

The bearing has an inner diameter (d) of 12.700 mm, an outer diameter (D) of 28.575 mm and a width (B) of 7.938 mm. The flange has a diameter (D1) of 31.120 mm and a width (C) of 1.575 mm. The flange on the outer ring allows for easier assembly and better fixation of the bearing in applications where precise bearing positioning is required.

The bearing material is high-quality steel, which ensures long service life and wear resistance. The bearing is equipped with a steel cage, which ensures ball stability and uniform load distribution. Both sides of the bearing are protected by a sheet metal seal that prevents dirt from entering and retains the lubricant inside the bearing, contributing to its maintenance-free operation.

The hole profile is cylindrical, which is a standard shape for easy installation on the shaft. The bearing has normal clearance, which means it is suitable for a wide range of applications where special tolerances are not required.

This type of bearing is ideal for use in various industrial applications where reliability and precision are required, such as small motors, gearboxes or equipment with rotating components.
