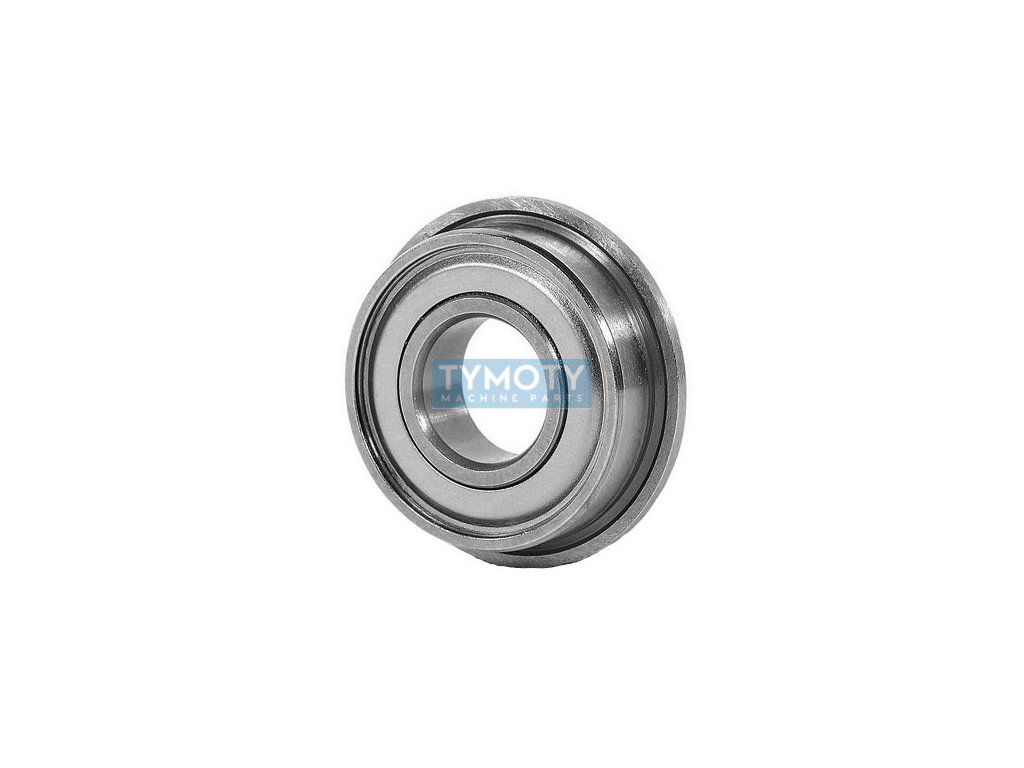

EZO F 6901 2Z (F61901-2Z) ball bearing with flange

Product detailed description

The EZO F 6901 2Z (F61901-2Z) flanged ball bearing is a high-quality component designed for applications requiring precise and reliable positioning of rotating parts. The manufacturer of this bearing is the renowned Japanese company EZO, known for its precise and durable bearings.

This bearing is designed with an outer diameter D 24 mm and an inner diameter d 12 mm, while its total width B is 6 mm. The flange on the outer ring has a diameter D1 of 26.5 mm and a width C of 1.5 mm, which allows for easier assembly and better fixation in various structural assemblies.

The bearing is made of high-quality steel, which ensures high wear resistance and long service life. Both sides of the bearing are equipped with a sheet metal seal that protects the internal components from dust and dirt, thus extending its service life and reducing the need for maintenance.

The bearing cage is also made of steel, which contributes to its overall strength and stability during operation. The bore profile is cylindrical, which is a standard shape for easy installation on the shaft. The bearing has normal clearance, which means that it is suitable for most common applications where special adjustments or tolerances are not required.

This type of ball bearing is ideal for a variety of industrial applications, including mechanical engineering, automotive and electronics, where reliable and precise support of rotational movements is required. Its flanged design allows for easier mounting and increases stability in applications where a firm fit is required.
