EZO F 6806 2RS (F61806-2RS) flanged ball bearing

Product detailed description

EZO F 6806 2RS is a flanged ball bearing, characterized by the high quality of workmanship typical of the Japanese manufacturer EZO. This bearing is designed for applications where reliability and precision are required. Its design includes an outer ring with a flange, which allows for easier mounting and better maintenance of the bearing position in applications where axial stability is required.

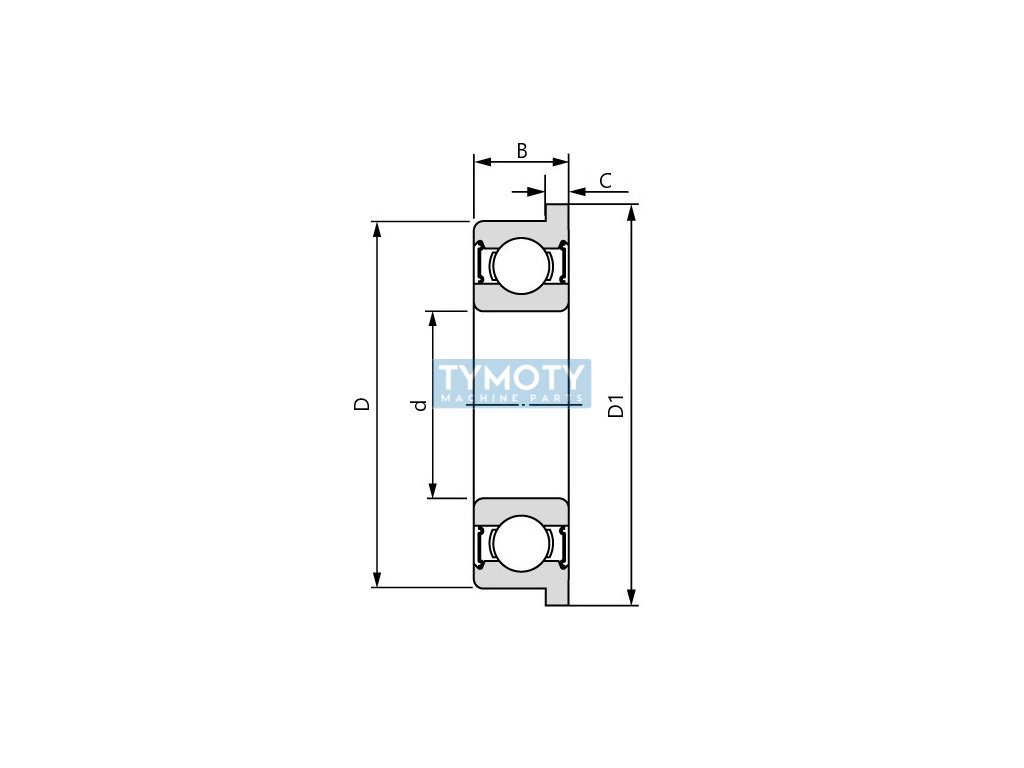

The bearing has an inner diameter (d) of 30 mm, an outer diameter (D) of 42 mm and a width (B) of 7 mm. The flange has a diameter (D1) of 45 mm and a width (C) of 1.5 mm. These dimensions are optimized for applications where compactness and low weight are required, while the bearing still provides sufficient load capacity.

The material used to manufacture the bearing is high-quality steel, which guarantees long service life and wear resistance. The bearing is equipped with a steel cage, which ensures uniform distribution of balls and minimizes friction. It is also equipped with a double-sided rubber seal that protects the internal components from dust and moisture, thus extending the bearing life and reducing the need for maintenance.

The bore profile is cylindrical, which is a standard shape for easy mounting on the shaft. The bearing has normal clearance, which means that it is suitable for most standard applications without the need for special adjustment. These features make the EZO F 6806 2RS an ideal choice for a wide range of industrial applications where high precision and reliability are required.
