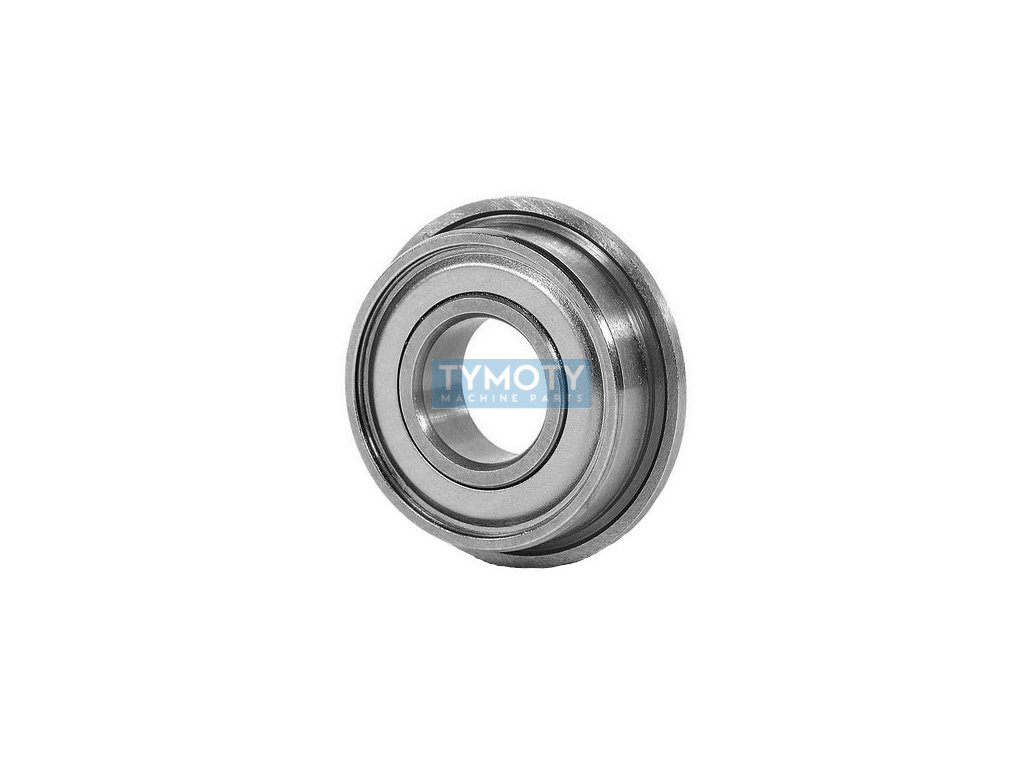

EZO F 63800 2Z ball bearing with flange

Product detailed description

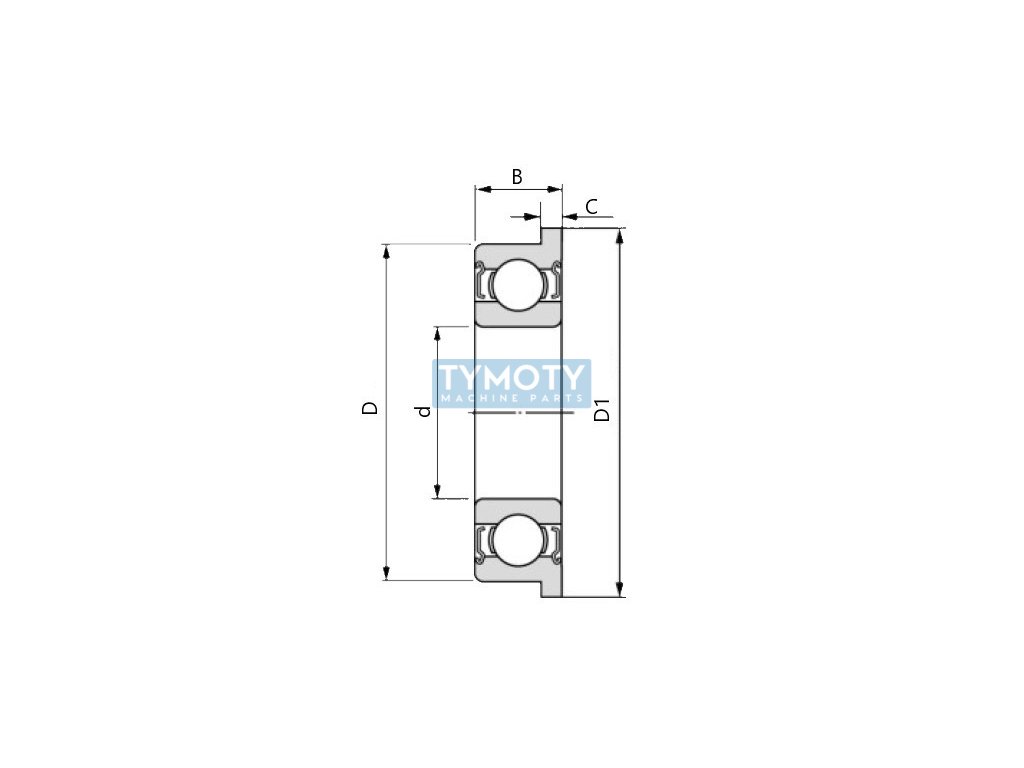

EZO F 63800 2Z is a flanged ball bearing that belongs to the category of deep groove ball bearings. This type of bearing is known for its ability to carry radial and axial loads in both directions, which makes it universal for a wide range of applications. The bearing has an inner diameter (d) of 10 mm, an outer diameter (D) of 19 mm, while the flange diameter (D1) is 21 mm. The bearing width (B) is 7 mm and the flange width (C) is 1.5 mm.

The bearing is made of high-quality steel, which guarantees its long service life and wear resistance. The steel cage ensures proper ball guidance and minimizes friction. The bearing is equipped with a double-sided sheet metal seal that protects the internal components from dirt and moisture, thus extending its service life and reducing the need for maintenance.

The shape of the outer ring with a flange allows for easy assembly and precise positioning of the bearing in the application, increasing its stability. The bore profile is cylindrical, which is a standard shape for this type of bearing. The bearing has normal clearance, which means that it is suitable for most common applications without the need for special adjustment.

The manufacturer of this bearing is the Japanese company EZO, which is known for its precision and high quality of bearing production. The F 63800 2Z model is ideal for use in various industries where reliability and accuracy are required.
