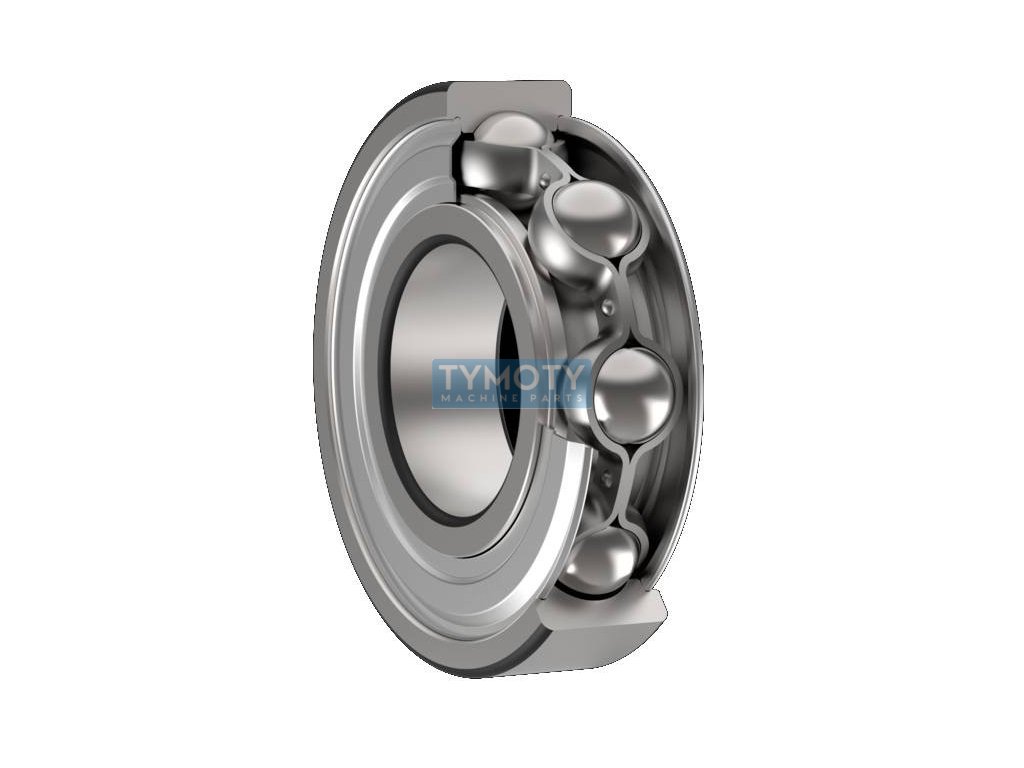

EZO 698-2Z (619/8-2Z) deep groove ball bearing
Code: 310844
Product detailed description
EZO bearing 698 2Z - non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and normal radial clearance. The cover plates of the 698-2Z bearing are pressed into grooves on the outer ring and fit against the smooth inner ring. The 698 ZZ bearing is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -30°C to +110°C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds. The EZO 698-2Z bearing is marked by manufacturers SKF, CX as the 619/8-2Z, 649/8 ZZ bearing.Additional parameters
| Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 8 mm > 619/8, 698 (D=19 B=6) |
|---|---|
| Weight: | 0.008 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 19, 8 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | EZO |
| Material: | steel |
| Seal: | double-sided - sheet metal |
| Width B (mm): | 6 |
| Značení: | 698-2Z |
| Typ: | kuličkové ložisko |
