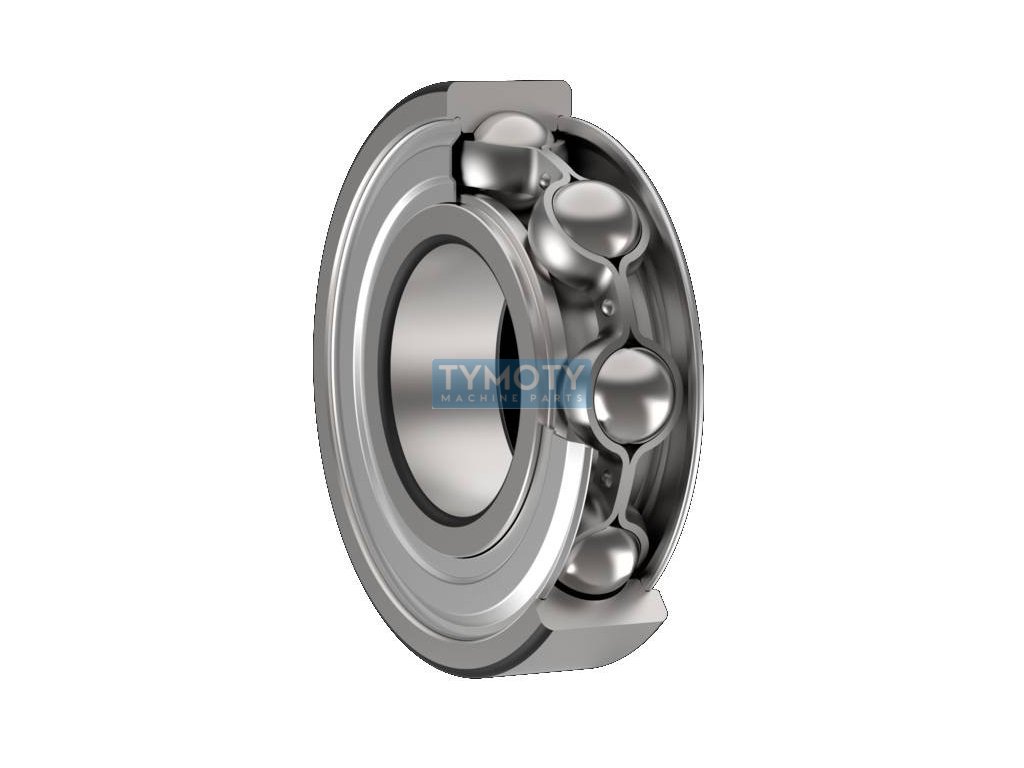

EZO 693-2Z (639/3-2Z) deep groove ball bearing
Code: 310344
Product detailed description
EZO bearing 693 2Z - non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and normal radial clearance. The cover plates of the 693-2Z bearing are pressed into grooves on the outer ring and fit against the smooth inner ring. The 693 ZZ bearing is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40 °C to +100 °C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds.The EZO 693-2Z bearing is marked by the manufacturer CX as a 619/3 ZZ bearing
Additional parameters
| Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 3 mm > 639/3, 693-2Z (D=8 B=4) |
|---|---|
| Weight: | 0.001 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 8, 3 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | EZO |
| Material: | steel |
| Seal: | double-sided - sheet metal |
| Width B (mm): | 4 |
| Značení: | 693-2Z |
| Typ: | kuličkové ložisko |
