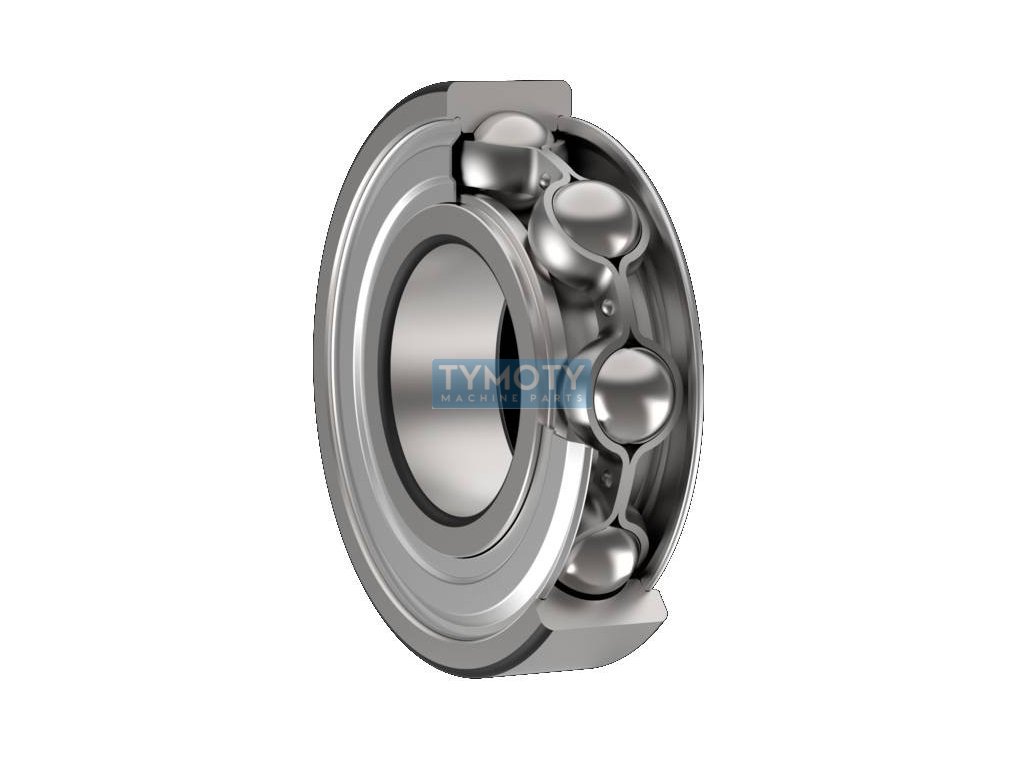

EZO 6903 ZZ (61903-2Z) deep groove ball bearing
Code: 318634
Product detailed description
EZO bearing 6903 2Z - non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and normal radial clearance. The bearing cover plates are pressed into grooves on the outer ring and fit against the smooth inner ring. The bearing is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40 °C to +100 °C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds. The EZO 6903-2Z bearing is marked as a 61903-2Z, ZZ bearing by manufacturers SKF, CX.Additional parameters
| Category: | Bearings > ball > single row 619xx (69xx) > 61903, 6903 |
|---|---|
| Weight: | 0.02 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 17, 30 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | EZO |
| Material: | steel |
| Seal: | double-sided - sheet metal |
| Width B (mm): | 7 |
| Značení: | 6903-2Z |
| Typ: | kuličkové ložisko |
