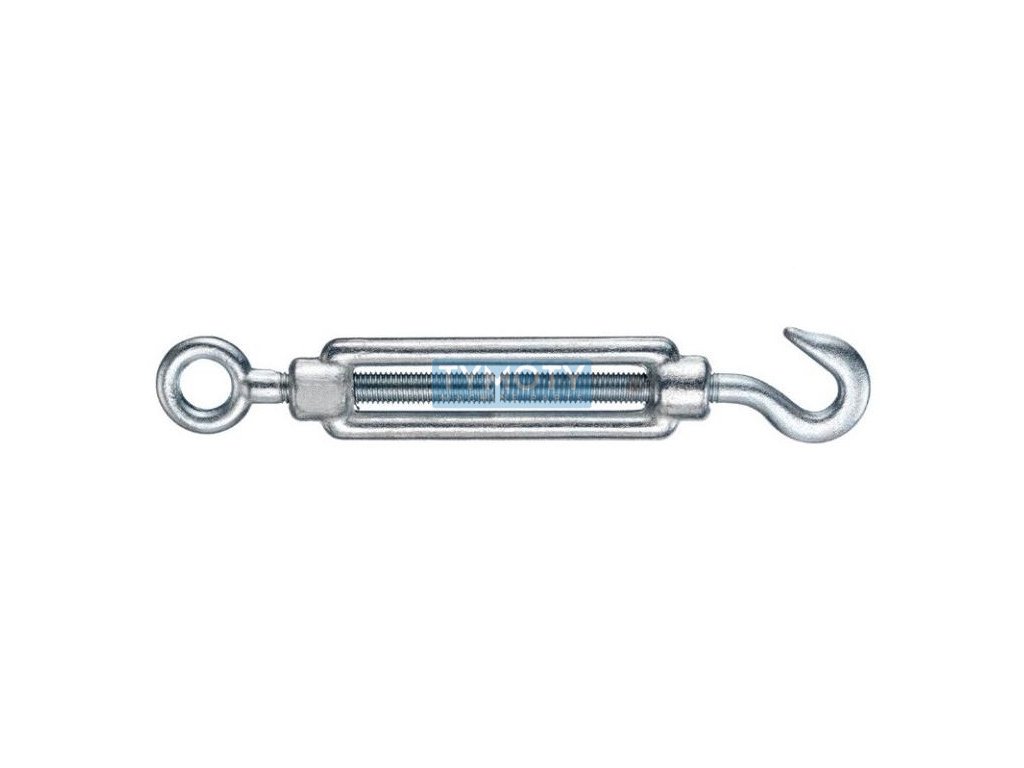

Eye-hook turnbuckle DIN 1480 M10 galvanized

Product detailed description

The DIN 1480 M10 eye-hook turnbuckle is a structural component designed for precise tensioning and releasing of rope or rod systems. This turnbuckle is made of steel, which guarantees high strength and resistance to mechanical stress. The surface treatment is carried out by galvanizing, which provides protection against corrosion and extends the service life of the component even in harsh outdoor conditions.

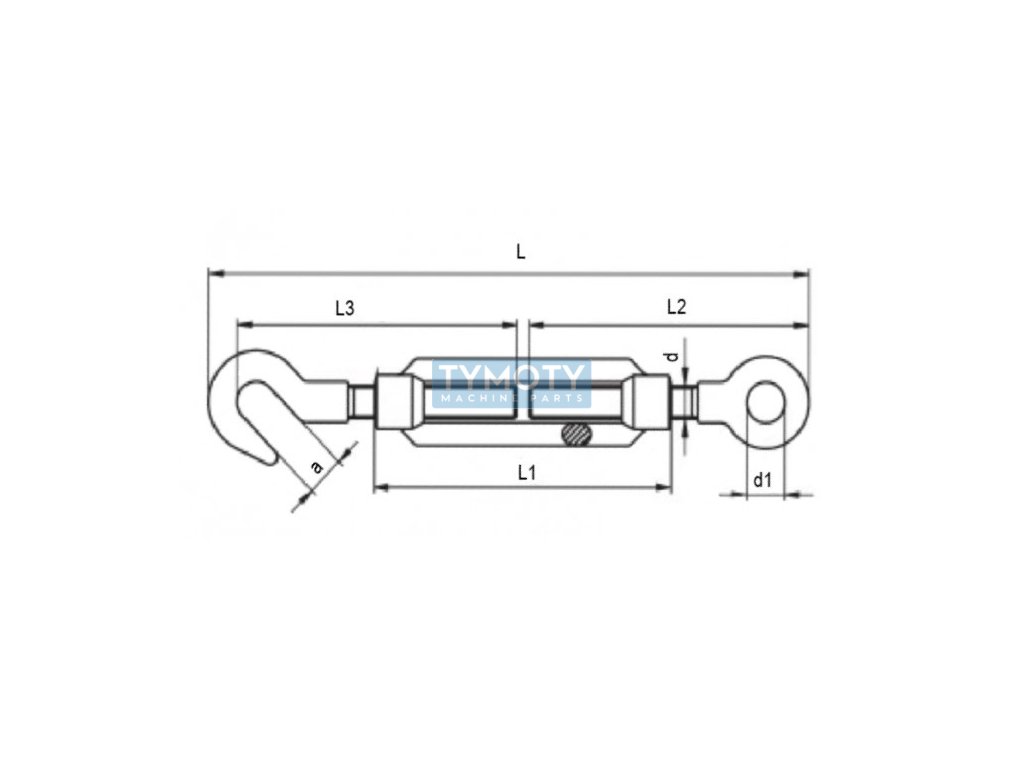

The turnbuckle is designed according to the DIN 1480 standard, which guarantees standardized dimensions and quality. It has a metric M10 thread, which is a common size for a wide range of applications, and allows easy integration into existing systems. The thread diameter is 10 mm, while the diameter d1, which refers to the eye hole, is 14 mm. The total length of the turnbuckle is adjustable between 213 mm and 298 mm, which allows flexible adaptation as needed. The length L1, which represents the length of the turnbuckle body, is 125 mm, while the length L2, which refers to the hook part, is 105 mm. The width of the component is 13 mm.

This turnbuckle is suitable for use in various industries, including construction, shipbuilding and manufacturing, where a strong and reliable connection is required. Thanks to its open-mold design, which includes a ring eye and a hook, it allows for quick and easy connection and disconnection, which increases efficiency in assembly and maintenance.
