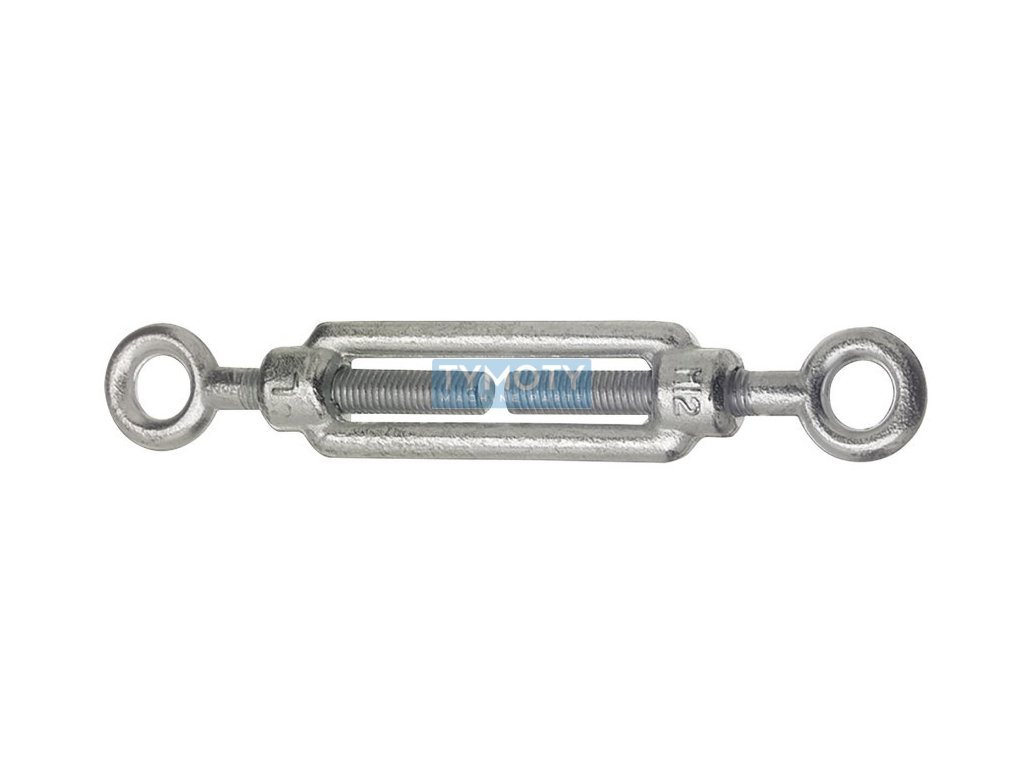

Eye-eye turnbuckle DIN 1480 M20 galvanized

Product detailed description

Eye-to-eye turnbuckle DIN 1480 M20 is a technical component designed for precise tensioning and releasing of rope, chain or bar systems. This turnbuckle is made of high-quality steel, which guarantees its strength and resistance to mechanical stress. The zinc coating provides protection against corrosion, which extends its service life even in harsh outdoor conditions.

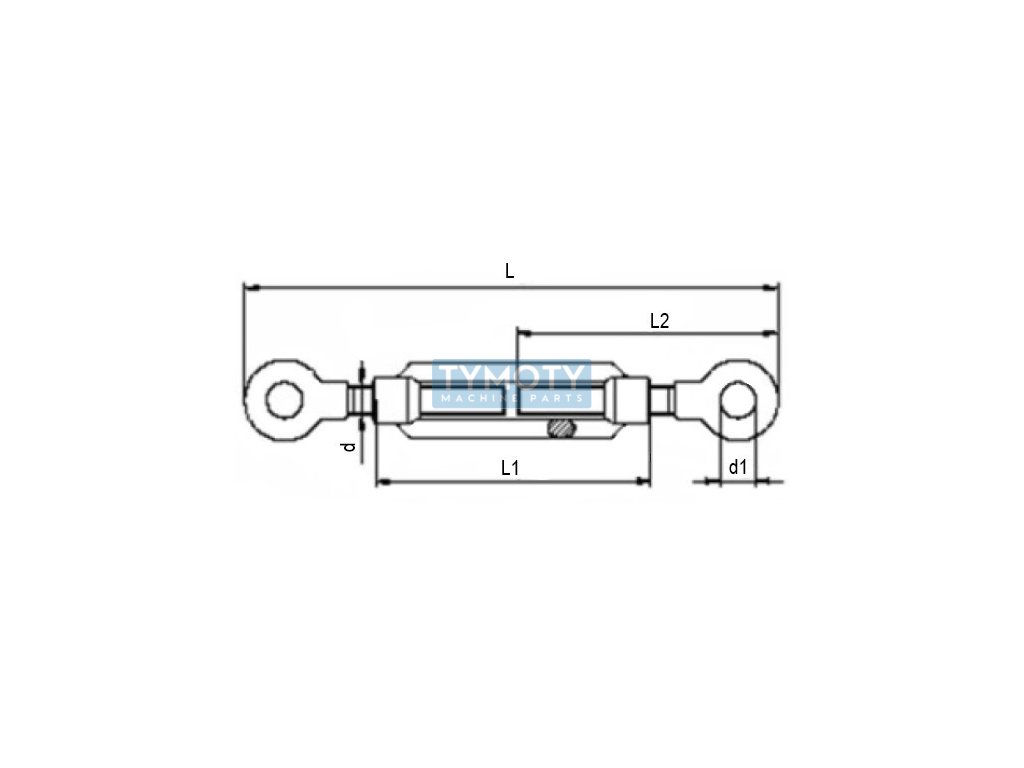

The turnbuckle is manufactured according to DIN 1480, which sets standards for dimensional and material properties of this type of component. It is equipped with a metric M20 thread, which allows compatibility with other components with the same thread standard. The thread diameter is 20 mm, while the hole diameter (d1) is 24 mm, which provides sufficient strength and stability in use.

The total length of the turnbuckle ranges from 400 to 530 mm, which allows flexibility in its application. The length L1, which represents the length of the turnbuckle body without the eyes, is 200 mm, and the length L2, corresponding to the length of the threaded part, is 167 mm. These dimensions are optimized for efficient tensioning and releasing in various applications.

The eye-to-eye turnbuckle is designed with two ring eyes, which allows for easy connection to other components such as hooks or carabiners. Thanks to its open form and forged design, this turnbuckle is suitable for a wide range of industrial applications, including construction, shipbuilding and other areas where precise and reliable tensioning is required.
