Eye bolt DIN 444B M8x120 galvanized

Product detailed description

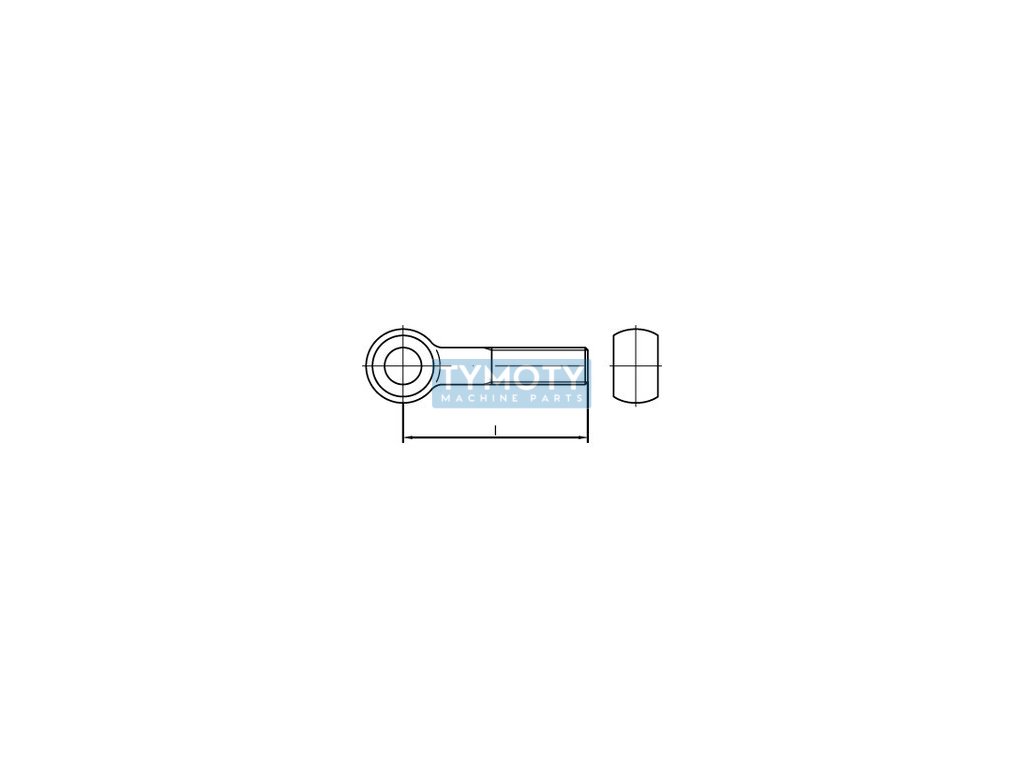

DIN 444B M8x120 eye bolt is a special type of fastener designed according to DIN 444B. This standard defines the design and material requirements for eye bolts, which are often used in mechanical engineering and construction to create swivel or suspension connections.

The bolt has a metric thread M8, which means that the outer diameter of the thread is 8 mm. The length of the bolt is 120 mm, with the thread running along the entire length of the bolt, which allows flexible use in various applications. The eye of the bolt is forged, which increases its strength and resistance to mechanical stress. This property is particularly important in applications where the bolt is exposed to dynamic loads or vibrations.

The material of the bolt is steel grade 4.6, which indicates that the minimum tensile strength is 400 MPa and the yield strength is 240 MPa. The surface treatment is electroplating, which provides corrosion protection and increases the life of the screw in environments with higher humidity or outdoors.

The DIN 444B M8x120 eye bolt is suitable for use in various industrial sectors where a reliable and secure connection is required. It is ideal for applications where swivel or hinged connections are required, while its design allows for easy installation and removal.
