Extension nut 3d DIN 6334 M6 |06| zinc

Product detailed description

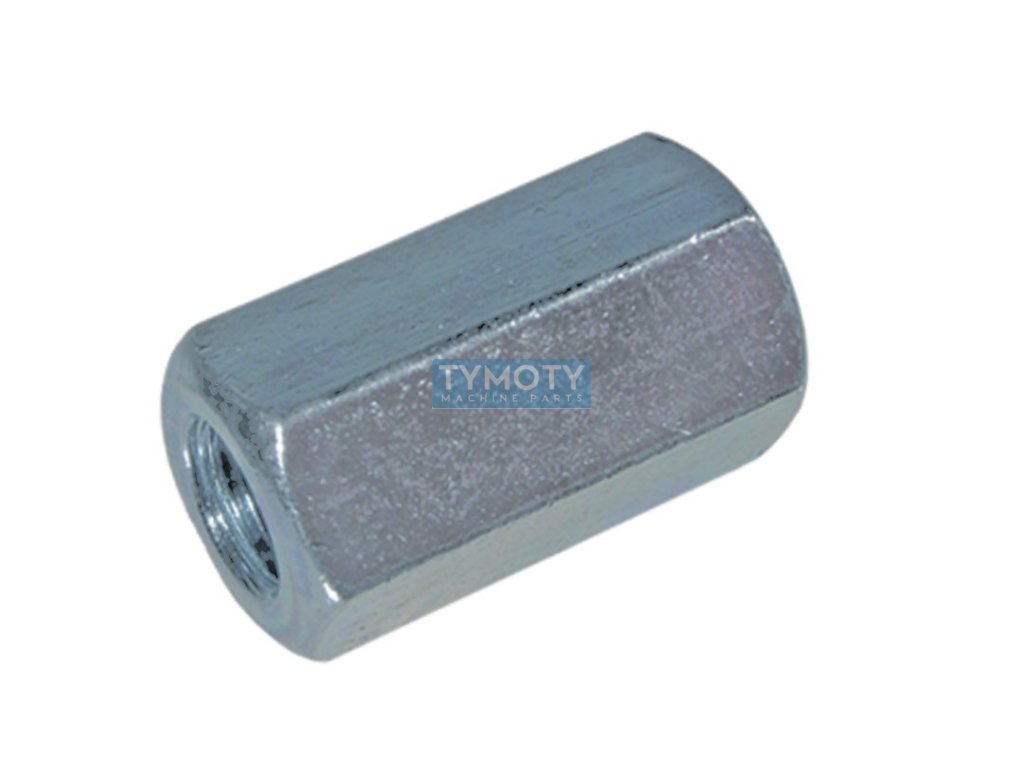

The 3d extension nut according to DIN 6334, also known as ČSN 021604, is a hexagonal nut designed to connect two threaded rods or screws in an axis. This component is made of steel and belongs to strength class 6, which guarantees sufficient mechanical resistance for common applications in assembly and adjustable joints.

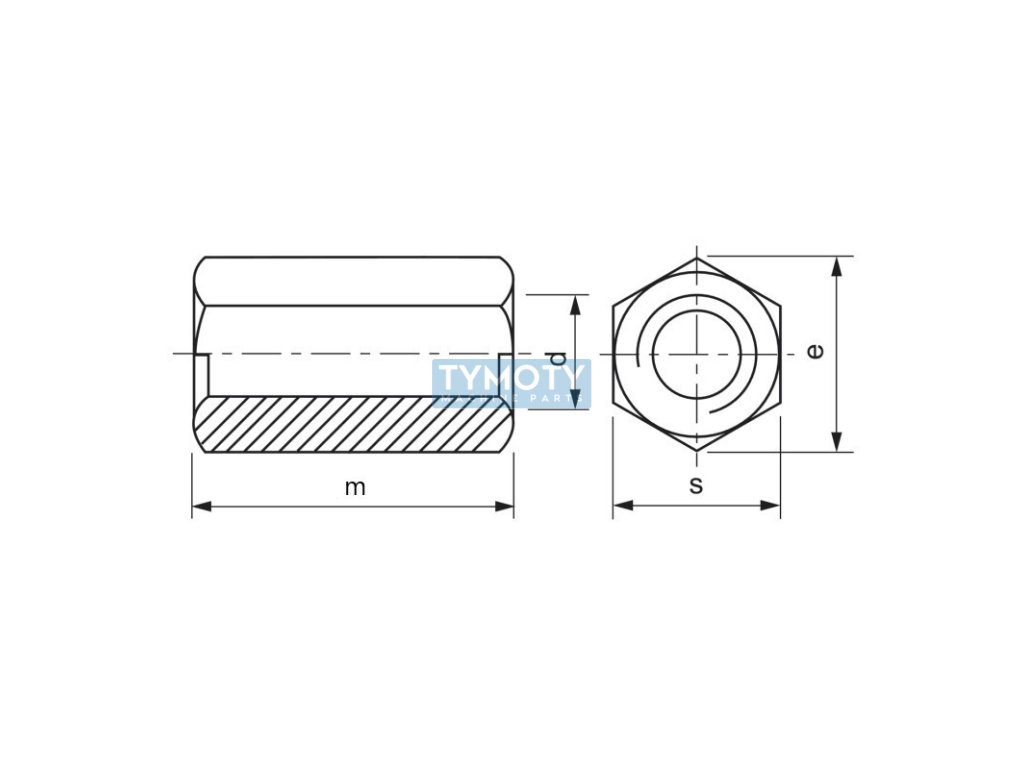

The nut has a metric M6 thread with a pitch of 1.00 mm, which is a standard thread for this type of component. The total height of the nut is 18 mm, which allows sufficient connection of the threaded parts. The width of the nut across the surfaces (s) is 10 mm, while the width across the edges (e) is 11.05 mm, which is typical for hexagonal nuts of this size.

The surface treatment is carried out by galvanizing, specifically white zinc, which provides protection against corrosion and increases the service life of the nut in an environment with normal humidity and moderate corrosiveness. This finish is suitable for applications where aesthetic value and protection against external influences are required.

The 3d DIN 6334 extension nut is ideal for use in various industrial sectors where it is necessary to extend a threaded connection or create an adjustable joint. Its design and material properties guarantee reliability and functionality in a wide range of applications.
