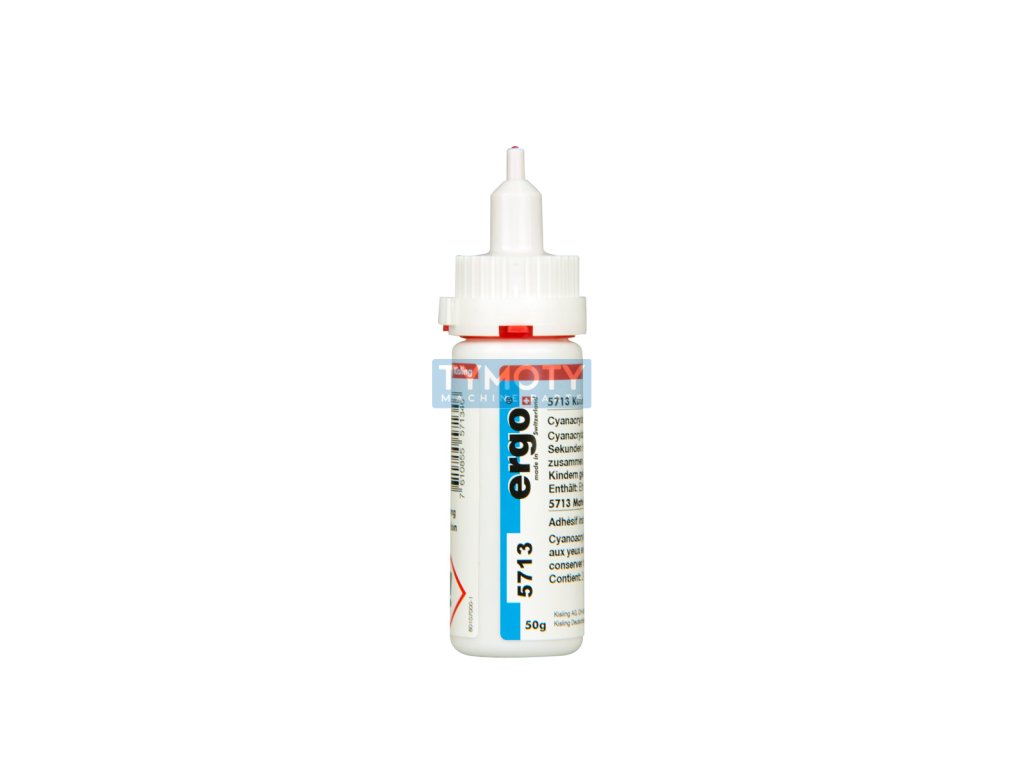

Ergo 5713 - 50 g instant glue for plastics

Product detailed description

Ergo 5713

Ergo 5713 is an excellent adhesive designed for combinations of materials with different coefficients of thermal expansion. Due to its viscosity, the product is also suitable for porous materials. It is ideal for applications where high strength and fast curing are required, even on materials that have different thermal properties. surfaces

Technical parameters:

• Chemical type: Cyanoacrylic acid ethyl ester
• Appearance: Clear/colorless
• Viscosity: 900 1 25°C
• Density: 1.08 g/cm? (DIN 51757)
• Flash point: 87°C (DIN 55213)
• Shelf life: 12 months at room temperature
• Fixation time for:
seconds

- SBR / SBR - rubber: 5 - 8 seconds

- Polycarbonate / Polycarbonate: 8 - 12 seconds

- EPDM / EPDM - rubber: < 10 seconds

• Final strength: 24 hours
• +80°C
• Melting point: +165°C

Application:

Ergo 5713 is ideal for use in the automotive industry, electronics, consumer goods manufacturing and other areas where it is necessary to bond materials with different temperature properties. Examples include bonding plastic parts, sealing rubber components and joining metal parts. on:

- ABS / ABS: Material failed (DIN EN 1465)

- SBR / SBR - rubber ?18mm: > 1800 N

- SBR / SBR 10 days/70°C: > 1600 N

- EPDM N

- EPDM / EPDM 10 days/70°C: > 200 N

Use for application:

For optimal application of the product, the use of dosing systems or application guns that allow precise application of the adhesive is recommended.

<>> Before application, ensure that the surfaces are clean, dry and free of grease.

2. Apply a thin layer of Ergo 5713 to one of the surfaces.

3. Join the parts to be glued and press firmly for the recommended fixation time.

4. Allow to cure for 24 hours to achieve maximum strength.

Packaging:

Ergo 5713 is available in various package sizes to suit the needs of different applications. Standard packaging includes bottles and tubes of various volumes.

Storage:

Store the product in a cool, dry place, away from direct sunlight. The optimum storage temperature is between 5°C and 25°C.

Technical data sheet or safety data sheet for Ergo 5713 on request.
